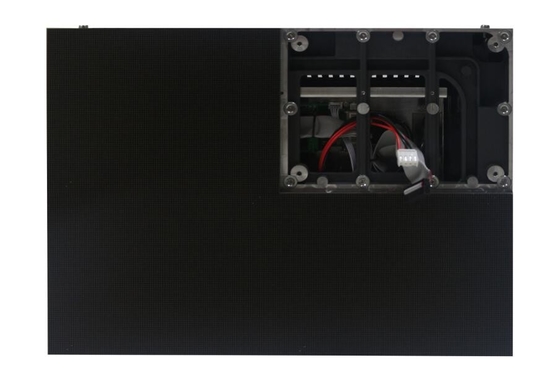

1010 Chip HD LED Display , LED TV Display Board Small Aluminum Cabinet

1010 Chip HD LED Display , LED TV Display Board Small Aluminum Cabinet

  • 1010 Chip HD LED Display , LED TV Display Board Small Aluminum Cabinet
  • 1010 Chip HD LED Display , LED TV Display Board Small Aluminum Cabinet
  • 1010 Chip HD LED Display , LED TV Display Board Small Aluminum Cabinet
  • 1010 Chip HD LED Display , LED TV Display Board Small Aluminum Cabinet
1010 Chip HD LED Display , LED TV Display Board Small Aluminum Cabinet
Product Details:
Place of Origin: Shenzhen,China
Brand Name: PASSION
Certification: CCC , CE , ROHS
Model Number: P1.92mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export Wooden Case & Flight Case
Delivery Time: 10 - 20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000SQM/Month
Contact Now
Detailed Product Description
Gray Scale: 16 Bits Cabinet Weight: 4.5Kg
Material: Aluminum Working Voltage: AC 100-240V
Pixel Failure: <0.0003 Viewing Angle(H/V): 140°/140°
Brightness: 800CD/sqm Name: HD LED Display
High Light:

high definition led display

,

full hd led screen

1010 Chip HD LED Display , LED TV Display Board Small Aluminum Cabinet



Specifications of HD LED Display:



1) Application: Indoor Fixed

2) Optional of Front service and rear service

3) Silent operation

4) Lightweight and seamless

5) High gray and low brightness

6) High color Fidelity

7) Wide viewing angle

8) Excellent thermal management

9) Low consumption

10) Quick lock system allowing fast rigging

11) Long life span time

12) Shorter Mean time bettwen failure



Spec Details of HD LED Display :



Model PHD -1.9
Pixel Pitch 1.92mm
Pixel Density 271232 px/m2
LED Type SMD1010
LED Configuration 1R1G1B
Cabinet Dimension 400*300mm
Cabinet Resolution 208*156px
Cabinet Weight 4.5kg
Cabinet Material die-casting
Ingress Protection (front/rear) IP40/IP21
Brightness >800nits
Viewing Angle(H/V) 140°/140°
Driving Method 1/26 Scan
Power Consumption(avg.) 220w/m2
Frame Refresh ≥ 60Hz
Data Refresh Rate ≥ 1500Hz
Gray Scale 16bit
Power Supply AC 110/220±10%       50~60Hz
Temperature (operating/storage) -20~50°C      -40~60°C
Humidity(operating/storage) 10%~90%RH     10%~85%RH
MTBF ≥1000 Hours
Life Span ≥50000 Hours
Pixel Failure <0.0003

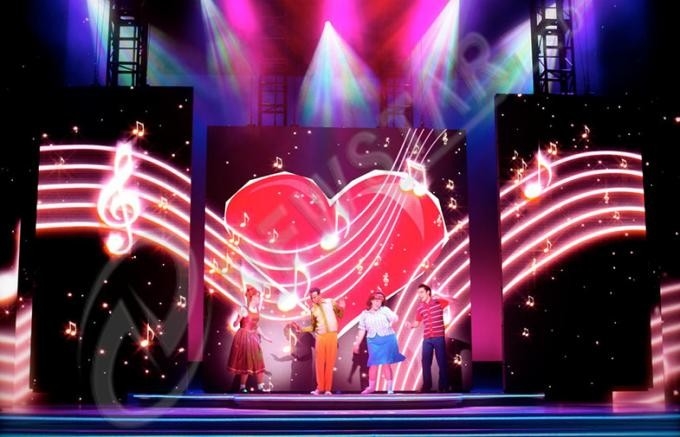

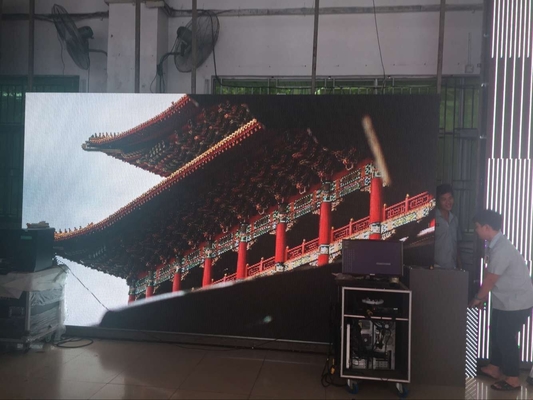

Application of HD LED Display:


PASSION LED P1.92 indoor HD LED display is also called HD LED TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 400 x 300mm, Die-casting aluminum structure with high precision and cooling effect.



Our advantages:

1. Rich experience: established in 2007; familiar with technical and material about LED display and LED light.
2. Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
3. Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
4. Good quality: stable performance .
5. Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
6. We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime, and we will inspect our products which have been sold periodically.
