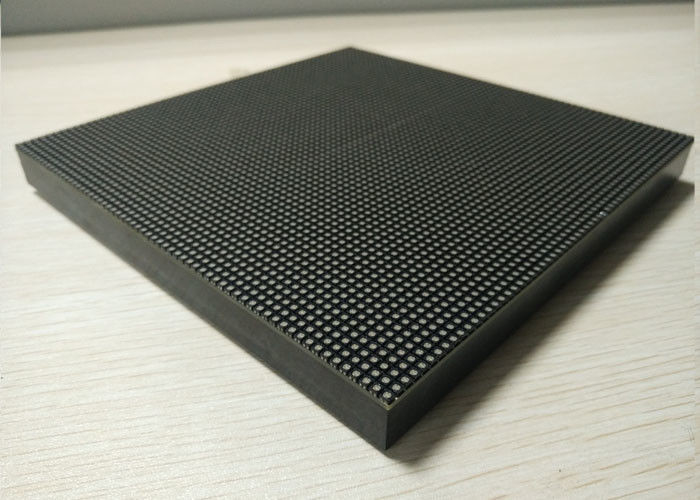

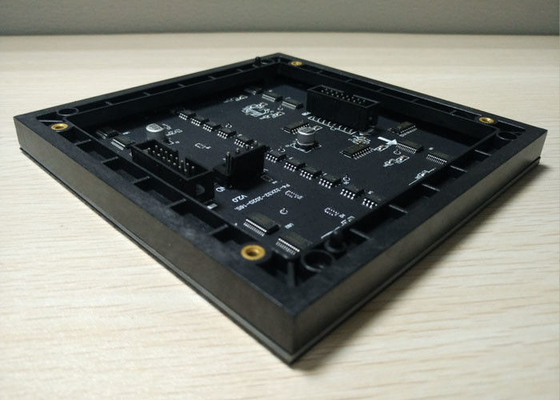

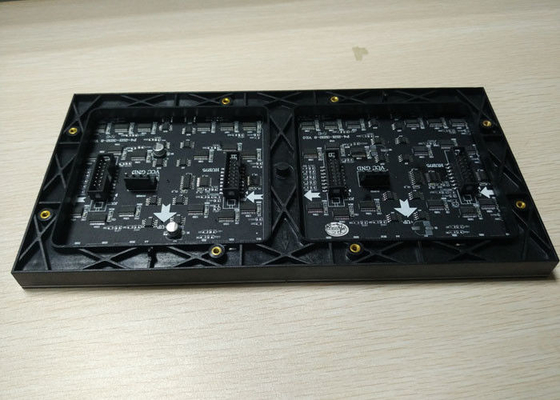

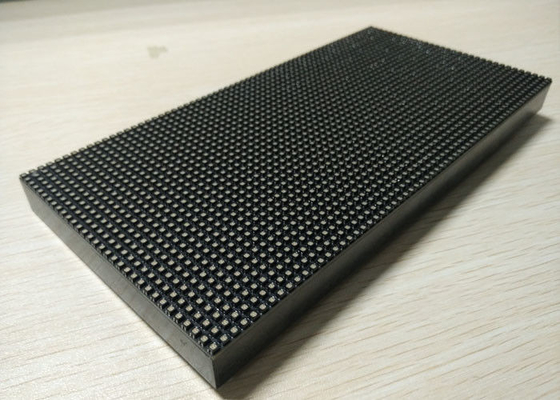

SMD 3 In 1 Dot Matrix LED Display Module Long Term Brightness High Contrast

SMD 3 In 1 Dot Matrix LED Display Module Long Term Brightness High Contrast

  • SMD 3 In 1 Dot Matrix LED Display Module Long Term Brightness High Contrast
  • SMD 3 In 1 Dot Matrix LED Display Module Long Term Brightness High Contrast
  • SMD 3 In 1 Dot Matrix LED Display Module Long Term Brightness High Contrast
  • SMD 3 In 1 Dot Matrix LED Display Module Long Term Brightness High Contrast
SMD 3 In 1 Dot Matrix LED Display Module Long Term Brightness High Contrast
Product Details:
Place of Origin: Shenzhen , China
Brand Name: PASSION LED
Certification: CE , RHos
Model Number: P3mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: 5 days sine the deposit arrival
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/month
Contact Now
Detailed Product Description
Unit Size: 192mm * 192mm Weight: 0.4Kg
LED Brand: NATIONSTAR LED Type: Iutdoor2121 SMD 3 In 1
Brightness: 1200CD/SQM Refresh Rate: 3840Hz
High Light:

led sign modules

,

led video wall module

SMD 3 In 1 Dot Matrix LED Display Module Long Term Brightness High Contrast

 Quick Details:


1. Smd2121 led lamp making the led screen more brightness
2. Factory wholesale directly, complete specifications, adequate inventory. For each model, 5000~10000pcs in stock
3. First-class Taiwan LED chip.Supplied by Epistar of Taiwan & other high strictly selected LED chip to ensure the long lifetime and high brightness
4. High Contrast ratio: above 2000:1, very high level to ensure a vivid image of our LED display screen system
5. Clear vivid image quality: more than 130 degree in horizontal and vertical to ensure your attracting more audience to get short ROI of your LED display screen's investment
6. Long-term Brightness: use high quality led chip and lamp to ensure led display can last 8 years with low Lumens depreciation
7. 2 years warranty for our products and life time maintance.


Features:


Stable & Good quality: The quality of all our raw materias is stable, and our strick production qualithy control. so the result is good and we also have a good reputation in this industry
Supporting many play files: videos, texts, pictures,graphics, PPT, Flashes and any sources
from TV,VCD,DVD and so on
HD & high refresh rate: the resolution for each led module is 64*64, so if the viewing
distance is 10 meters or more, the effect is good enough for this model.


Specifications:



Parameter Value
Physical Parameter Pixel Configuration 1R1G1B
Pixel Pitch (mm) 3
Pixel Matrix per m2 (dots) 111111
Pixel Matrix per Module 64*64
Pixel Matrix per Panel 192*192
Module Dimensions (L*W) / (mm) 192*192
Module Quality per Cabinet 4*4
Panel Dimension (L*W) / (mm) 768*768
Panel Material Iron / Aluminum
Panel Weight (Kg) 35
Electronic Parameter Color Grayscale (Bit) 16
Gray Scale per Color (Level) 16384
Refresh Rate (Hz) 3840
Driving Type 1/32
Frame Frequency (Hz) 50/60
Signal Transmission Distance (m) CAT5 cable:<100m;Single mode fiber:<10km
Optical Parameter Brightness (cd/m2) ≥1000
Color Temperature (K) 6500-7500
Color Contrast 4000:1
Optimal Horizontal Viewing Angle (°) 160
Optimal Vertical Viewing Angle 160
Electrical Parameter AC Input Voltage (V) 100~240
AC Input Frequency (Hz) 50/60
AC Input Power Maximum Value (W/m2) 800
AC Input Power Typical Value (W/m2) 250
Circumstance Parameter Storage Temperature (℃) -40~+60
Operating Temperature (℃) -20~+50
Storage Humidity (RH) 10%~90%
Operating Humidity (RH) 10%~90%
IP Rating (Front / Rear) IP43
Lifrtime Typical Value (Hrs) 100,000
Installation type Cabinet Installation Type Fixed
Maximum Number of Panel for Lifting 10



After-sale Service:
Installation servive, usually we don't take charge of installing overseas, but we can
provide technical support for you. if you need installation service, we can send our
technicians to your country, but the customers need take charge of the cost
Lifetime free maintenance and software upgrade service.
we will reponse you in 8 houres if you have any question about the led screen,
maintenance guidance and problem solution supplied in 48 hours.
Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again
Free technical training for how to use and handle the software.
Customer satisfaction tracking report.



SMD 3 In 1 Dot Matrix LED Display Module Long Term Brightness High Contrast 0
