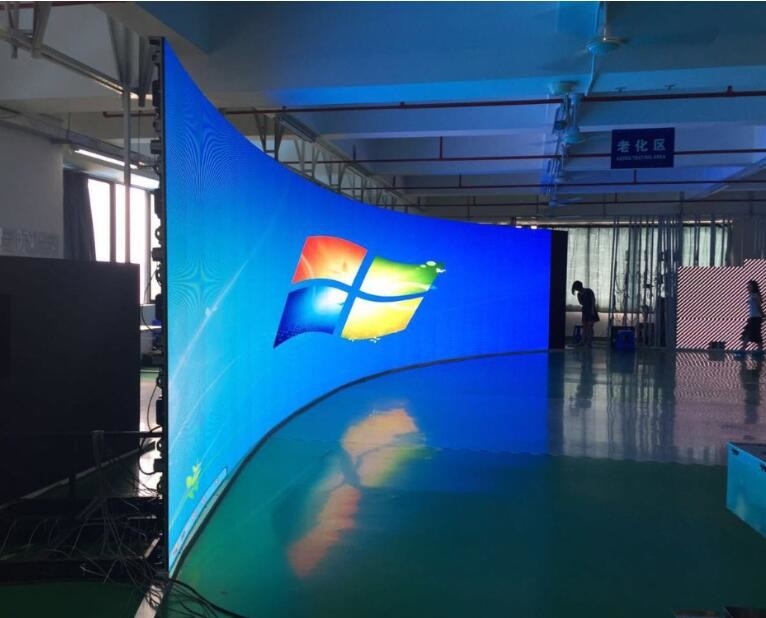

Media Advertising Curved LED Display 4500cd/M2 Brightness Die Casting Aluminum Cabinet

Media Advertising Curved LED Display 4500cd/M2 Brightness Die Casting Aluminum Cabinet

  • Media Advertising Curved LED Display 4500cd/M2 Brightness Die Casting Aluminum Cabinet
  • Media Advertising Curved LED Display 4500cd/M2 Brightness Die Casting Aluminum Cabinet
  • Media Advertising Curved LED Display 4500cd/M2 Brightness Die Casting Aluminum Cabinet
  • Media Advertising Curved LED Display 4500cd/M2 Brightness Die Casting Aluminum Cabinet
Media Advertising Curved LED Display 4500cd/M2 Brightness Die Casting Aluminum Cabinet
Product Details:
Place of Origin: Shenzhen, China
Brand Name: PASSION
Certification: CCC, CE, ROHS
Model Number: Indoor P3.91mm; P4.81mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotation
Packaging Details: flight case ( road case ) ; export wooden case
Delivery Time: 15 ~ 25 working days
Payment Terms: T/T , Western Union , MoneyGram
Supply Ability: 1000Sqm / Month
Contact Now
Detailed Product Description
Usage: Advertising Pixels: 3.91mm
Screen Dimension: Customized Size Tube Chip Color: Full Color
Display Function: Video Brightness: 4500 Cd/m2
Warranty: 2 Years Application: Adervertising
High Light:

circular led screen

,

360 degree led display

Media advertising curved led display, 360 led display flexible led video screen









Indoor slim rental P3.91, P4.81, P5.68, P5.95, P6.25, P8.928mm models (unit module size: 250mm * 250mm and unit cabinet size: 500mm * 500mm)
LED Module Pitch/mm PH3.91 PH4.81 PH5.68 PH5.95 PH6.25 PH8.928
Module size/mm 250*250 250*250 250*250 250*250 250*250 250*250
Density of pixel/(dots/m2) 65536 43264 30976 28224 25600 12544
Pixel composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Led encapsulation SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1
Resolution of module 64*64 52*52 44*44 42*42 40*40 28*28
LED Screen Optimum viewing distance 3~38M 3~38M 4~40M 4~40M 5~45M 7~50M
View angle H:±160°;V±120° H:±160°;V±120° H:±160°;V±120° H:±160°;V±120° H:±160°;V±120° H:±160°;V±120°
Average power consumption 600W/sqm 600W/sqm 400W/sqm 400W/sqm 300W/sqm 300W/sqm
Max power consumption 1600W/sqm 1600W/sqm 1000W/sqm 1000W/sqm 900W/sqm 700W/sqm
Module quantity 2* 2pcs
Size of cabinet/mm 500*500
Resolution of cabinet 128*128 104*104 88*88 84*84 80*80 56*56

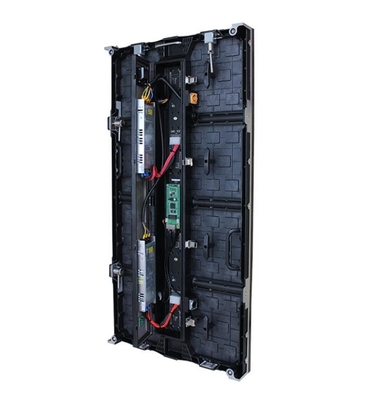

Cabinet Material die-casting aluminum cabinet
Weight of cabinet 7.5Kg
Driving method 1/16 scan constant current 1/13 scan constant current 1/11 scan constant current 1/7 scan constant current 1/10 scan constant current 1/7 scan constant current
Frame frequency / Hz/S ≥60
Refresh frequency/ Hz/S 800~2000
Brightness 1500cd/m2 2000cd/m2 1500cd/m2 1500cd/m2 1500cd/m2 2500cd/m2
Operating temperature –20C°~60C°
Storage temperature –40C°~70C°
Operation humidity 10%-90%
Storage humidity 10%-90%
IP Rrating (Front/Rear) IP54/ IP43
Working vlotage AC220V / AC110V ±10%
Grey scale/color depth displaying colors≥16.7M(synchronized); 14bits
Brightness adjustment 256 levels of each color(manually)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system linsn/Colorlight/Nova(sending card,receiving cards and Hubs)
Average of non-failure life ≥50,00h
Life span ≥100,000h
Functionaless dot rate ≤0.0001
Control distance CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km







  • Lightweight
  • Ultra thin
  • Easy to install
  • High IP
  • Easy to maintain
  • Noiseless
  • Ghost canceling
  • High refresh rate
  • Low brightness and high gray scale

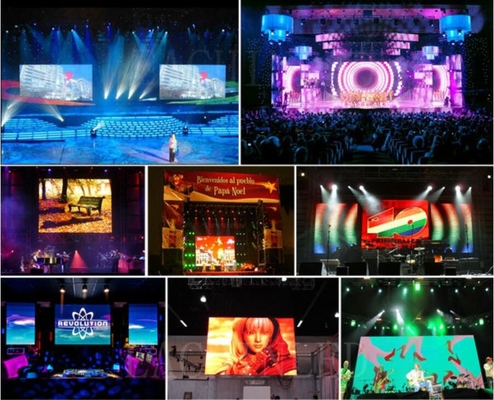

This series products are widely applied to stage show, concert, TV station, Brand presentation, stadium display screen and so on.
