|Place of Origin:||Shenzhen, China|
|Certification:||CCC, CE, ROHS|
|Model Number:||outdoor P10|
|Minimum Order Quantity:||10Sqm|
|Packaging Details:||flight case; export wooden case|
|Delivery Time:||15~25 working days|
|Payment Terms:||T/T, Western Union, MoneyGram|
|IP Rate:||65||Working Voltage:||AC100-240V|
|Cabinet Size:||640*640mm||Display Function:||Video|
indoor led screen rental,
large outdoor screen hire

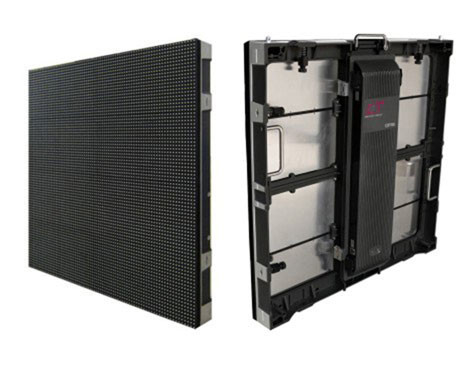

DIP346 Outdoor LED Display Rental , LED Advertising Displays AC220V Aluminum Structure
|Density of pixel/(dots/m2)||10000|
|Resolution of module||32*16|
|LED Screen||Optimum viewing distance||8~100M|
|Average power consumption||300W/sqm|
|Max power consumption||1000W/sqm|
|Module quantity||2 * 4pcs|
|Size of cabinet/mm||640*640|
|Resolution of cabinet||64*64|
|Cabinet Material||aluminum die-casting cabinet|
|Weight of cabinet||18Kg|
|Driving method||1/4scan constant current|
|Frame frequency / Hz/S||≥60|
|Refresh frequency / Hz/S||600~2000|
|IP Rrating (Front/Rear)||IP65/ IP54|
|Working vlotage||AC220V / AC110V ±10%|
|Grey scale/color depth||displaying colors≥16.7M(synchronized); 14bits|
|Brightness adjustment||256 levels of each color(manually)|
|Input signal||RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc|
|Control system||linsn/Colorlight/Nova(sending card,receiving cards and Hubs)|
|Average of non-failure life||≥50,00h|
|Functionaless dot rate||≤0.0001|
|Control distance||CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km|
1. Usage : Different Outdoor event. such as party, Outdoor event, wedding etc.
2. Installation : Hanging, standing on floor.
3. Control : Contolled by your computer,own equipment.;.
4. Connection : Connected to your computer .Camera,DVD or own equipment.
5. Maintenance: Enough Free spare parts for replacement.

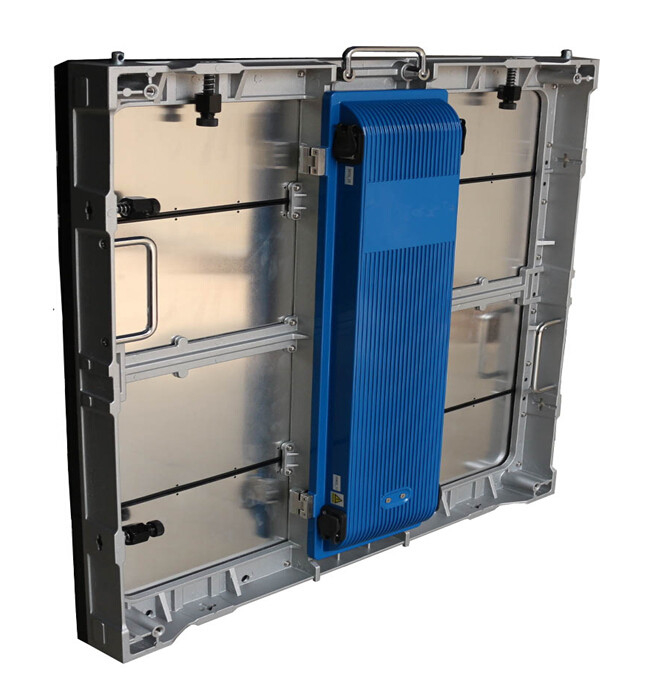

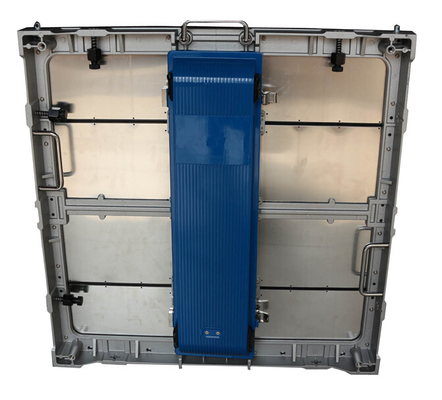

Lightweight The aluminum die-casting technology makes the single cabinet as light as 9KG.
Ultra thin The thinnest point of the cabinet is only 75mm, making it easily to be fitted in small room.
Easy to install No need of other tools. It takes 15 minutes for 2workers to finished 30 sqm installation.
High IP The IP65 insures the reliable operation in severe environment.
Easy to maintain No need to disassemble the whole screen for maintenance. Each component can be detach individually for that purpose.
Noiseless The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
Ghost canceling Exquisite and clear picture quality with no ghost. Both upstream and downstream ghosts can be automatically canceled.
High refresh rate 38400Hz refresh rate to ensure the picture wrinkle-less, lineless and stable.
Low brightness and high gray scale 14Bit-16Bit gray scale to bring excellent performance when brightness reduced to 20%.
This series products are widely applied to stage show, concert, TV station, Brand presentation, stadium display screen and so on
