Product Details:
Place of Origin: Shenzhen , China
Brand Name: PASSION
Certification: CCC , CE , ROHS
Model Number: P1.56mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export Wooden Case & Flight Case
Delivery Time: 10 - 20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000SQM/Month
Contact Now
Detailed Product Description
Features: Thin And Light Weight Referesh Rate: 3840Hz
Unit Size: 600mm * 337.5mm Grey Scale: 16 Bits
Working Voltage: AC 100-240V Material: Die Casting Aluminum
Lifespan:: 100000 Hours Brightness: 800CD/sqm
High Light:

high resolution led display

,

full hd led screen

Soft Images Full HD LED Display High Refresh Rate Remove Ghost Without Trailing​





Application of HD LED Display:

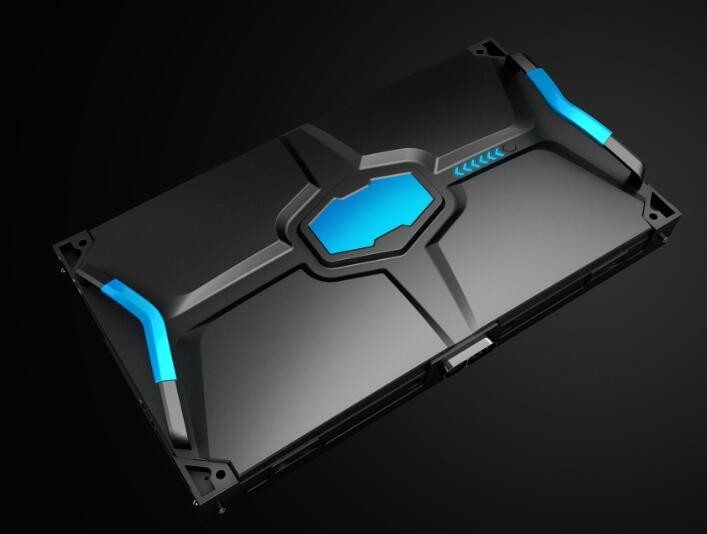

PASSION LED P1.56 indoor HD LED display is also called HD LED TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 600 x 337.5mm, Die-casting aluminum structure with high precision and cooling effect.





Pixel Pitch: PH1.56mm


Cabinet Size: 600 x 337.5 x 80mm

1. Locating slot work with dowel pin to ensure good flatness
2. 16bit gray scale processing, color expression more naturally
3. Gapless installation, wider viewing angle, good color uniformity
4. Soft images,green and environmental protection
5. High refresh rate, remove ghost without trailing





Natural Color
16bits Gray processing techology,with 65536 grayscale,excessive nature,according to the video picture of extremely fine texture,looked more comfortable.



16:9 Design and Good Uniformity

16:9 design. Cabinet's 16:9 resolution is specialized for command center. Perfect replacement for LCD display.
Die cast aluminum cabinet, guarantee you a flat and seamless screen.
Good uniformity. Dot-to-dot correction technology provide you pure image with great gradation.


High definition display
It delivers a truly amazing pciture in every details with extrodinary pixels producing an image that is HD quality in an LED screen

Ultra wide angle of view
Ultra wide angle of view,from any perspective images are clear natural,to experience the great subversive viewing experience

Top-lever brightness control
Expansion of brightness adjustment range increase the brightness and contrast ratio of picture. This function can fully perform delicate change of brightness,so it can present a vivid clear picture to audience.




Detail Specifications of the HD LED Display:



Pixel Configuration

SMD1010

Pixel pitch(mm)

1.56mm

Pixel density(dots/m2)

409600

Module resolution(W×H)

128×108

Module size (mm)

200(W)×168.75(H)

Module weight (kg)

0.8

Maximum power consumption of the module(W)

40

Module of cabinet (W×H)

3×2

Cabinet resolution(W×H)

384×216

Cabinet size (mm)

600(W)×337.5(H)×80(D)

Cabinet area(m2)

0.2

Cabinet weight (kg)

9.8

Cabinet level up degree(mm)

≤0.2

Maintenance mode

Front/Rear

Cabinet raw material

Die-casting aluminum

Single-point brightness correction

YES

Single - point color correction

YES

White Balance Brightness (nits)

≥800(6500K)

Color Temperature (K)

3200—9300 (adjustable)

Viewing Angle (Horizontal / Vertical)

160/160

Deviation of center distance of light - emitting

<3%

Brightness / chromaticity uniformity

≥97%

Contrast

4000:1

Peak power consumption (W / m2)

800

Average power consumption (W / m2)

250

Power supply requirements

AC90~264V,frequency 47-63(Hz)

Frame rate (Hz)

50&60

Drive mode

Constant drive,1/27

Grayscale level

65536

Refresh rate (Hz)

≥3840

Number of color processing bits

16bit

Video playback capabilities

2KHD,4KHD

Operating temperature / humidity range (℃ / RH)

-20 – 60 / 10%-85%RH

Storage temperature / humidity range (℃ / RH)

-20 – 60 / 10%-85%RH

Applicable standards

CCC,CE,RHos
