Indoor Stage LED Screen Hanging P3.9mm Aluminum Curved High Refresh Rate

Indoor Stage LED Screen Hanging P3.9mm Aluminum Curved High Refresh Rate

Indoor Stage LED Screen Hanging P3.9mm Aluminum Curved High Refresh Rate
Indoor Stage LED Screen Hanging P3.9mm Aluminum Curved High Refresh Rate
Indoor Stage LED Screen Hanging P3.9mm Aluminum Curved High Refresh Rate
Product Details:
Place of Origin: SHENZHEN , CHINA
Brand Name: PASSION
Certification: CE ROHS
Model Number: P2.9mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotioation
Price: Negotiation
Packaging Details: Flight Case & Wooden Case
Delivery Time: 15 ~ 20 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000 square meter per month
Contact Now
Detailed Product Description
Other Name: Stage LED Screen Driving IC: MBI5153
Display Function: Video Brightness: 1500CD/sqm
Refresh Rate: 3840Hz IP Rate: 43
Material: Aluminum Unit Cabinet Size: 500mm * 1000mm
High Light:

stadium led display

,

led backdrop screen

Indoor Stage LED Screen Hanging P3.9mm Aluminum Curved High Refresh Rate





Stage LED Screen, also called led screen, led video wall, or led sign, with its unique advantages, has gradually replaced the traditional billboards, light boxes, etc. LED display advertising has become a new force in the media industry.

  • Our screens are modular allowing them to be built into almost any shape and size.
  • Our screens are also able to be stacked off the floor or hung from a structure above. This allows for our screens to be used in most indoor and outdoor locations.
  • With IP65 certification, each module is dust and weatherproof allowing the screen to be used in harsh outdoor environments.





Specifications of Stage LED Screen:



Pixel Pitch 3.91mm
Pixel Density 65536dots/sqm
Color Configuration 1R1G1B
LED Package SMD2121
Module Size 250mm x 250mm
Module Resolution 64dots x 64dots
Drive Mode 1/16 Scan

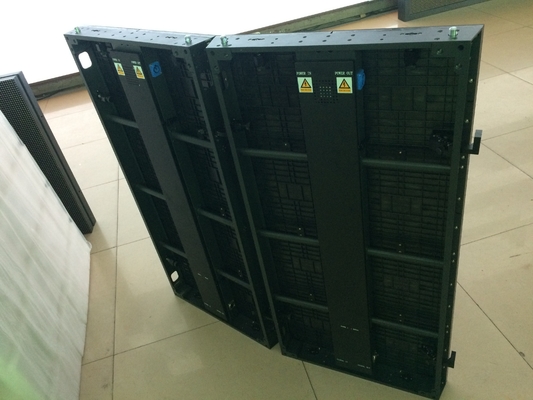

Cabinet Material Die casting Aluminum
Led Color Black
Standard Cabinet Size 500mm x 500mm
Cabinet Weight 7KG
Brightness ≥1300 cd/sqm, adjustable by software
Viewing Distance 4m-40m
Viewing Angle H: 140°; V:120°
Refresh Rate 1500HZ, adjustable by software
Frame Rate 120frame/s
Grey Scale 16.7M colors(Synchronized)
Color Temperature R.G.B brightness 256 level adjustable
Power Input AC110V/ 220V ±10%, 50HZ
Max Power Consumption 800W/sqm
Ave. Power Consumption 300W/sqm
Storage Temperature -30℃~+70℃
Working Temperature -20℃~+50℃
Blind Spot Rate <1/10000
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof Level IP43
Operating Humidity 10%~90% RH
Control Method Synchronous, Asynchronous, 3G,WIFI,USB
PC Display Resolution 1280x1024
Control PC With DVI Graphic card
Operating System Win 98, Win2000, XP, Win7, Win8,Win10
Video Signal Mode RF, S-Video, RGB, RGBHV, YUV, YC etc
Certificate CE, RoHS



Applications of Stage LED Screen

Business Organizations Supermarket, large-scale shopping malls, star-rated hotels, travel agencies
Financial Organizations Banks, insurance companies, post offices, hospital, schools
Public Places Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms
Entertainments Movie theaters, clubs, stages





Description of Stage LED Screen :



1. Super Light and Thin

8KG/panel with a depth of 70mm which is half of the depth of traditional LED screen,saving space and transportation cost.

2. High Refresh Rate
Refresh Rate≥3840, offering impressive visual effect.

3. Noiseless
Free of fans and air conditions, excluding noise and reducing power consumption.

4. Fine and Smooth Picture
Drive IC of high refresh rate and high grey scale to ensure stable picture and better visual effect of the screen.The latest horizontal-blanking circuit applied to completely eliminate phenomenon of blanking and smear.

5. Seamless Splicing
High conformity of picture without gap and information missing, realizing a seamless splicing display.

6. Fast Installation and Dismantlement.





Packaging & Shipping


We can use fly case or wooden case to pack the goods



Indoor Stage LED Screen Hanging P3.9mm Aluminum Curved High Refresh Rate 0
