P2.6mm Indoor Rental LED Display Screen Slim Cost Effective 1920 Refresh Rate

P2.6mm Indoor Rental LED Display Screen Slim Cost Effective 1920 Refresh Rate

  • P2.6mm Indoor Rental LED Display Screen Slim Cost Effective 1920 Refresh Rate
  • P2.6mm Indoor Rental LED Display Screen Slim Cost Effective 1920 Refresh Rate
  • P2.6mm Indoor Rental LED Display Screen Slim Cost Effective 1920 Refresh Rate
  • P2.6mm Indoor Rental LED Display Screen Slim Cost Effective 1920 Refresh Rate
P2.6mm Indoor Rental LED Display Screen Slim Cost Effective 1920 Refresh Rate
Product Details:
Place of Origin: Shenzhen, China
Brand Name: PASSION
Certification: CCC, CE, ROHS
Model Number: PR - P2.6
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: flight case; export wooden case
Delivery Time: 15~25 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000Sqm/month
Contact Now
Detailed Product Description
Usage: Indoor LED Brand: NATIONSTAR
Weight: 26Kg/SQM Working Voltage: AC100V - 240V
Cabinet Size: 500mm * 500mm Display Function: Video
Brightness: 1000CD/sqm Refresh Rate: 3840Hz
High Light:

event screen hire

,

indoor led screen rental

P2.6mm Indoor Rental LED Display Screen Slim Cost Effective 1920 Refresh Rate


Indoor Rental LED Display Advantages:

  • Supports two sizes of mixed and misaligned stitching
  • Ultra clear ultra thin:Weighs only 8kg/panel (500×500mm)&14.5kg/panel (500×1000mm),FCL thickness is only 60mm

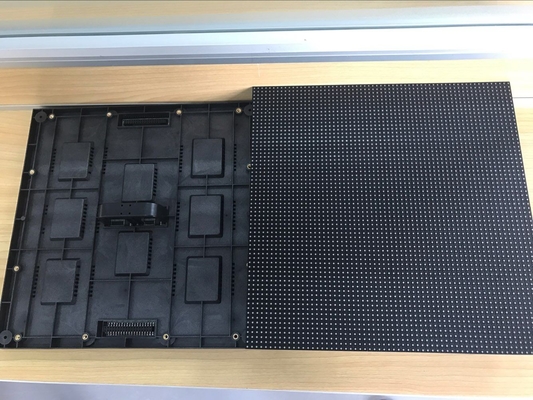

  • Stable performance: board-to-board plug-in design, no cable transfer, reducing the transfer failure rate
  • Support floor tile function
  • High cost performance
  • Equipped with exclusive quick assembly components for easy large screen assembly
  • Gray scale reaches 14bit, refresh rate reaches 1920-3840HZ , Good picture consistency
  • Compatible with front and rear maintenance mode, optional for pre-magnetic maintenance and post-screw maintenanceSelf-locking connection for second speed installation
  • Stable performance, delicate and soft display effect, using accessories made by well-known large enterprises
  • Support +/-10°curved large screen assembly

Main Features of Indoor Rental LED Display:

1. Quick Set up & Dismantle.
2. Lightweight 6kg and slim 78mm.
3. High definition impress your events.
4. High cost-effective compared with 500X500mm cabinet.
5. Angle adjustment optional max 15degree (positive or negative)


Detail Specifications of Indoor Rental LED Display

ParameterValue
Physical ParameterPixel Configuration1R1G1B
Pixel Pitch (mm)2.604
Pixel Matrix per m2 (dots)147456
Pixel Matrix per Module96*96
Pixel Matrix per Panel192*192
Module Dimensions (L*W) / (mm)250*250
Module Quality per Cabinet2*2
Panel Dimension (L*W*H) / (mm)500*500*78
Panel MaterialDie-Casting Aluminum
Panel Weight (Kg)7.6
Electronic ParameterColor Grayscale (Bit)16
Gray Scale per Color (Level)65536
Refresh Rate (Hz)1920
Driving Type1/32
Frame Frequency (Hz)50/60
Signal Transmission Distance (m)CAT5 cable:<100m;Single mode fiber:<10km
Optical ParameterBrightness (cd/m2)≥600
Color Temperature (K)6500-7500
Color Contrast4000:1
Optimal Horizontal Viewing Angle (°)160
Optimal Vertical Viewing Angle160
Electrical ParameterAC Input Voltage (V)100~240
AC Input Frequency (Hz)50/60
AC Input Power Maximum Value (W/m2)800
AC Input Power Typical Value (W/m2)300
Circumstance ParameterStorage Temperature (℃)-40~+60
Operating Temperature (℃)-20~+50
Storage Humidity (RH)10%~90%
Operating Humidity (RH)10%~90%
IP Rating (Front / Rear)IP63 / IP54
Lifrtime Typical Value (Hrs)100,000
Installation typeCabinet Installation TypeRental
Maximum Number of Panel for Lifting12




FAQ :

How to Select a Led Display

  • Location-indoor,outdoor or semi-outdoor

Location is the most important factors for selecting the correct LED display.Different type of location such as rooftop,large billboards and stage backdrops or requires front access for servicing will require different led cabinets and modules.


  • Size,Shape and Pitch

Size:Once you have measured the height, width and depth of the space and availability, then you want to make sure the selected LED size (and number of cabinets, height, width & depth) can be accommodated.
Shape:determines if curve or column or flat screens are required.
Pitch:determines the contents of the display and the range of viewing.



  • LED Facing Direction

Outdoor LEDs facing east or direct west sunlight will require higher lamination than those facing north or south. The larger outdoor billboards and configurations must be equipped with automatic light sensors to automatically adjust brightness in reaction to sunlight and cloud covers.

  • Selecting Your LED Supplier

A reliable and high quality LED display can introduce your business to your market and clients, changes your message in time to deliver timely information and helps inspire and build your customers trust in your organisation, products and services. Following is a list of key factors to consider;
Manufacturer and Manufacturer’s qualification and expertise
Manufacturer’s investment in technology,design and development
Manufacturer’s commitment to design,manufacturing and support
Manufacturer’s technology partners
Qualified and Certified local re-sellers network

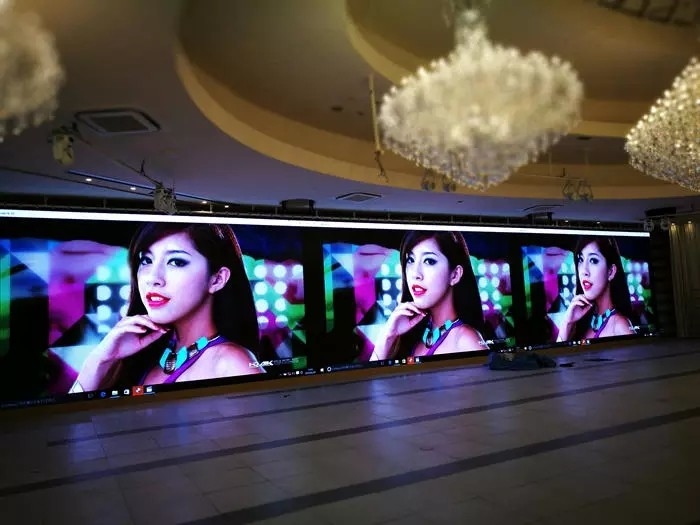

This series products are widely applied to stage show, concert, TV station, Brand presentation, stadium display screen and so on
