Place of Origin: | China |
Brand Name: | PASSION LED |
Certification: | CE, ROSH |
Model Number: | P4 |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | flght case and wooden case |
Delivery Time: | 20~25 working days |
Payment Terms: | Western Union, MoneyGram, T/T, L/C |
Supply Ability: | 5000 Square meter + per month |
Usage: | Indoor | Pixel Pitch: | 4mm |
---|---|---|---|
LED Chip: | Nationstar | Tube Chip Cplor: | Full Color |
Brightness: | 6000cd/sqm | Display Function: | Video |
High Light: | led perimeter advertising boards,led perimeter board |

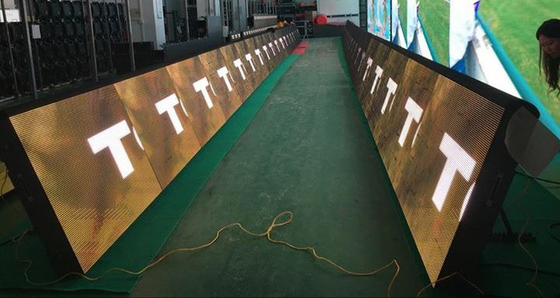

Indoor Stadium Perimeter LED Display Space Saving Easy Maintenance 4mm Pixel Pitch
1. Portable die-casting Aluminum design of the panel,easy to install or disassemble.
2. Creative innovations to replace traditional IRON structure outdoor permanent LED screen With one more holder to hold up the screen, it can be widely used for outdoor applications.
3. Solid & light;
The cabinet is made of aluminum die-casting, very strong and light, only 35kg/sqm, while normal iron cabinet is 55kg/sqm;
4. Unique aluminum module frame, good for heat sink;
5. Multi-function display;
The back bracket is removable, means that you can easily take off bracket in 3 seconds, then it turns normal display for fixed installation or rental business;
6. Different pitch display share one same cabinet frame;
pitch 2.6mm, 3.2mm, 5.33mm, 6.4mm, 8mm, 10.66mm, 12.8mm, 16mm share one cabinet frame of 1024*768mm, in case in future of update, you only need to change modules, so it helps you save money;
7. Easy maintenance;
Front access module is available, so you can take off module easily;
Pure white color display always available, due to we use top rate Leds;
Quick Detail:
1. Save maintenance space
2. Clear vivid image quality
3. Easy Installation & Using
4.Convenient servicing
5. Waterproof Level: IP31
FAQ:
Q1. What about the delivery lead time?
A: About 22 days after receiving payment.
Q2. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-8 days to arrive. Airline and sea shipping also optional. And you can also designate shipping companies.
Q3. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the solution and places deposits for formal order.
Fourthly We arrange the production.
Q4. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Specifications
Indoor LED Display Technical Parameter
Model No. | PIP-P4 |
Pixel Pitch | 4mm |
Module Size | 128mm ×128mm |
Module Resolution(Pixel) | 32dots ×32dots |
Pixel Density | 62,500 dots/㎡ |
LED Type | SMD 3 in 1 |
Pixel Configuration | 1R1G1B |
Wavelength (R.G.B) | R:625±2nm G:525±2nm B:470±2nm |
Drive Mode | Dynamic 1/16 Duty Constant Current |
Cabinet Size | 640 ×512 ×135mm |
Cabinet Resolution | 160dots ×128dots |
Brightness | ≥ 1200cd/㎡ |
Contrast | ≥ 2000:1 |
Viewing Angle | 140°(Horizontal )/140°(Vertical ) |
Minimum Viewing Distance | 3m |
Grey Scale | 10bits/1024levels |
Color Capability | 16,777,216 |
Color Temperature | 5000-9300K |
Maximum Power Consumption | 800W/㎡ |
Average Power consumption | 300W/㎡ |
Working Voltage | AC 220V/110V s±15% 50-60 HZ |
Frame Frequency | 60-85HZ |
Refresh Frequency | 240-1000HZ |
Brightness Correction | Pixel, Module, Cabinet Correction |
Operating Temperature | Static:-40°C~+85°C Working:-20°C~+60°C |
Operating Humidity | 10-90% RH |
LED Lifespan | 100,000 hours |
MTBF | ≥50,000 hours |
Computer Operation System | Win 98/ Win XP/ Win 2000 |
Video Signal Input | RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
Video Signal Output | RF, S-Video, GB, RGBHV, YUV, YC etc. |
Graphics Card | DVI Graphics Card |
Control Distance | UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
Control System | LINSN OR DB-STAR |
Software | LED studio 10.0 |
Waterproof Level | IP31 |
Installation | Wall mount, hung and stand structure |
Out of Control Rate |
0.01 % |
Indoor LED Display Module
Module Size (W*H) | 128mm*128mm | Pixel Configuration | 1R1G1B |
Pixel Pitch | 4mm | Resolution (W*H) | 32 dots*32 dots |
Pixel Density | 62,500 dots/㎡ | LED Type | SMD2121 |
Indoor LED Display Cabinet
Cabinet Size (W*H) | 640mm ×512mm x135mm | Module Qty | 20 pcs |
Cabinet Resolution (W*H) | 160 dots*128 dots | Cabinet Pixel | 20,480 |
Average Power Consumption | 300w/㎡ | Max Consumption | 800 W/㎡ |
Applications

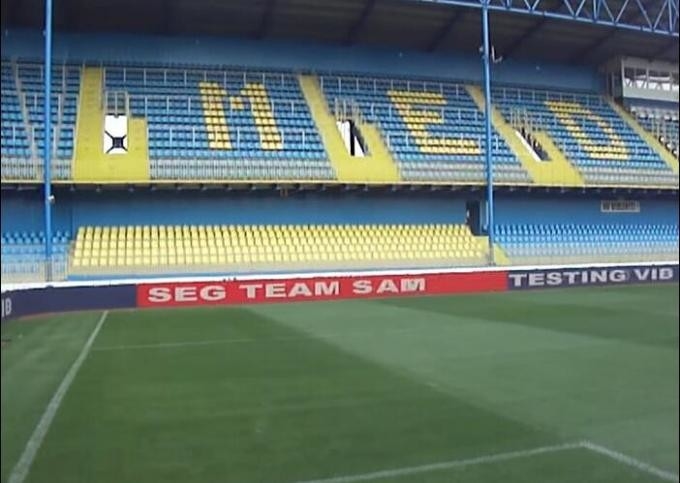

Stadium inside and outside such as football, baseball, basketball match etc.
