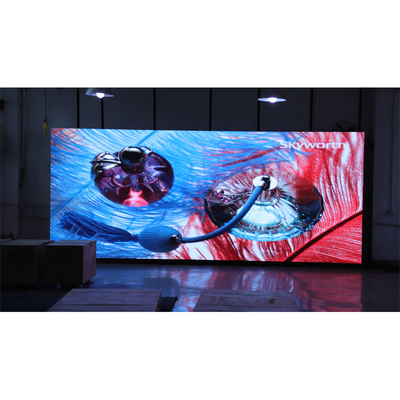

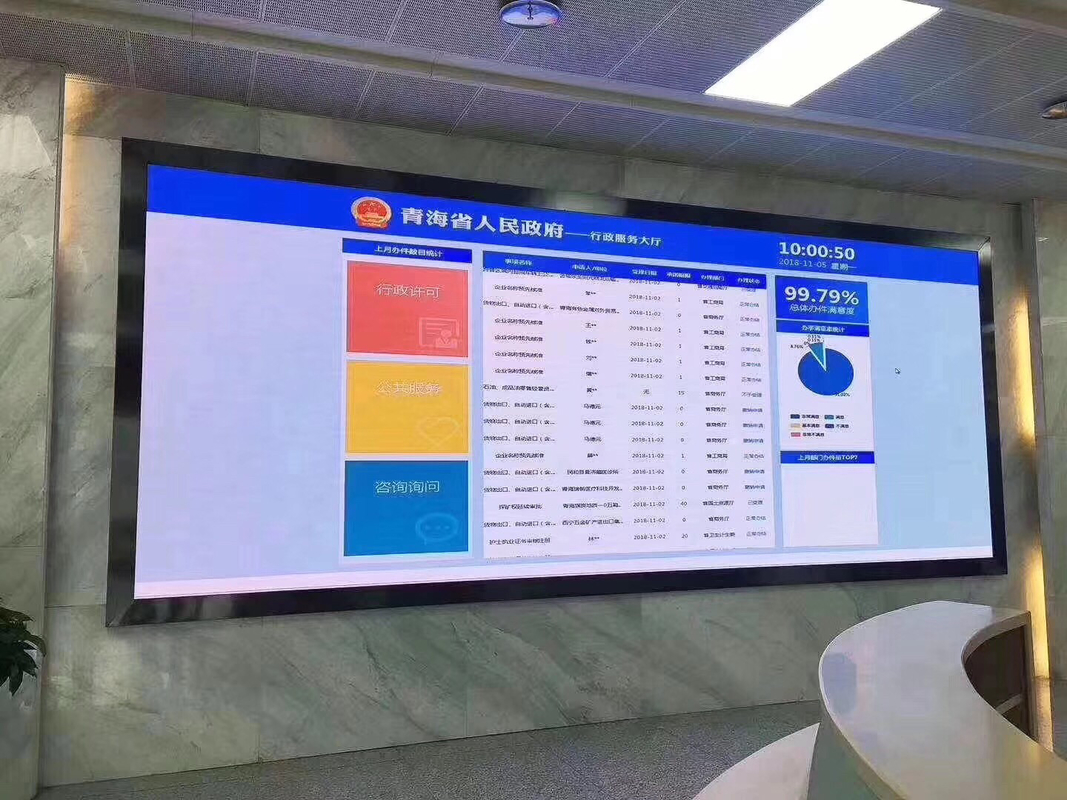

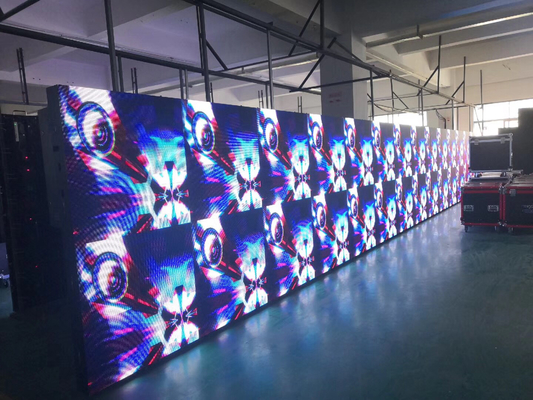

Advertising Media Outdoor LED Signs Video Wall , Full Color Led Video Board

Advertising Media Outdoor LED Signs Video Wall , Full Color Led Video Board

    • Advertising Media Outdoor LED Signs Video Wall , Full Color Led Video Board
    • Advertising Media Outdoor LED Signs Video Wall , Full Color Led Video Board
    • Advertising Media Outdoor LED Signs Video Wall , Full Color Led Video Board
  • Advertising Media Outdoor LED Signs Video Wall , Full Color Led Video Board

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: PASSION
    Certification: CCC , CE , RHos
    Model Number: PH10mm

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Flight case or Fumigation-Free Wooden Case
    Delivery Time: 15~20 Working days
    Payment Terms: L, T/T, Western Union, MoneyGram
    Supply Ability: 2000SQM/Month
    Contact Now
    Detailed Product Description
    Driving IC: MBI5124 LED Brand: EPISTAR
    Color: Full Color Brightness: 8000CD/SQM
    Display Function: Video, Text, Picture Control System: Linsn / Nova(sending Card,receiving Cards And Hubs)
    High Light:

    outdoor led advertising signs

    ,

    full color programmable led signs

    Full Color Led Video Board Signs Advertising Media Outdoor LED Signs Video Wall



    Main advantages:


    1. New mask design makes LED light almost zero reflection, which ensures the screen displaying effect;


    2. The cabinet of unit modules adopts to high-temperature spraying technology, the antirust function is greatly improved;

    3. Module surface flatness ± 0.2mm, the entire screen has good flatness;


    4.High uniformity display color;

    5. For improving the service life, PCB is made by wave soldering process with the green oxygen isolation layer, which prevents the line of moisture and oxidation.

    6. Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate;


    7. Using fishbone bus line greatly reduces the contact problem;

    8. IP65 grade for high performance waterproof and dustproof capability;


    9. -25°C – 65°Cworking environment for outdoor display, adapted to the harsh environment.





    Specifications:



                              Outdoor Fixed Installed Giant Advertising Media LED Displays
    Main Pitch/mm P8 P10 P16

    Module size/mm 256x128 160x160 256x256
    Density of pixel/(dots/m2) 15,625 10,000 3,906
    Pixel composition 1R1G1B 1R1G1B 1R1G1B
    Led encapsulation SMD3535 DIP346 DIP346
    Resolution of module 32x16 16X16 16X16
    Optimum viewing distance ≥6 ≥10 ≥15
    View angle / ° 140H,120V 110 H,60 V 110 H,60 V
    Average power consumption/W/M2 500 450 350
    Max power consumption/W/M2 1000 950 700
    Size of cabinet/mm 1024X768 960X960 1024X1024
    Resolution of cabinet 128X96 96X96 64x64
    Driving method 1/4 scan constant current 1/4 scan constant current Static constant current
    Refresh rate Hz/S ≥1200 ≥1200 ≥1200
    Luminance of white balance ≥6000 nits ≥7500 nits ≥7000 nits
    Operation of Environmental Temperature/℃ below 30 to above 50
    IP rating Front,IP65;Rear,IP43
    Working voltage 110-220 VAC/+/- 10%
    Grey scale/color displaying colors≥16.7M(synchronized)
    Brightness adjustment 4096 levels of each color(manually),100 levels of each color(automatically)
    Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
    Control system Linsn / Nova(sending card,receiving cards and Hubs)
    Average of non-failure life >50,00h
    Life span >100,000h
    Functionless dot rate <0.0001





    Applications:


    Commercial advertising: Square, Road side, High way, Airport, Wharf, Hotel, Restaurant etc







    Package



    Flight case and Fumigation-Free wooden case



    Advertising Media Outdoor LED Signs Video Wall , Full Color Led Video Board 0







    Advertising Media Outdoor LED Signs Video Wall , Full Color Led Video Board 1
