Place of Origin: | Shenzhen, China |
Brand Name: | PASSION |
Certification: | CE ,ROSH |
Model Number: | P4mm |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | wooden case |
Delivery Time: | 15 days after deposit payment arrival |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 2000SQm/Month |
Also Called: | Outdoor Advertising LED Display | Materail: | Aluminum |
---|---|---|---|
Life Span: | 100000H | Working Voltage: | AC100-240V |
Screen Weight: | 40Kg/SQM | Driving IC: | MBI5124 |
Brightness: | 5000CD/sqm | Refresh Rate: | 3840Hz |
High Light: | large outdoor led display screens,outdoor digital advertising screens |

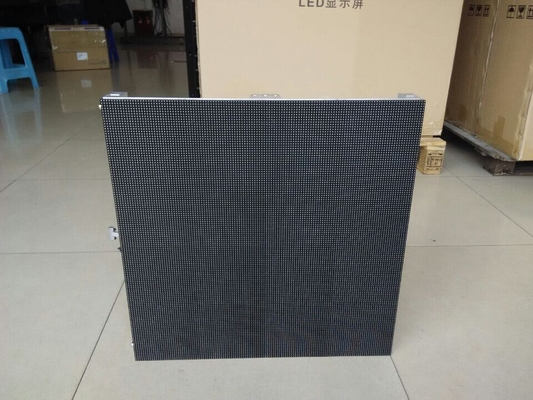

P4 High Resolution Outdoor Advertising LED Display 512mm * 512mm 16 Bits and 3840 Hz Rated
Why Choose Us?
Product features of Outdoor Advertising LED Display

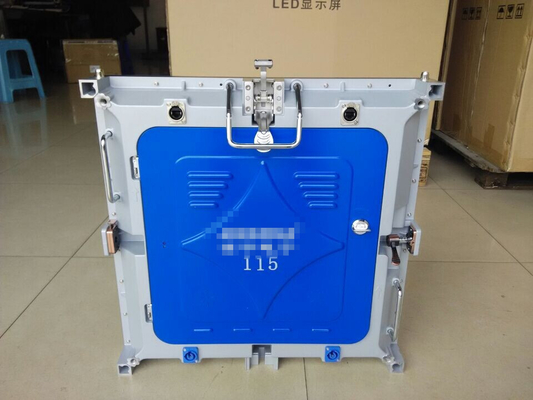

1. CNC + Die Casting process cabinets
The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.
2. Super Slim
The thickness is 80mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.
3. Light Weight
The weight of full panel is only 6.5KG, can be easily hanging up by one person, with only two person can finish 12sqm led screen installation in 30minutes, which much saves your time and labor cost.
4. Convenient and Fast Installation
We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.
Technical parameter:
Model | PFO-P4 | PFO-P6 |
PIxel Pitch | 4mm | 6mm |
Pixel Density | 62500 pixels/m² | 27778 pixels/m² |
LED Type | SMD1921 | SMD3535 |
LED Configuration | 1R1G1B | 1R1G1B |
Cabinet Dimension | 512*512mm | 960*960mm |
Cabinet Resolution | 128*128pixels | 160*160 pixels |
Cabinet Weight | 46kg | 55kg |
Cabinet Material | Aluminum | Aluminum |
Ingress Protection | IP65/IP54 | IP65/IP54 |
Brightness | >5000nits | >6500nits |
Viewing Angle(H/V) | 140°/140° | 140°/140° |
Driving Method | 1/8 Scan | 1/6 Scan |
Frame Refresh | ≥60HZ | ≥60HZ |
Data Refresh Rate | >3840HZ | >3840HZ |
Shipment of Outdoor Advertising LED Display :
Business term: FOB Shenzhen
Payment term: T/T, usually 30% down payment before production, 70% balance to be paid before delivery, it can also change according to total quantity.
Delivery time: 15~20 days.
Shipping port: Shenzhen, Mainland China
MOQ: LED Screen 1 sqm / LED module 1pcs
Guarantee: Two years quality guarantee

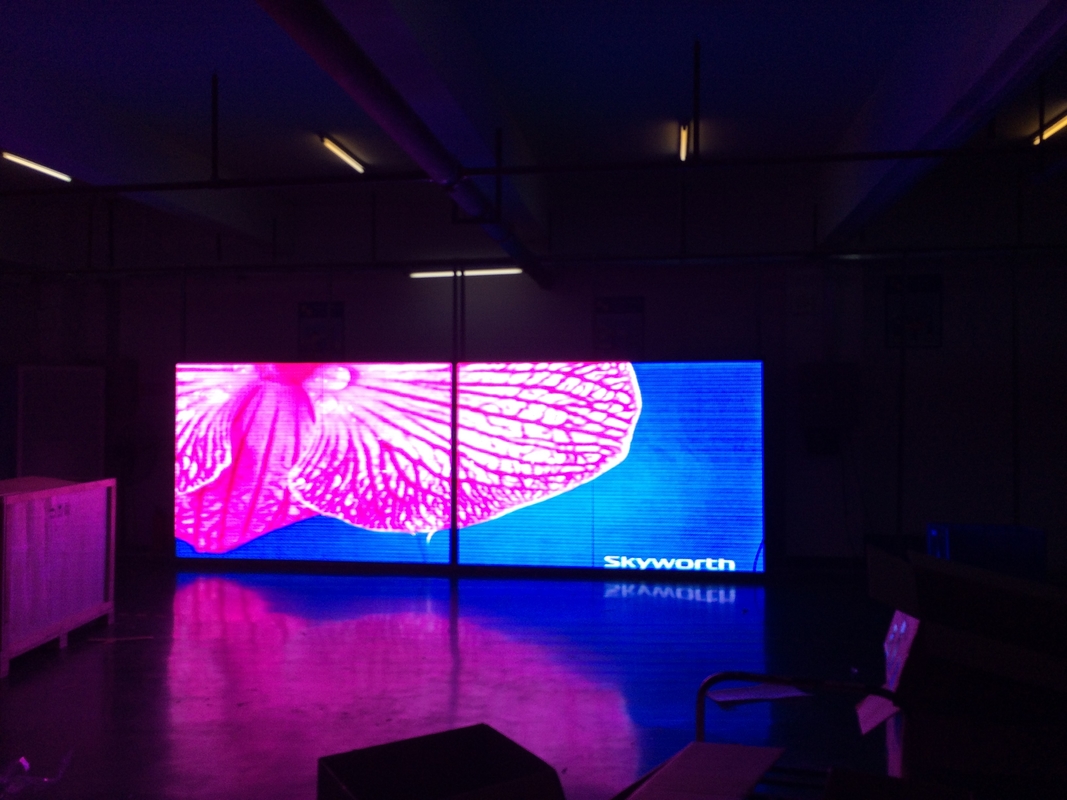

Application Site of Outdoor Advertising LED Display :
Outdoor fixed LED display is widely used in government plazas, recreational plazas, large-scale entertainment plazas etc.
