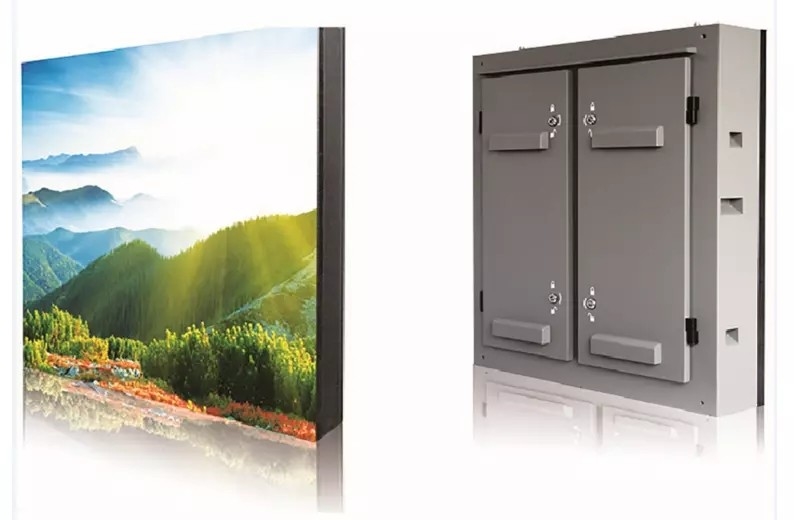

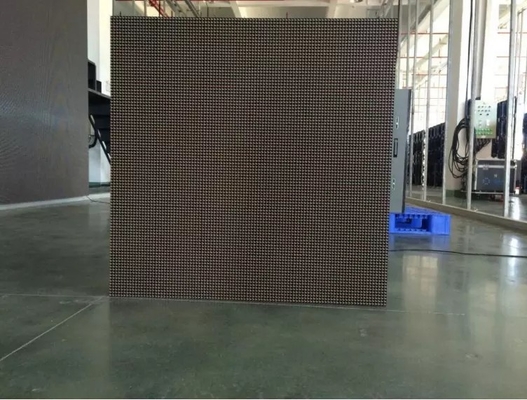

10mm Pitch Programmable LED Display Board With MBI5024 IC NATIONSTAR LED

10mm Pitch Programmable LED Display Board With MBI5024 IC NATIONSTAR LED

  • 10mm Pitch Programmable LED Display Board With MBI5024 IC NATIONSTAR LED
  • 10mm Pitch Programmable LED Display Board With MBI5024 IC NATIONSTAR LED
10mm Pitch Programmable LED Display Board With MBI5024 IC NATIONSTAR LED
Product Details:
Place of Origin: Shenzhen, China
Brand Name: PASSION
Certification: CCC, CE, ROHS
Model Number: P10mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight case, export wooden case
Delivery Time: 10-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000sqm/month
Contact Now
Detailed Product Description
Usage: Outdoor Meterial: Iron
Cabinet Size: 960mm * 960mm Refresh Rate: 3840
Module Size: 320mm * 160mm Working Voltage: AC 100 ~ 240V
High Light:

digital electronics board

,

outdoor led display board

10mm Pitch Programmable LED Display Board With MBI5024 IC NATIONSTAR LED




Features

1. With the best LED industrial waterproof and ultraviolet-proof SMD in 1 technology, confirm the super wide view angle and better enness surface and stability
2. RGB high gray processing to show any real color
3. Support point correction function, ensure the consistency of the color and the brightness during the usage
4. Accurate,shortcut flexile installation, can be applied to any different environment
5. With protection grade of IP65,suit to outdoor raining weather
6. With professional aviation plugs as connector,ensure the quality and safety
7. Complete series, accept customized, cabinet sizes can be customized as different request from projects


Quick Detail:

1. NATIASTAR LED chip;
2. MBI5024 driver IC;
3. R9 GB9×12;
4. 2 years quality guarantee;
5. 9,216 pixels for each LED box;
6. Spare parts provided.

Main features of PASSION HD LED screen:
1. SMD3 in 1 technology widens the viewing angle greatly and makes the screen's surface even flatter.
2. Flatness tolerance of the whole screen is < 0.15 mm, which thoroughly eliminates the mosaic effect.
3. The screen displays delicate and vivid pictures through synchronous adjustment of color and brightness.
4. High contrast and high refresh rate help the LED display's image be rendered without any delay, and without leaving any kind of streaks or trails.
5. Compatible with a variety of signal source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
6. Professional aviation packaging protects the control equipment extremely well
7. Light, ultra-thin display cabinet's total weight is only 35kg.
8. Standard cabinet size is 960mm * 960mm.
9. Dustproof design, the screen is rated IP65.


Application of HD LED screen:
Indoor HD led display is also called led TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 400 x 300mm, Die-casting aluminum structure with high precision and cooling effect.


Product Specifications:


ParameterValue
Physical ParameterPixel Configuration1R1G1B
Pixel Pitch (mm)10
Pixel Matrix per m2 (dots)10000
Pixel Matrix per Module32*16
Pixel Matrix per Panel96*96
Module Dimensions (L*W) / (mm)320*160
Module Quality per Cabinet3*6
Panel Dimension (L*W) / (mm)960*960
Panel MaterialAluminum
Panel Weight (Kg)35
Electronic ParameterColor Grayscale (Bit)16
Gray Scale per Color (Level)16384
Refresh Rate (Hz)1280
Driving Type1/4
Frame Frequency (Hz)50/60
Signal Transmission Distance (m)CAT5 cable:<100m;Single mode fiber:<10km
Optical ParameterBrightness (cd/m2)≥6500
Color Temperature (K)6500-7500
Color Contrast4000:1
Optimal Horizontal Viewing Angle (°)160
Optimal Vertical Viewing Angle160
Electrical ParameterAC Input Voltage (V)100~240
AC Input Frequency (Hz)50/60
AC Input Power Maximum Value (W/m2)1200
AC Input Power Typical Value (W/m2)400
Circumstance ParameterStorage Temperature (℃)-40~+60
Operating Temperature (℃)-20~+50
Storage Humidity (RH)10%~90%
Operating Humidity (RH)10%~90%
IP Rating (Front / Rear)IP65 / IP63
Lifrtime Typical Value (Hrs)100,000
Installation typeCabinet Installation TypeFixed
Maximum Number of Panel for Lifting6
