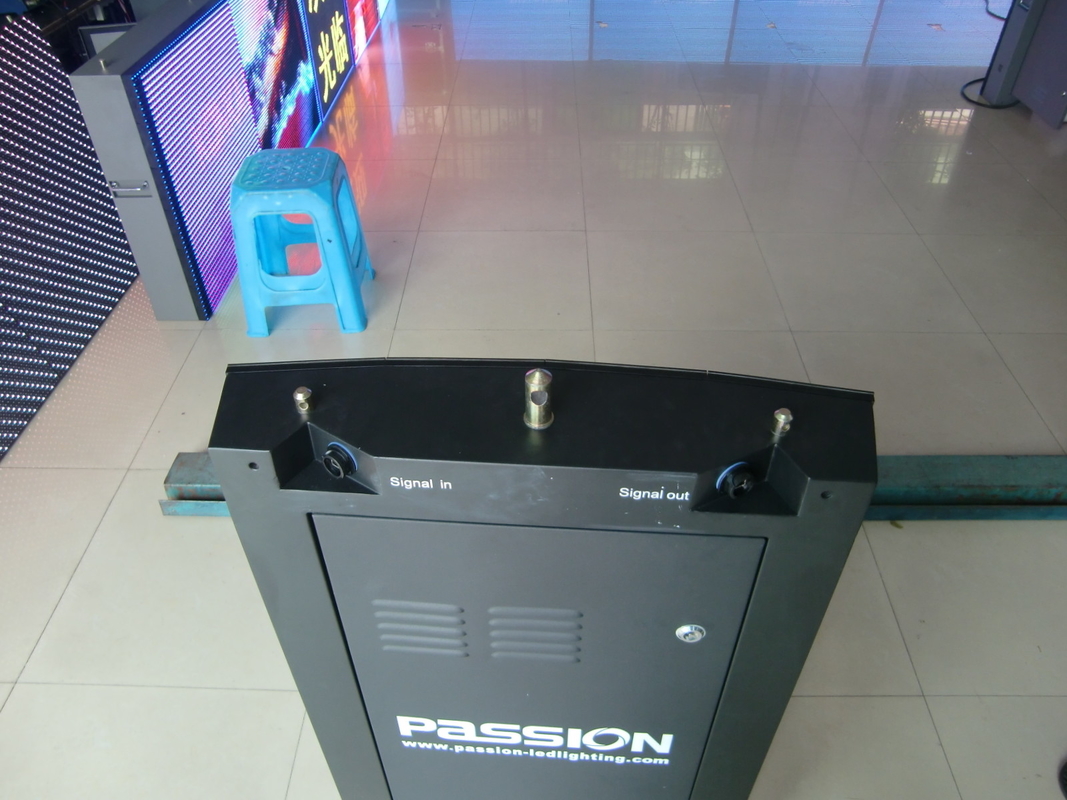

P10 Digital LED Sign Board , Outdoor Advertising LED Display Hanging Up Installation

P10 Digital LED Sign Board , Outdoor Advertising LED Display Hanging Up Installation

  • P10 Digital LED Sign Board , Outdoor Advertising LED Display Hanging Up Installation
  • P10 Digital LED Sign Board , Outdoor Advertising LED Display Hanging Up Installation
  • P10 Digital LED Sign Board , Outdoor Advertising LED Display Hanging Up Installation
  • P10 Digital LED Sign Board , Outdoor Advertising LED Display Hanging Up Installation
P10 Digital LED Sign Board , Outdoor Advertising LED Display Hanging Up Installation
Product Details:
Place of Origin: Shenzhen, China
Brand Name: PASSION
Certification: CCC, CE, ROHS
Model Number: P10mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight case, export wooden case
Delivery Time: 10-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000sqm/month
Contact Now
Detailed Product Description
Usage: Outdoor Meterial: Iron
Cabinet Size: 960mm * 960mm Refresh Rate: 3840
Module Size: 320mm * 160mm Working Voltage: AC 100 ~ 240V
High Light:

digital advertising board

,

outdoor led display board

P10 Digital LED Sign Board , Outdoor Advertising LED Display Hanging Up Installation​





Main features of PASSION HD LED screen:

1. SMD3 in 1 technology widens the viewing angle greatly and makes the screen's surface even flatter.
2. Flatness tolerance of the whole screen is < 0.15 mm, which thoroughly eliminates the mosaic effect.
3. The screen displays delicate and vivid pictures through synchronous adjustment of color and brightness.
4. High contrast and high refresh rate help the LED display's image be rendered without any delay, and without leaving any kind of streaks or trails.
5. Compatible with a variety of signal source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
6. Professional aviation packaging protects the control equipment extremely well
7. Light, ultra-thin display cabinet's total weight is only 35kg.
8. Standard cabinet size is 960mm * 960mm.
9. Dustproof design, the screen is rated IP65.





Pre-sale service


1. Reply enquiries in 24 hours.


2. Market research and forecast for customer.


3. Provide professional solutions based on customer's requirement.


4. Offer sample and all document as customers required.


5. Other services, such as factory visiting and so on.





Application of HD LED screen:
Indoor HD led display is also called led TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 400 x 300mm, Die-casting aluminum structure with high precision and cooling effect.





Product Specifications:



Parameter Value
Physical Parameter Pixel Configuration 1R1G1B
Pixel Pitch (mm) 10
Pixel Matrix per m2 (dots) 10000
Pixel Matrix per Module 32*16
Pixel Matrix per Panel 96*96
Module Dimensions (L*W) / (mm) 320*160
Module Quality per Cabinet 3*6
Panel Dimension (L*W) / (mm) 960*960
Panel Material Aluminum
Panel Weight (Kg) 35
Electronic Parameter Color Grayscale (Bit) 16
Gray Scale per Color (Level) 16384
Refresh Rate (Hz) 1280
Driving Type 1/4
Frame Frequency (Hz) 50/60
Signal Transmission Distance (m) CAT5 cable:<100m;Single mode fiber:<10km
Optical Parameter Brightness (cd/m2) ≥6500
Color Temperature (K) 6500-7500
Color Contrast 4000:1
Optimal Horizontal Viewing Angle (°) 160
Optimal Vertical Viewing Angle 160
Electrical Parameter AC Input Voltage (V) 100~240
AC Input Frequency (Hz) 50/60
AC Input Power Maximum Value (W/m2) 1200
AC Input Power Typical Value (W/m2) 400
Circumstance Parameter Storage Temperature (℃) -40~+60
Operating Temperature (℃) -20~+50
Storage Humidity (RH) 10%~90%
Operating Humidity (RH) 10%~90%
IP Rating (Front / Rear) IP65 / IP63
Lifrtime Typical Value (Hrs) 100,000
Installation type Cabinet Installation Type Fixed
Maximum Number of Panel for Lifting 6





P10 Digital LED Sign Board , Outdoor Advertising LED Display Hanging Up Installation 0
