Flat Indoor LED Video Wall 15kg Lightweight High Contrast Screen Non Trails

Flat Indoor LED Video Wall 15kg Lightweight High Contrast Screen Non Trails

  • Flat Indoor LED Video Wall 15kg Lightweight High Contrast Screen Non Trails
  • Flat Indoor LED Video Wall 15kg Lightweight High Contrast Screen Non Trails
  • Flat Indoor LED Video Wall 15kg Lightweight High Contrast Screen Non Trails
Flat Indoor LED Video Wall 15kg Lightweight High Contrast Screen Non Trails
Product Details:
Place of Origin: Shenzhen, China
Brand Name: PASSION
Certification: CCC, CE, ROHS
Model Number: P4mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight case, export wooden case
Delivery Time: 10-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000sqm/month
Contact Now
Detailed Product Description
Usage: Indoor Meterial: Aluminum
Cabinet Size: 768mm * 768mm Refresh Rate: 3840
Working Voltage: AC 100 ~ 240V Brightness: 2000CD/sqm
High Light:

led curtain video wall

,

rgb led video wall

Flat Indoor LED Video Wall 15kg Lightweight High Contrast Screen Non Trails





Main features of PASSION HD LED screen:

1. SMD3 in 1 technology widens the viewing angle greatly and makes the screen's surface even flatter.
2. Flatness tolerance of the whole screen is < 0.15 mm, which thoroughly eliminates the mosaic effect.
3. The screen displays delicate and vivid pictures through synchronous adjustment of color and brightness.
4. High contrast and high refresh rate help the LED display's image be rendered without any delay, and without leaving any kind of streaks or trails.
5. Compatible with a variety of signal source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
6. Professional aviation packaging protects the control equipment extremely well
7. Light, ultra-thin display cabinet's total weight is only 15kg.
8. Standard cabinet size is 768mm*768mm.
9. Dustproof design, the screen is rated IP43.





Features



1. Aluminum structure: Light weight, excellent cooling effect



2. High definition, and good stability



3. Good color uniformity andhigh contrast ratio with black led lamp



4. Wide viewing angle: 140° on both vertical and Horizontal directions

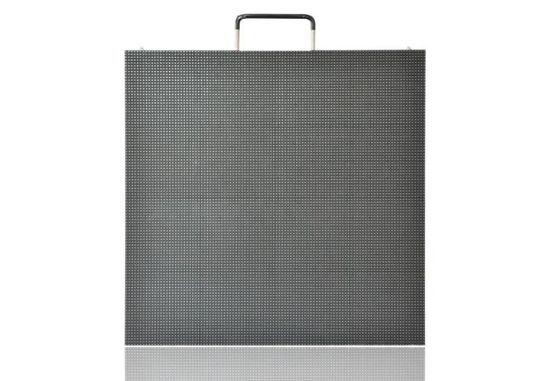

5. Portable with handle and side locks design on each panel





Adantages



(1) Front service structure design help to save a lot of time to​ do maintenance



(2) Four heat dissipation places help to acheive a good​ cooling effect



(3) With slim body design hich can save a lot of​ assemble room



(4) Customized cabinet size enable your choice freely.





Product Specifications:



Parameter Value
Physical Parameter Pixel Configuration 1R1G1B
Pixel Pitch (mm) 4
Pixel Matrix per m2 (dots) 62500
Pixel Matrix per Module 64*32
Pixel Matrix per Panel 192*192
Module Dimensions (L*W) / (mm) 256*128
Module Quality per Cabinet 3*6
Panel Dimension (L*W) / (mm) 768*768
Panel Material Iron / Aluminum
Panel Weight (Kg) 15Kg
Electronic Parameter Color Grayscale (Bit) 14
Gray Scale per Color (Level) 16384
Refresh Rate (Hz) 1280
Driving Type 1/16
Frame Frequency (Hz) 50/60
Signal Transmission Distance (m) CAT5 cable:<100m;Single mode fiber:<10km
Optical Parameter Brightness (cd/m2) ≥2000
Color Temperature (K) 6500-7500
Color Contrast 4000:1
Optimal Horizontal Viewing Angle (°) 160
Optimal Vertical Viewing Angle 160
Electrical Parameter AC Input Voltage (V) 100~240
AC Input Frequency (Hz) 50/60
AC Input Power Maximum Value (W/m2) 900
AC Input Power Typical Value (W/m2) 300
Circumstance Parameter Storage Temperature (℃) -40~+60
Operating Temperature (℃) -20~+50
Storage Humidity (RH) 10%~90%
Operating Humidity (RH) 10%~90%
IP Rating (Front / Rear) IP43 / IP31
Lifrtime Typical Value (Hrs) 100,000
Installation type Cabinet Installation Type Fixed
Maximum Number of Panel for Lifting 8





Application of HD LED screen:
Indoor HD led display is also called led TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 400 x 300mm, Die-casting aluminum structure with high precision and cooling effect.



Flat Indoor LED Video Wall 15kg Lightweight High Contrast Screen Non Trails 0
