Waterproof Sport Perimeter LED Display High Brightness With 10mm Pixel Pitch Module

Waterproof Sport Perimeter LED Display High Brightness With 10mm Pixel Pitch Module

    • Waterproof Sport Perimeter LED Display High Brightness With 10mm Pixel Pitch Module
    • Waterproof Sport Perimeter LED Display High Brightness With 10mm Pixel Pitch Module
    • Waterproof Sport Perimeter LED Display High Brightness With 10mm Pixel Pitch Module
  • Waterproof Sport Perimeter LED Display High Brightness With 10mm Pixel Pitch Module

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: PASSION LED
    Certification: CE, ROSH
    Model Number: P10

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: flight case and wooden case
    Delivery Time: 20~25 working days
    Payment Terms: Western Union, MoneyGram, T/T, L/C
    Supply Ability: 5000 Square meter + per month
    Contact Now
    Detailed Product Description
    Advantage: Waterproof Pixel Pitch: 10mm
    LED Chip: Nationstar Tube Chip Cplor: Full Color
    Application: Indoor Gymnasiums Display Function: Video
    High Light:

    led perimeter advertising boards

    ,

    stadium perimeter led display

    Water Proof High Brightness Sport Perimeter LED Display With 10mm Pixel Pitch Module



    Applications



    Stadium inside and outside such as football, baseball, basketball match etc.





    Stadium Perimeter Series P10 Outdoor Football LED Display Screen Features:

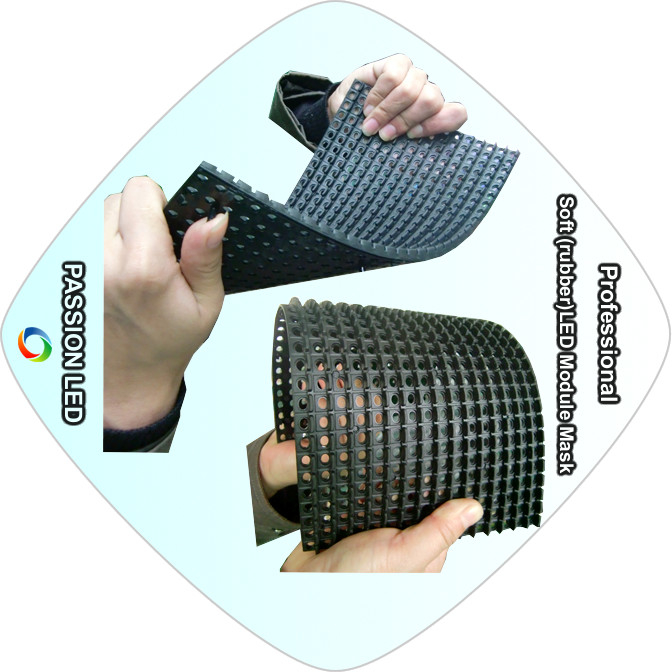

    1. New soft mask design.high refresh and high definition.

    2. IP65 waterproof,Which is high performance waterproof,dustproof and anti-rust.

    3. It can work well for all kinds of outdoor heavy weather,and also suitable for indoor gymnasiums.

    4. The panels adopt unique Angle adjustable design,which can be adjusted different panel's Angle (75°~ 90°)according to the use angel of requirements,let all the audience can see the content of the live broadcast.or installation.





    Specifications:



    1. Outdoor LED Display Technical Parameter



    Model No. POP-P10
    Pixel Pitch 10mm
    Module Size 320mm ×320mm
    Module Resolution(dots) 32*32
    Panel Size 960mm × 960mm
    Panel Resolution(dots) 96 × 96
    Pixel Configuration(RGB) 1R1G1B
    Pixel Density(dots/m2) 10,000
    Brightness(cd/m2) ≥ 6,000
    Best Viewing Distance(m) 10-120
    Avg. Power Consumption(W/m2) 1,000
    Drive Mode 1/4
    Wavelength R 620-625 G 520-525 B 470-475
    Viewing Angle 110°(H)/45°(V)
    Operating Temperature –20~60°C
    Video Frame Rate(Hz) ≥ 60HZ
    Display Refresh Rate(Hz) ≥ 300HZ
    Grey Level(colors) 16.7million
    Lifespan ≥100,000 hours
    Working Voltage 220V±15% OR 110V±15%
    Video Signal Input RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION
    Control System LINSN or NOVA



    2. Outdoor LED Display Module



    Module Size (W*H) 320mm*320mm Pixel Configuration 1R1G1B
    Pixel Pitch 10mm Resolution (W*H) 32 dots *32dots
    Pixel Density 10,000 dots/㎡ LED Type 3mm Oval Lamp



    3. Outdoor LED Display Cabinet



    Cabinet Size (W*H) 960mm* 960mm Module Qty 9pcs
    Cabinet Resolution (W*H) 96dots *96 dots Cabinet Pixel 9,216
    Average Power Consumption 1000w/㎡ Cabinet Material Iron





    FAQ:



    Q1. What about the delivery lead time


    A: About 22 days after receiving payment.





    Q2. How do you ship the goods and how long does it take to arrive?



    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-8 days to arrive. Airline and sea shipping also optional. And you can also designate shipping companies.





    Q3. How to proceed an order?



    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the solution and places deposits for formal order.
    Fourthly We arrange the production.





    Q4. Is it OK to print my logo on the product?



    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.





    Q5. Do you offer guarantee for the products?



    A: Yes, we offer 2 years warranty to our products.
