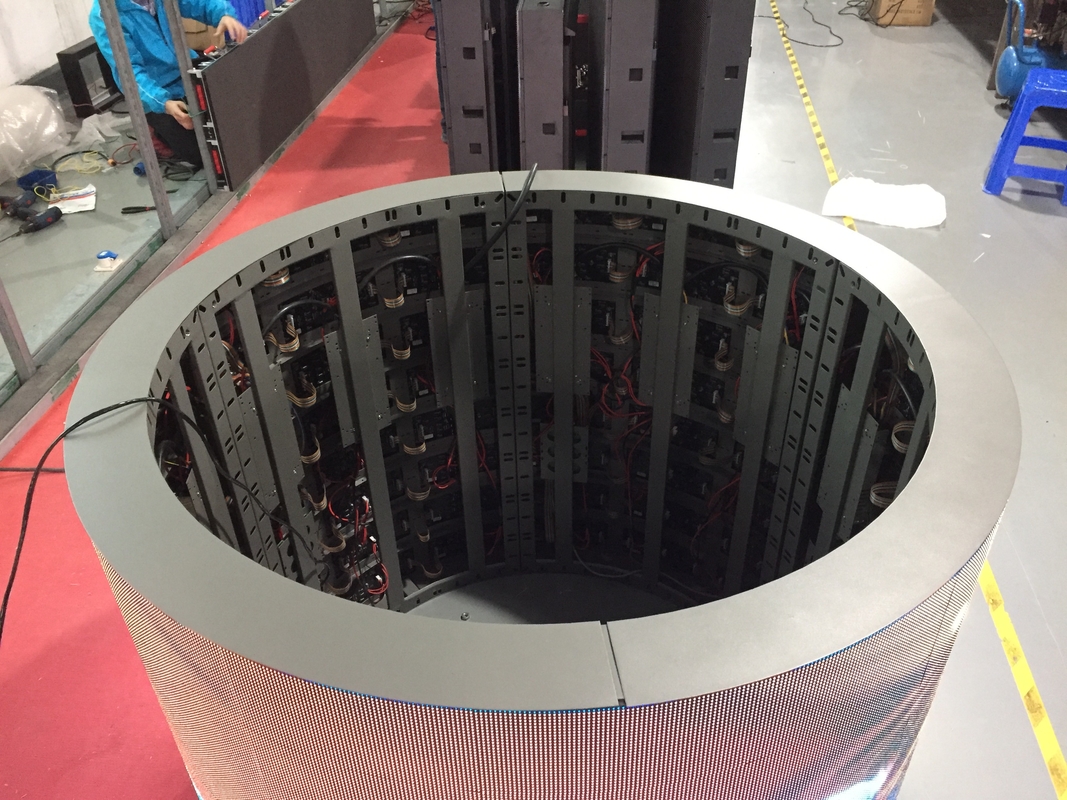

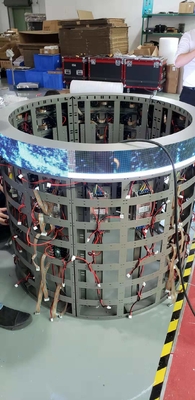

3 In 1 SMD Round LED Screen , Round LED Screen 1.15M Diameter Cylinder IP43

3 In 1 SMD Round LED Screen , Round LED Screen 1.15M Diameter Cylinder IP43

  • 3 In 1 SMD Round LED Screen , Round LED Screen 1.15M Diameter Cylinder IP43
  • 3 In 1 SMD Round LED Screen , Round LED Screen 1.15M Diameter Cylinder IP43
  • 3 In 1 SMD Round LED Screen , Round LED Screen 1.15M Diameter Cylinder IP43
3 In 1 SMD Round LED Screen , Round LED Screen 1.15M Diameter Cylinder IP43
Product Details:
Place of Origin: Shenzhen, China
Brand Name: PASSION LED
Certification: CE, ROSH
Model Number: P4mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: flight case or wooden case
Delivery Time: 15~20 days
Payment Terms: L/C, T/T, Western Union, MoneyGram,
Supply Ability: 2000SQM/month
Contact Now
Detailed Product Description
Official Name: Curved LED Display Pixel Configuration: SMD 3 In 1
Module Size: 240mm * 120mm IP Rate: IP43
Material: Iron Refresh Rate: 1920Hz
High Light:

360 degree led display

,

circular led screen

3 In 1 SMD Round LED Screen , Round LED Screen 1.15M Diameter Cylinder IP43




Curve LED Screen:

PASSION curve LED screen , coming up with the engagement of making the video panels curving as needed, is born to be the perfect solution for indoor and outdoor stage background of grand performance, full color videos or graphic display, video wall on high buildings. It features of thinness, waterproof and lightweight, to provide easy and fast implement with the friendly hardware/software interfaces.

Its scientific structure makes the assembly of even super-large system fast and simple, cutting cost and time. The SMD LED of PASSION curve LED screen provides more uniform, flawless and ultra-sharp images, with high permeability and good performance.

Indoor series: PH4, PH5, PH6, PH7.62, PH8, PH10.



LED Module Pitch/mm PH4

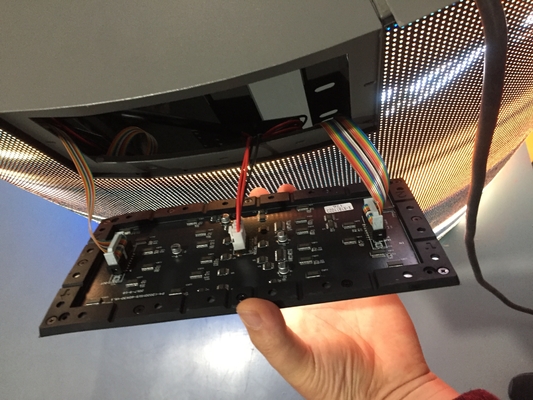

Module size/mm 240mm *120mm
Density of pixel/(dots/m2) 62500
Pixel composition 1R1G1B
Led encapsulation SMD 3 in 1
Resolution of module 60 * 30
LED Screen Optimum viewing distance 4~80M
View angle H:±120°;V±60°
Average power consumption 300W/sqm
Max power consumption 800W/sqm
Module quantity 3 * 8pcs
Size of cabinet/mm 720*960
Resolution of cabinet 180 * 240
Cabinet Material Iron Cabinet (Aluminum Cabinet optional)
Weight of cabinet 20Kg
Driving method 1/15 scan constant current
Frame frequency / Hz/S ≥60
Refresh frequency / Hz/S 600~2000
Brightness 1500cd/m2
Operating temperature –25C°~65C°
Storage temperature –40C°~70C°
Operation humidity 10%-90%
Storage humidity 10%-90%
IP Rrating (Front/Rear) IP43
Working vlotage AC220V / AC110V ±10%
Grey scale/color depth displaying colors≥16.7M(synchronized); 14bits
Brightness adjustment 256 levels of each color(manually)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system linsn/Colorlight/Nova(sending card,receiving cards and Hubs)
Average of non-failure life ≥50,00h
Life span ≥100,000h
Functionaless dot rate ≤0.0001
Control distance CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km



3 In 1 SMD Round LED Screen , Round LED Screen 1.15M Diameter Cylinder IP43 0
