Waterproof Indoor LED Display Board 6000 CD/㎡ 1920Hz Refresh Rate RGB

Waterproof Indoor LED Display Board 6000 CD/㎡ 1920Hz Refresh Rate RGB

  • Waterproof  Indoor LED Display Board 6000 CD/㎡ 1920Hz Refresh Rate RGB
  • Waterproof  Indoor LED Display Board 6000 CD/㎡ 1920Hz Refresh Rate RGB
  • Waterproof  Indoor LED Display Board 6000 CD/㎡ 1920Hz Refresh Rate RGB
Waterproof  Indoor LED Display Board 6000 CD/㎡ 1920Hz Refresh Rate RGB
Product Details:
Place of Origin: Shenzhen, China
Brand Name: PASSION
Certification: CE ,ROSH
Model Number: P6mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15 days after deposit payment arrival
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000SQm/Month
Contact Now
Detailed Product Description
Weight: 58Kg/SQM Materail: Iron Or Aluminum
Working Voltage: AC100-240V Cabinet Size: 960mm * 960mm
RGB: Full Color Refresh Rate: 1920Hz
High Light:

cylinder led screen

,

circular led screen

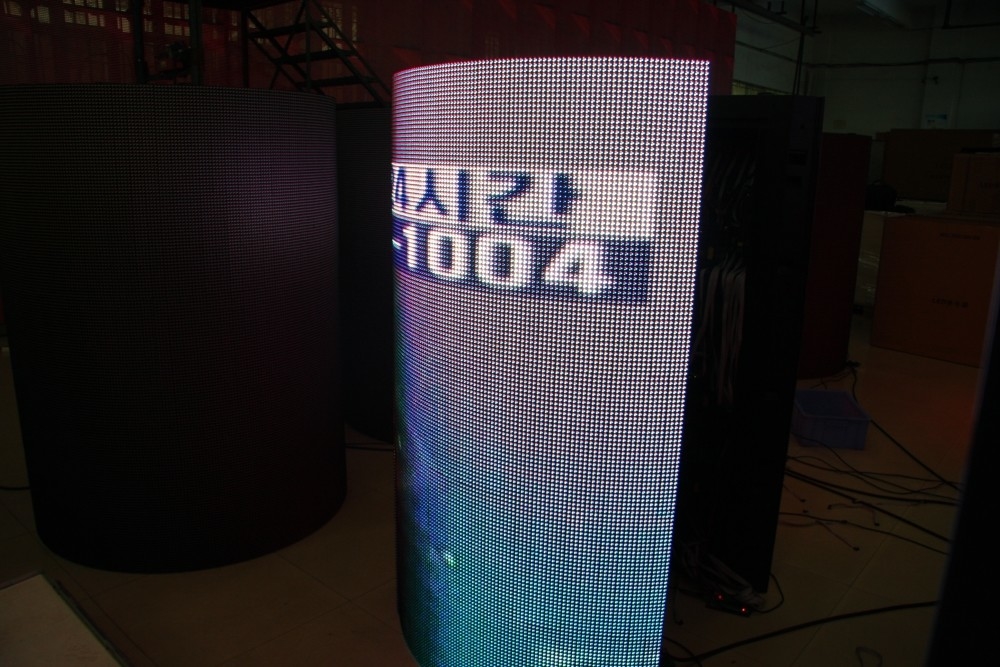

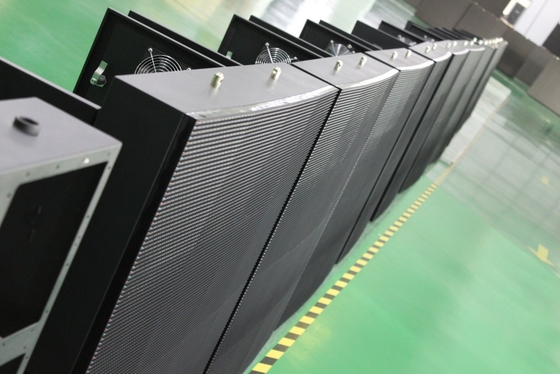

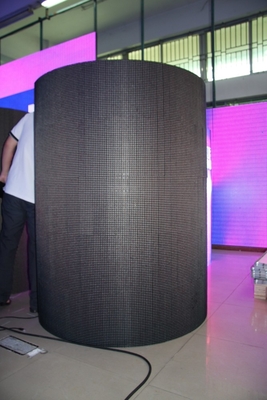

Outdoor Curved LED Display Billboard, LED Sign With Water Proof Curved Cabinet





Detail Specifications of the Outdoor Advertising Curved LED Display P6mm model:



LED Module Pitch/mm PH6
Module size/mm 192*192
Density of pixel/(dots/m2) 27777
Pixel composition 1R1G1B
Led encapsulation 3535 / 2727 SMD 3 in 1
Resolution of module 32*32
LED Screen Optimum viewing distance 5~50M
View angle H:±160°;V±120°
Average power consumption 400W/sqm
Max power consumption 1000W/sqm
Module quantity 5*5pcs
Size of cabinet/mm 960*960
Resolution of cabinet 160*160
Cabinet Material Iron Cabinet (Aluminum Cabinet optional)
Weight of cabinet 50Kg
Driving method 1/8scan constant current
Frame frequency / Hz/S ≥60
Refresh frequency / Hz/S 800~2000
Brightness 5500cd/m2
Operating temperature –25C°~65C°
Storage temperature –40C°~70C°
Operation humidity 10%-90%
Storage humidity 10%-90%
IP Rrating (Front/Rear) IP65/ IP54
Working vlotage AC220V / AC110V ±10%
Grey scale/color depth displaying colors≥16.7M(synchronized); 14bits
Brightness adjustment 256 levels of each color(manually)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system linsn/Colorlight/Nova(sending card,receiving cards and Hubs)
Average of non-failure life ≥50,00h
Life span ≥100,000h
Functionaless dot rate ≤0.0001
Control distance CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km







Product Advantages:



1. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light;



2. Big viewing angle to 140 degree at horizontal line, 140 degree at vertical line, you can see at every angle, at this range, no picture change, no color excursion;



3. To pictures and character, have clear, exquisite and real display effect;



4. High intensity and can be adjusted, so can meet the request of the customers according to the

application environment;



5. Can repair each led lamps, so the cost of maintain is lower, and easy to repair





Trade Articles:



1).Trade terms: FOB,CIF,EXW

2).Payment terms: T/T ,Western Union, Paypal, Escrow, Moneygram

3) Payment condition: T/T ,30% deposit before production, 70% balance before delivery

4).Production lead time less 20 sqm: 8-15days, more than 50 sqm:20days. Sample can be deliveried within 3days
5).Shipping: by sea,by air and by express delivery
6).Shipping port: Shenzhen, Mainland China





Application Area:


public place: bus,subway, train station, airport, book store, park, exhibtion hall, stadium, museum,buildings, highway, school, meeting room, wedding;

Budiness orginazations: supermarket, shopping mall, hotels, restaurant,hospital;

Financial Orginazations: bank, insurance company, stock company, pawnshop;

Entertainment: theater, clubs, bars,KTV, internet bars;



Waterproof  Indoor LED Display Board 6000 CD/㎡ 1920Hz Refresh Rate RGB 0
