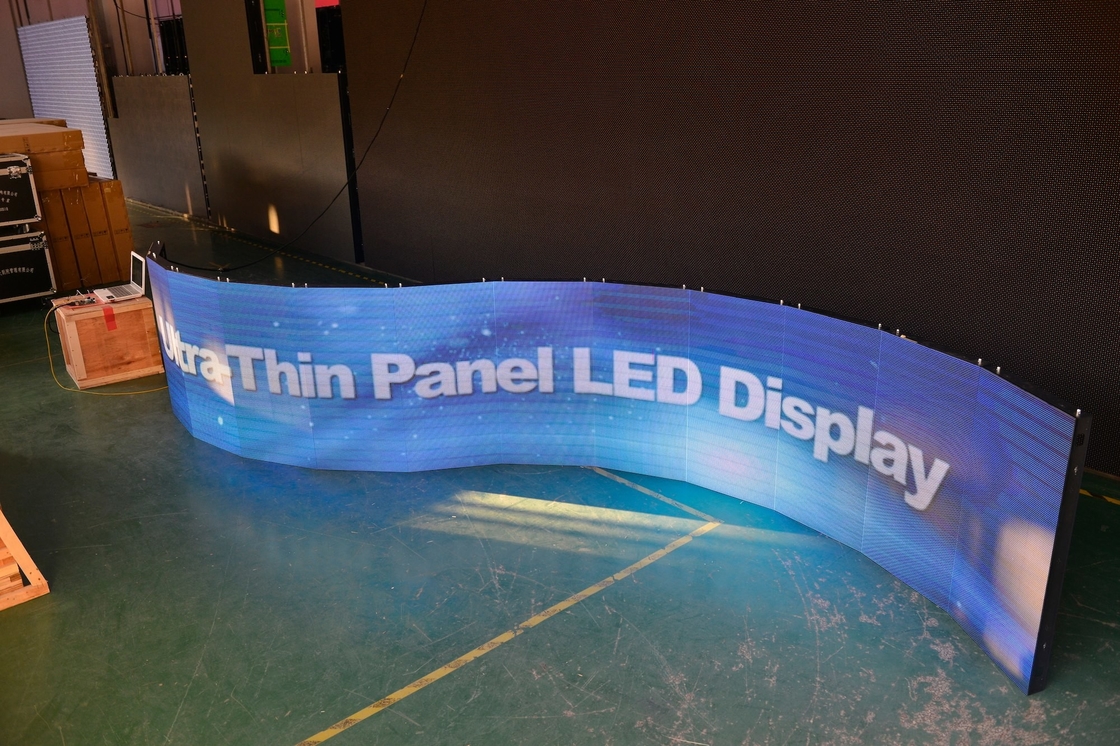

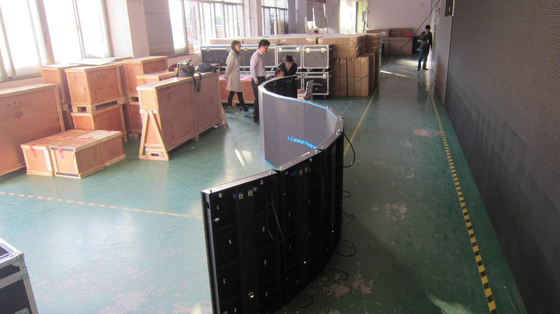

Fast Installation Curved LED Display Slim Rental Stage 60 Hz Frame For Events

Fast Installation Curved LED Display Slim Rental Stage 60 Hz Frame For Events

  • Fast Installation Curved LED Display Slim Rental Stage 60 Hz Frame For Events
  • Fast Installation Curved LED Display Slim Rental Stage 60 Hz Frame For Events
  • Fast Installation Curved LED Display Slim Rental Stage 60 Hz Frame For Events
Fast Installation Curved LED Display Slim Rental Stage 60 Hz Frame For Events
Product Details:
Place of Origin: Shenzhen, China
Brand Name: PASSION
Certification: CCC, CE, ROHS
Model Number: Indoor P3.91mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotation
Packaging Details: flight case ( road case ) ; export wooden case
Delivery Time: 15 ~ 25 working days
Payment Terms: T/T , Western Union , MoneyGram
Supply Ability: 1000Sqm / Month
Contact Now
Detailed Product Description
Product Name: Curved LED Display Certification: CCC, CE, ROHS
IP Rate: 43 Working Vlotage: AC 100V - 240V
Display Function: Video Cabinet Size: 500mm * 500mm / 500mm * 1000mm
High Light:

cylinder led screen

,

circular led screen

Fast Installation Curved LED Display Slim Rental Stage 60 Hz Frame For Events

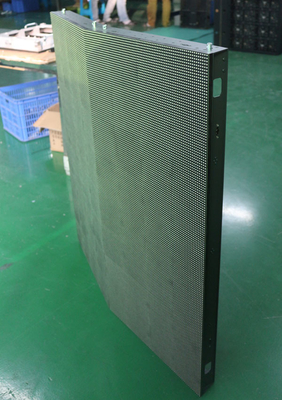

  • Lightweight  The aluminum die-casting technology makes the single cabinet as light as 14KG.
  • Ultra thin  The thinnest point of the cabinet is only 75mm, making it easily to be fitted in small room.
  • Easy to install  No need of other tools. It takes 15 minutes for 2workers to finished 30 sqm installation.
  • High IP  The IP43 insures the reliable operation in severe environment.
  • Easy to maintain  No need to disassemble the whole screen for maintenance. Each component can be detach individually for that purpose.
  • Noiseless  The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
  • Ghost canceling  Exquisite and clear picture quality with no ghost. Both upstream and downstream ghosts can be automatically canceled.
  • High refresh rate  3840Hz refresh rate to ensure the picture wrinkle-less, lineless and stable.
  • Low brightness and high gray scale  14Bit-16Bit gray scale to bring excellent performance when brightness reduced to 20%.





This series products are widely applied to stage show, concert, TV station, Brand presentation, stadium display screen and so on



Indoor slim rental P3.91, P4.81, P5.68, P5.95, P6.25, P8.928mm models (unit module size: 250mm * 250mm and unit cabinet size: 500mm * 500mm)
LED Module Pitch/mm PH3.91 PH4.81 PH5.68 PH5.95 PH6.25 PH8.928
Module size/mm 250*250 250*250 250*250 250*250 250*250 250*250
Density of pixel/(dots/m2) 65536 43264 30976 28224 25600 12544
Pixel composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Led encapsulation SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1
Resolution of module 64*64 52*52 44*44 42*42 40*40 28*28
LED Screen Optimum viewing distance 3~38M 3~38M 4~40M 4~40M 5~45M 7~50M
View angle H:±160°;V±120° H:±160°;V±120° H:±160°;V±120° H:±160°;V±120° H:±160°;V±120° H:±160°;V±120°
Average power consumption 600W/sqm 600W/sqm 400W/sqm 400W/sqm 300W/sqm 300W/sqm
Max power consumption 1600W/sqm 1600W/sqm 1000W/sqm 1000W/sqm 900W/sqm 700W/sqm
Module quantity 2* 2pcs
Size of cabinet/mm 500*500
Resolution of cabinet 128*128 104*104 88*88 84*84 80*80 56*56
Cabinet Material die-casting aluminum cabinet
Weight of cabinet 7.5Kg
Driving method 1/16 scan constant current 1/13 scan constant current 1/11 scan constant current 1/7 scan constant current 1/10 scan constant current 1/7 scan constant current
Frame frequency / Hz/S ≥60
Refresh frequency/ Hz/S 800~2000
Brightness 1500cd/m2 2000cd/m2 1500cd/m2 1500cd/m2 1500cd/m2 2500cd/m2
Operating temperature –20C°~60C°
Storage temperature –40C°~70C°
Operation humidity 10%-90%
Storage humidity 10%-90%
IP Rrating (Front/Rear) IP54/ IP43
Working vlotage AC220V / AC110V ±10%
Grey scale/color depth displaying colors≥16.7M(synchronized); 14bits
Brightness adjustment 256 levels of each color(manually)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system linsn/Colorlight/Nova(sending card,receiving cards and Hubs)
Average of non-failure life ≥50,00h
Life span ≥100,000h
Functionaless dot rate ≤0.0001
Control distance CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km
