Mesh Flexible LED Display Panels Big Size Mesh High Transparency Wind Resist

Mesh Flexible LED Display Panels Big Size Mesh High Transparency Wind Resist

  • Mesh Flexible LED Display Panels Big Size Mesh High Transparency Wind Resist
  • Mesh Flexible LED Display Panels Big Size Mesh High Transparency Wind Resist
  • Mesh Flexible LED Display Panels Big Size Mesh High Transparency Wind Resist
Mesh Flexible LED Display Panels Big Size Mesh High Transparency Wind Resist
Product Details:
Place of Origin: Shenzhen , China
Brand Name: PASSION LED
Certification: CE , ROSH
Model Number: NMP37
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: flight case and wooden case
Delivery Time: 15 ~ 20 working days
Payment Terms: Western Union, MoneyGram, T/T,
Supply Ability: 5000PIECE PER MONTH
Contact Now
Detailed Product Description
Gray Scale: 16bits Pixel Pitch: 37.5mm
Unit Size: 300mm * 4800mm Brightness: 5500nits
Display Function: Video Name: Flexible LED Display
High Light:

flexible led panel video screen

,

flexible led video curtain

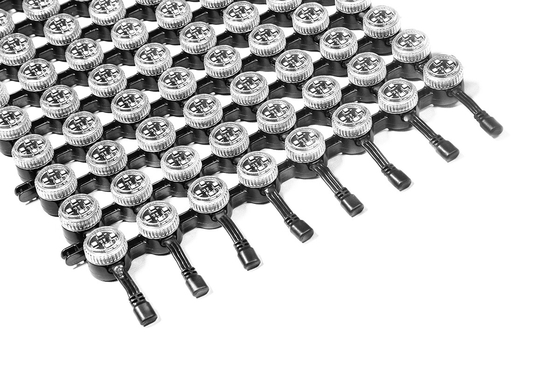

Mesh Flexible LED Display Panels Big Size Mesh High Transparency Wind Resist



Using our flex LED screen technology, we can create a unique led video display solution such as a circular column, curved, waved shape LED screen. Imagine the endless messaging, branding and advertising opportunities unlocked by the ability to wrap static columns, curved or waved wall in convention centers, stadiums, shopping centers, and more with seamless,brilliant imagery.





Amazing advantages for flexible transparent led display:

(1). Ultra transparent flexible LED mesh screen - M6, easy to form a flat screen or curved to match with irregular shaped building facade, both pixel pitch, panel size and panel color can be customized.

(2). High transparency maximizes the natural light get inside of the building, M6 soft led display also ensuring the screen has great ventilation and wind-resistance function.

(3). Fast inter-panel locks make installation quick and easy especially for a large-sized screen.

(4). Ultra light, a simple installation structure is enough to hold the screen. Panels can be well fixed by locking the following two pieces of connector on installation structure.

(5). Both single LED strips and LED dot can be taken out for repair or replacement, which make service much more convenient

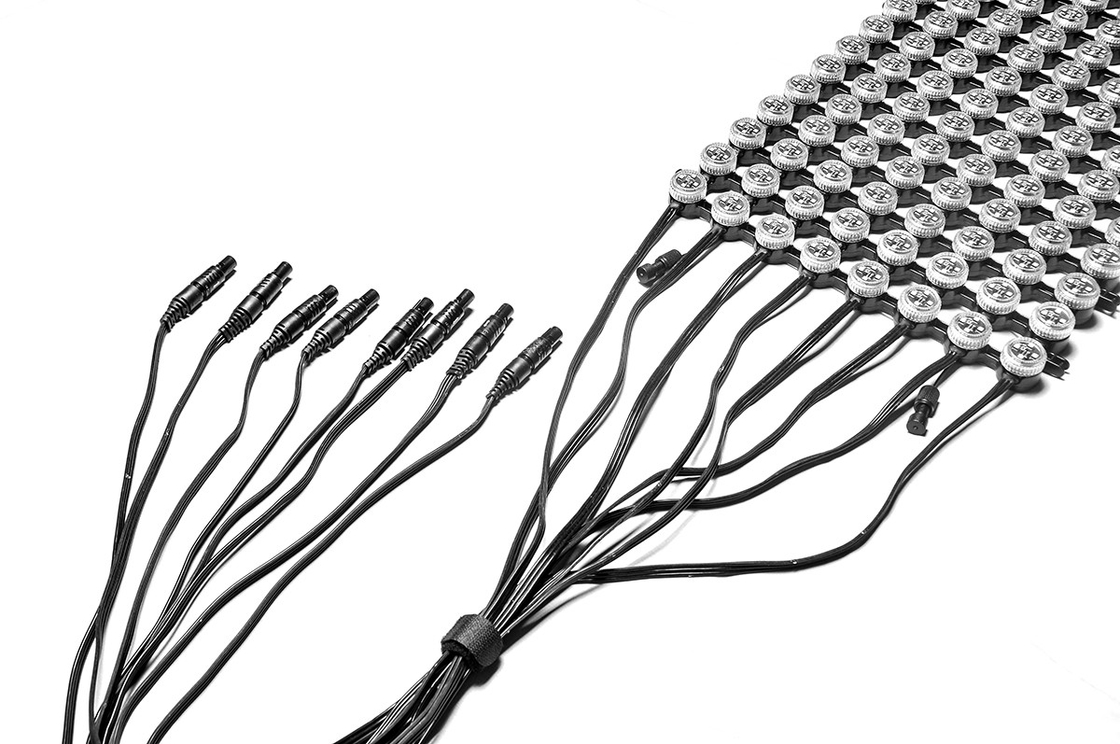

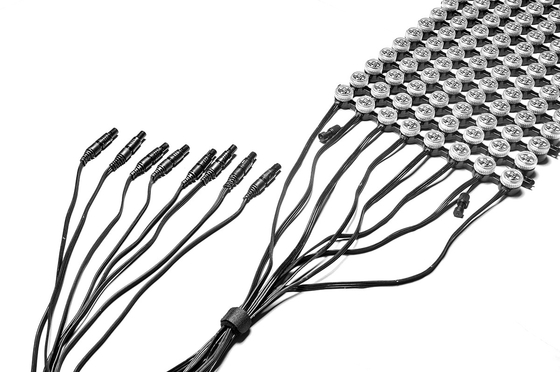

(6). Head and tail of the panel with waterproof connectors.

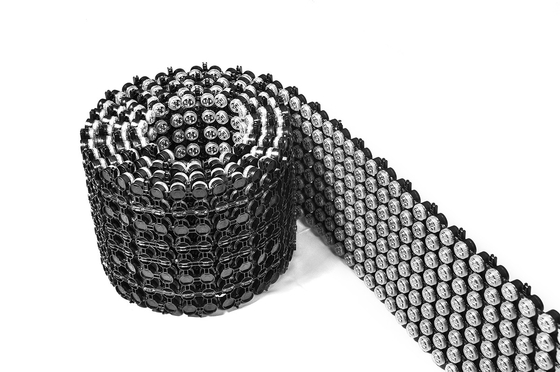

PASSION LED NM flexible curtain is an outdoor LED mesh screen series, its unique soft structure allows the screen to bend, roll up, hang and fold a variety of unique shapes. The products are widely used in the stage background design, bar , DMX lighting, building facades, and a variety of scene layout and decorative lighting.

1. Soft and flexible, application scenarios are not limited
2. Shape, size, color, spacing can be customized
3. Easy installation and maintenance, no box structure, modular splicing convenient
4. Magnetic buckle, quick connection and removal, suitable for activitie





Detail Specifications of the PASSION LED NS series Flexible LED Display:



Model Name
NM6
Pixel Pitch
37.5mm / 56.25mm / 75mm (pixel pitch can also be customized)
Pixel Configuration
6*SMD3535
Panel Size
0.3m x 4.8m / 0.45m x 7.2m / 0.6m x 9.6m (Size can be customized)
0.98' x 15.75' / 1.48' x 23.62' / 1.97' x 31.50'
Brightness
7200nits/ 5100nits /2400nits (Nationstar SMD3535)
Transparency Rate
55% / 75% / 85%
Weight
10.5 kg/sqm; 5.5 kg/sqm; 3.5 kg/sqm
23.1 lbs/sqm; 12.1 lbs/sqm; 7.7 lbs/sqm
IP Rating(Front/Rear)
IP66
Refresh Rate
1000 Hz
Scan Mode
Static
Max Power Consumption
600 W/sqm; 400 W/sqm ; 250 W/sqm
Color Processing
16 bit
Viewing Angle(H/V)
140°/110°
Operating Temperature
-40~45°C
Main Power Source
AC 100-240V; 50/60Hz
Input Voltage
24V DC
Humidity
10~90%RH
Life Time
100,000 Hours



 Mesh Flexible LED Display Panels Big Size Mesh High Transparency Wind Resist 0
