PC Flexible LED Video Curtain SMD 7200mm High Customized Shape No Box Structure

PC Flexible LED Video Curtain SMD 7200mm High Customized Shape No Box Structure

  • PC Flexible LED Video Curtain SMD 7200mm High Customized Shape No Box Structure
  • PC Flexible LED Video Curtain SMD 7200mm High Customized Shape No Box Structure
  • PC Flexible LED Video Curtain SMD 7200mm High Customized Shape No Box Structure
PC Flexible LED Video Curtain SMD 7200mm High Customized Shape No Box Structure
Product Details:
Place of Origin: Shenzhen , China
Brand Name: CE , ROSH
Certification: CE , ROSH
Model Number: NMP56
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: flight case and wooden case
Delivery Time: 15 ~ 20 working days
Payment Terms: Western Union, MoneyGram, T/T,
Supply Ability: 5000PIECE PER MONTH
Contact Now
Detailed Product Description
Certification: CE , ROSH Pixel Pitch: 56.25mm
Brand: CE , ROSH Brightness: 6500nits
Display Function: Video Protect Level: IP67
High Light:

bendable led screen

,

flexible led panel video screen

PC Flexible LED Video Curtain SMD 7200mm High Customized Shape No Box Structure





• Very soft, can be rolled, bend and swing, etc.
• Clean, exquisite and high color reproduction effect for video and text.
• RGB brightness tolerance is 10%, and wavelength tolerance is ±2.5nm.
• Wide viewing angle, horizontal and vertical angle up to 120 degrees, no distortion or color cast with the angle.
• The use of advanced SMT technology reduced the bad solder and static issue significantly.
• Adopts modular design, with features of arbitrary size, easy assembly and good flatness.
• Unobstructed cabinet design, good for cooling.

• Easy maintenance by pixel, module, and cabinet.

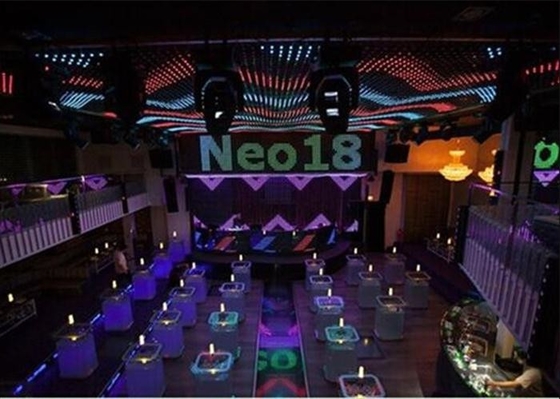

PASSION LED NM flexible curtain is an outdoor LED mesh screen series, its unique soft structure allows the screen to bend, roll up, hang and fold a variety of unique shapes. The products are widely used in the stage background design, bar , DMX lighting, building facades, and a variety of scene layout and decorative lighting.

1. Soft and flexible, application scenarios are not limited
2. Shape, size, color, spacing can be customized
3. Easy installation and maintenance, no box structure, modular splicing convenient
4. Magnetic buckle, quick connection and removal, suitable for activitie





PC Flexible LED Video Curtain SMD 7200mm High Customized Shape No Box Structure 0



Amazing advantages for flexible transparent led display:

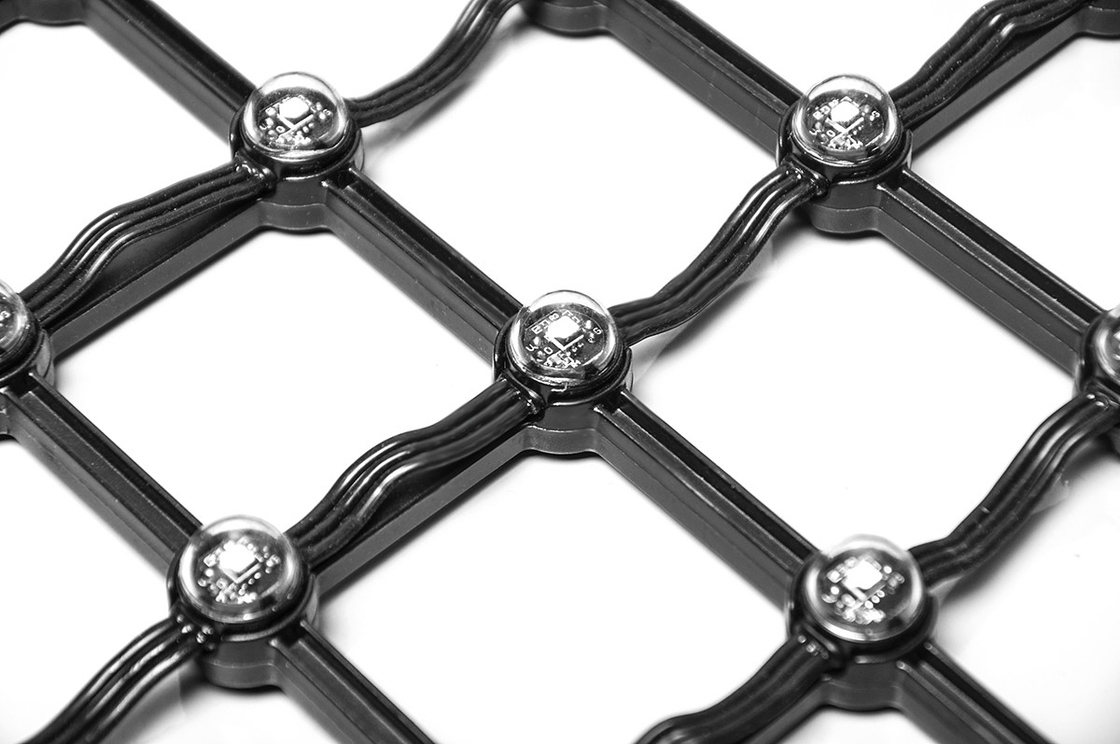

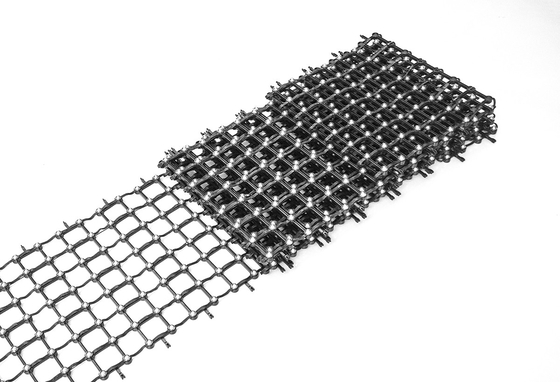

(1). Ultra transparent flexible LED mesh screen - M6, easy to form a flat screen or curved to match with irregular shaped building facade, both pixel pitch, panel size and panel color can be customized.

(2). High transparency maximizes the natural light get inside of the building, M6 soft led display also ensuring the screen has great ventilation and wind-resistance function.

(3). Fast inter-panel locks make installation quick and easy especially for a large-sized screen.

(4). Ultra light, a simple installation structure is enough to hold the screen. Panels can be well fixed by locking the following two pieces of connector on installation structure.

(5). Both single LED strips and LED dot can be taken out for repair or replacement, which make service much more convenient

(6). Head and tail of the panel with waterproof connectors.



Detail Specifications of the PASSION LED NM series Flexible LED Display:



Model Name NM6
Pixel Pitch 37.5mm / 56.25mm / 75mm (pixel pitch can also be customized)
Pixel Configuration 6*SMD3535
Panel Size 0.3m x 4.8m / 0.45m x 7.2m / 0.6m x 9.6m (Size can be customized)
0.98' x 15.75' / 1.48' x 23.62' / 1.97' x 31.50'
Brightness 7200nits/ 5100nits /2400nits (Nationstar SMD3535)
Transparency Rate 55% / 75% / 85%
Weight 10.5 kg/sqm; 5.5 kg/sqm; 3.5 kg/sqm
23.1 lbs/sqm; 12.1 lbs/sqm; 7.7 lbs/sqm
IP Rating(Front/Rear) IP66
Refresh Rate 1000 Hz
Scan Mode Static
Max Power Consumption 600 W/sqm; 400 W/sqm ; 250 W/sqm
Color Processing 16 bit
Viewing Angle(H/V) 140°/110°
Operating Temperature -40~45°C
Main Power Source AC 100-240V; 50/60Hz
Input Voltage 24V DC
Humidity 10~90%RH
Life Time 100,000 Hours

PC Flexible LED Video Curtain SMD 7200mm High Customized Shape No Box Structure 1

Flexible transparent led display--Test: In the water (waterproof) or in the irce (very low temperature)



PC Flexible LED Video Curtain SMD 7200mm High Customized Shape No Box Structure 2    PC Flexible LED Video Curtain SMD 7200mm High Customized Shape No Box Structure 3

PC Flexible LED Video Curtain SMD 7200mm High Customized Shape No Box Structure 4
