P100mm Flexible LED Display Screen 8*128 Pixels Unit Resolution Easy Installation

P100mm Flexible LED Display Screen 8*128 Pixels Unit Resolution Easy Installation

  • P100mm Flexible LED Display Screen  8*128 Pixels Unit Resolution Easy Installation
  • P100mm Flexible LED Display Screen  8*128 Pixels Unit Resolution Easy Installation
  • P100mm Flexible LED Display Screen  8*128 Pixels Unit Resolution Easy Installation
  • P100mm Flexible LED Display Screen  8*128 Pixels Unit Resolution Easy Installation
P100mm Flexible LED Display Screen  8*128 Pixels Unit Resolution Easy Installation
Product Details:
Place of Origin: Shenzhen , China
Brand Name: PASSION LED
Certification: CE , ROSH
Model Number: NM6-100
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: flight case and wooden case
Delivery Time: 15 ~ 20 working days
Payment Terms: Western Union, MoneyGram, T/T,
Supply Ability: 5000PIECE PER MONTH
Contact Now
Detailed Product Description
Usage: Outdoor Pixel Pitch: 100mm
Unit Resolution: 8 * 128 Pixels Product Name: Flexible LED Display
Display Function: Video Model Number: NM-100
High Light:

bendable led screen

,

flexible led panel video screen

P100mm Flexible LED Display Screen 8*128 Pixels Unit Resolution Easy Installation



Detail Specifications of the PASSION LED NM series Flexible LED Display:



Model No. NM-100
Pixel Pitch 100mm
LED Type: 6*SMD3535
LED Brand National star led lamp with pure gold wire inside
Panel Size 0.8mmx12.8mm
Panel Resolution 8dotsx128dots
Panel Weight 3KG
Brightness 1800nits
Refresh Rate ≥ 1000-3000HZ
Protection Level IP67
Transparency 90%
Driving Mode Static
Max. Power Consumption 200W/sqm
Gray Scale 12bits
Viewing Angle 140°/110°
Working Environment Temperature -20℃—+40℃ ,humidity 10-90% RH
Input Voltage AC100-240V, 50/60HZ
Working Voltage DC15V
Life Time >100,000 hours





PASSION LED NM flexible curtain is an outdoor LED mesh screen series, its unique soft structure allows the screen to bend, roll up, hang and fold a variety of unique shapes. The products are widely used in the stage background design, bar , DMX lighting, building facades, and a variety of scene layout and decorative lighting.

1. Soft and flexible, application scenarios are not limited
2. Shape, size, color, spacing can be customized
3. Easy installation and maintenance, no box structure, modular splicing convenient
4. Magnetic buckle, quick connection and removal, suitable for activitie





Amazing advantages for flexible transparent led display:

(1). Ultra transparent flexible LED mesh screen - NM6, easy to form a flat screen or curved to match with irregular shaped building facade, both pixel pitch, panel size and panel color can be customized.

(2). High transparency maximizes the natural light get inside of the building, M6 soft led display also ensuring the screen has great ventilation and wind-resistance function.

(3). Fast inter-panel locks make installation quick and easy especially for a large-sized screen.

(4). Ultra light, a simple installation structure is enough to hold the screen. Panels can be well fixed by locking the following two pieces of connector on installation structure.

(5). Both single LED strips and LED dot can be taken out for repair or replacement, which make service much more convenient

(6). Head and tail of the panel with waterproof connectors.

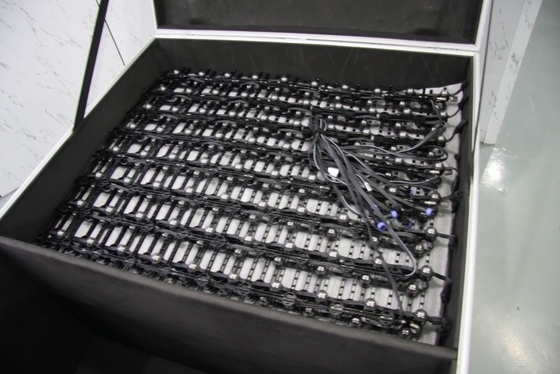

P100mm Flexible LED Display Screen  8*128 Pixels Unit Resolution Easy Installation 0

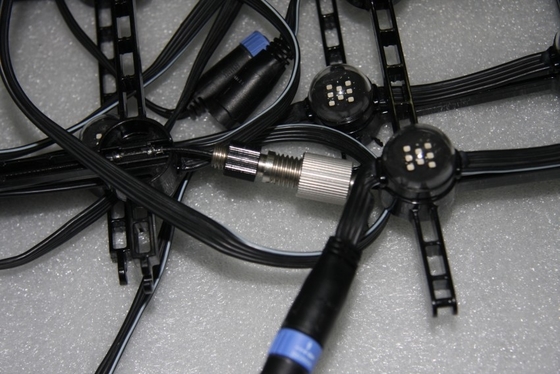

P100mm Flexible LED Display Screen  8*128 Pixels Unit Resolution Easy Installation 1

Flexible transparent led display--Test: In the water (waterproof) or in the irce (very low temperature)

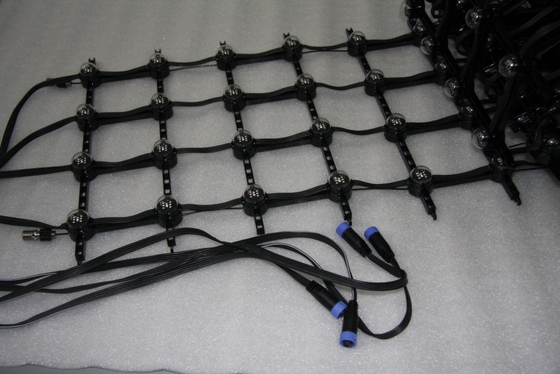

P100mm Flexible LED Display Screen  8*128 Pixels Unit Resolution Easy Installation 2    P100mm Flexible LED Display Screen  8*128 Pixels Unit Resolution Easy Installation 3

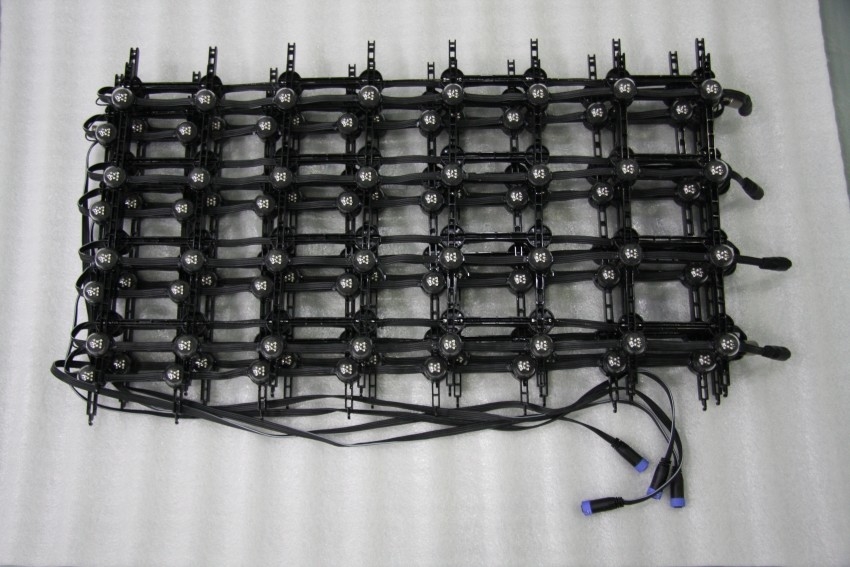

P100mm Flexible LED Display Screen  8*128 Pixels Unit Resolution Easy Installation 4






















P100mm Flexible LED Display Screen  8*128 Pixels Unit Resolution Easy Installation 5
