PASSION LED LIGHTING INTERNATIONAL LIMITED
 |
| Place of Origin: | China |
| Brand Name: | PASSION LED |
| Certification: | CE,ROSE |
| Model Number: | P37.5mm / 56.25mm / 75mm |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | USD880/PCS |
| Packaging Details: | flight case and wooden case |
| Payment Terms: | Western Union, MoneyGram, T/T, L/C |
| Supply Ability: | 5000 square meter per month |
| Name: | Outdoor LED Advertising Panel | Pixel Pitch: | 50mm |
|---|---|---|---|
| Transperency: | >50% | Tube Chip Color: | Full Color |
| Brightness: | 3300nits | Display Function: | Video |
| Protection Level: | IP67 | ||
| High Light: | outdoor full color led display,outdoor digital advertising screens |
||
Curtain Outdoor LED Advertising Panel , Exterior Advertising Display Glass Window
Short Description of Outdoor LED Advertising Panel

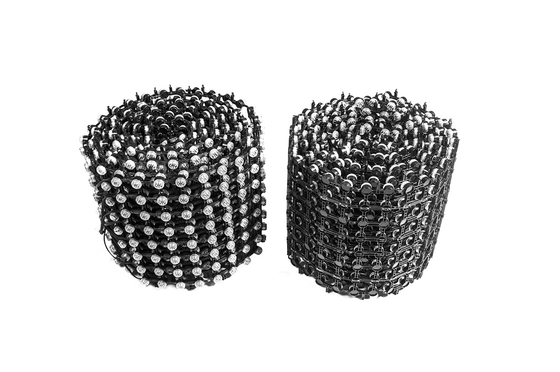

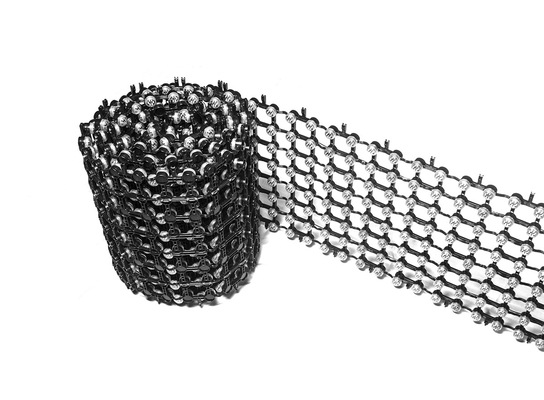

Ultra flexible, easy to form a flat screen or curved to match with irregular shaped building facade, both pixel pitch, panel size and panel color can be customized.
Specification of Outdoor LED Advertising Panel
| Model Name | M6 |
| Pixel Pitch | 37.5mm / 56.25mm / 75mm (pixel pitch can also be customized) |
| Pixel Configuration | 6*SMD3535 |
| Panel Size | 0.3m x 4.8m / 0.45m x 7.2m / 0.6m x 9.6m (Size can be customized) 0.98' x 15.75' / 1.48' x 23.62' / 1.97' x 31.50' |
| Panel Resolution | 8*128 |
| Weight | 10.5 kg/sqm; 5.5 kg/sqm; 3.5 kg/sqm 23.1 lbs/sqm; 12.1 lbs/sqm; 7.7 lbs/sqm |
| Brightness | 7200nits/ 5100nits /2400nits (Nationstar SMD3535) |
| IP Rating(Front/Rear) | IP65 |
| Refresh Rate | 1000 Hz |
| Transparency Rate | 55% / 75% / 85% |
| Scan Mode | Static |
| Max Power Consumption | 600 W/sqm; 400 W/sqm ; 250 W/sqm |
| Color Processing | 16 bit |
| Viewing Angle(H/V) | 140°/110° |
| Operating Temperature | -20~40°C |
| Main Power Source | AC 100~240V; 50/60Hz |
| Input Voltage | 15V DC |
| Humidity | 10~90%RH |
| Life Time | >50,000 Hours |
Description of Outdoor LED Advertising Panel :
1. SMD led encapsulation confirm wide view angle and good uniformity
2. Good waterproof IP65, can be used under any weather outdoor permanent
3. High pixel density, Long view distance, High definition, Good uniformity

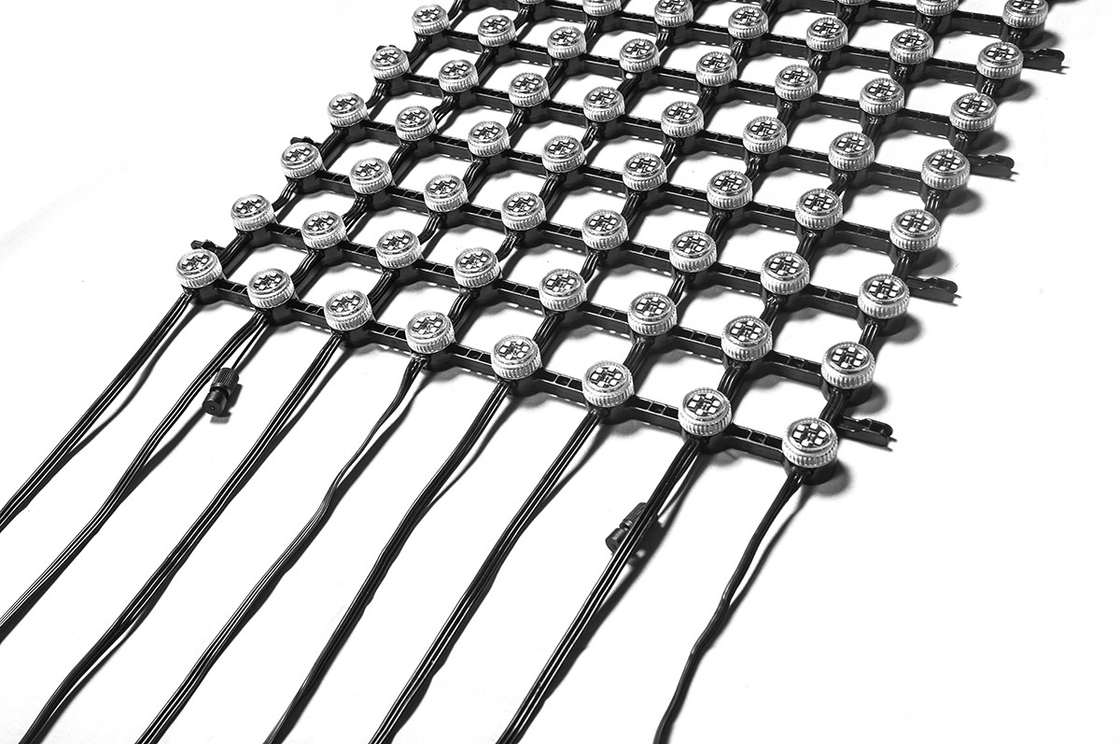

4. Cables connected with aviation plugs, easy and quick to connect between cabinets
5. Cabinet design with good heat dissipation itself, with antirust protection,long life span>100000Hours

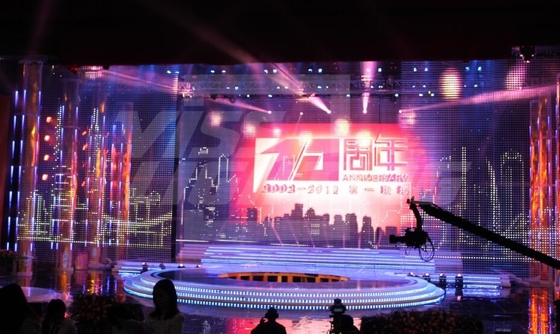

6. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.
High transparency maximizes the natural light get inside of the building, also ensuring the screen has great ventilation and wind-resistance function

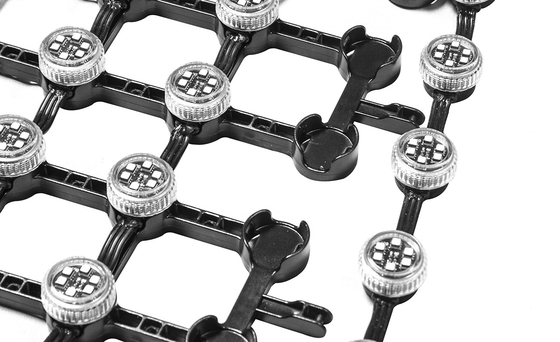

inter-panel locks make installation quick and easy especially for a large-sized screen
Ultra light, a simple installation structure is enough to hold the screen. Panels can be well fixed by locking the following two pieces of connector on installation structure
