SMD Stage LED Display Structure Accurate Tolerance Fast Cabinet Splicing

SMD Stage LED Display Structure Accurate Tolerance Fast Cabinet Splicing

    • SMD Stage LED Display Structure Accurate Tolerance Fast Cabinet Splicing
    • SMD Stage LED Display Structure Accurate Tolerance Fast Cabinet Splicing
    • SMD Stage LED Display Structure Accurate Tolerance Fast Cabinet Splicing
    • SMD Stage LED Display Structure Accurate Tolerance Fast Cabinet Splicing
  • SMD Stage LED Display Structure Accurate Tolerance Fast Cabinet Splicing

    Product Details:

    Place of Origin: SHENZHEN , CHINA
    Brand Name: PASSION
    Certification: CE ROHS
    Model Number: P3.91mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 8 panels
    Price: Negotiation
    Packaging Details: Flight Case & Wooden Case
    Delivery Time: 15 ~ 20 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 5000 square meter per month
    Contact Now
    Detailed Product Description
    Product Name: SMD Stage LED Display Tube Chip Color: Full Color
    Display Function: Video Brightness: 1500CD/sqm
    Refresh Rate: 3840Hz IP Rate: 43
    Material: Aluminum Unit Cabinet Size: 500mm * 1000mm * 80mm

    SMD Stage LED Display Structure Accurate Tolerance Fast Cabinet Splicing



    SMD Stage LED Display

    • Adopting modular design, assembled cabinet can install and disassembly quickly and easily. It is easy to maintenance.
    • New structure design, can satisfy hoisting, overstow, indoor used requirements. Cabinet simplification.



    Product features of SMD Stage LED Display

    1. High quality LED chip and high anti-static electricity capacity.

    2. Large viewing angle and smooth displaying provide excellent visual effect from every angle. High brightness led, the brightness is more than 2000cd/m2, and the wavelength range is ±1.5NM, same batch the LED brightness rate is 1:1.2, 130 wide viewing angle



    Specification of SMD Stage LED Display:

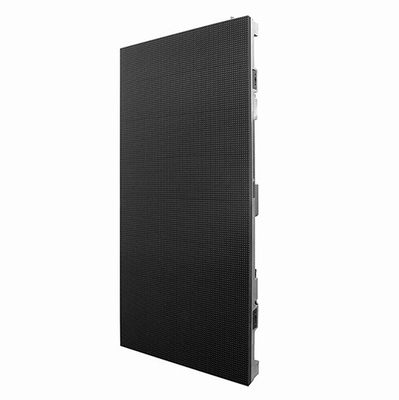

    Indoor slim rental P3.91mm LED screen (unit module size: 250mm * 250mm and unit cabinet size: 500mm * 1000mm) SMD Stage LED Display
    LED Module Pitch/mm PH3.91
    Module size/mm 250*250
    Density of pixel/(dots/m2) 65746
    Pixel composition 1R1G1B
    Led encapsulation SMD2121 3 IN 1
    Resolution of module 64*64
    LED Screen Optimum viewing distance 3~38M
    View angle H:±160°;V±120°
    Average power consumption 300W/sqm
    Max power consumption 800W/sqm
    Module quantity 2* 4pcs
    Size of cabinet/mm 500*1000
    Resolution of cabinet 128*256
    Cabinet Material die-casting aluminum cabinet
    Weight of cabinet 13Kg
    Driving method 1/16 scan constant current
    Frame frequency / Hz/S ≥60
    Refresh frequency/ Hz/S 1000~2000
    Brightness 1500cd/m2
    Operating temperature –20C°~60C°
    Storage temperature –40C°~70C°
    Operation humidity 10%-90%
    Storage humidity 10%-90%
    IP Rrating (Front/Rear) IP43
    Working vlotage AC220V / AC110V ±10%
    Grey scale/color depth displaying colors≥16.7M(synchronized); 14bits
    Brightness adjustment 256 levels of each color(manually)
    Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
    Control system linsn/Colorlight/Nova(sending card,receiving cards and Hubs)
    Average of non-failure life ≥50,00h
    Life span ≥100,000h
    Functionaless dot rate ≤0.0001
    Control distance CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km





    SMD Stage LED Display Structure Accurate Tolerance Fast Cabinet Splicing
