Name: Aluminum LED Advertising Display , Small LED Display 1010 LED Chip 400mm Wide
Brand: PASSION
SKU: P1.92mm

Home Products HD LED Display

Aluminum LED Advertising Display , Small LED Display 1010 LED Chip 400mm Wide

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	PASSION
Certification:	CCC , CE , ROHS
Model Number:	P1.92mm

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Export Wooden Case & Flight Case
Delivery Time:	10 - 20 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	2000SQM/Month

Contact Now

Detailed Product Description

Usage:	Indoor	Cabinet Weight:	4.5Kg
Material:	Aluminum	Life Span:	100000H
Pixel Failure:	<0.0003	Viewing Angle(H/V):	140°/140°
Brightness:	800CD/sqm	Refresh Rate:	3840Hz
High Light:	high resolution led display , high definition led display

Aluminum LED Advertising Display , Small LED Display 1010 LED Chip 400mm Wide

Our advantages:

1. Rich experience: established in 2007; familiar with technical and material about LED display and LED light.
2. Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
3. Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
4. Good quality: stable performance .
5. Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
6. We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime, and we will inspect our products which have been sold periodically.

Application of HD LED Display:

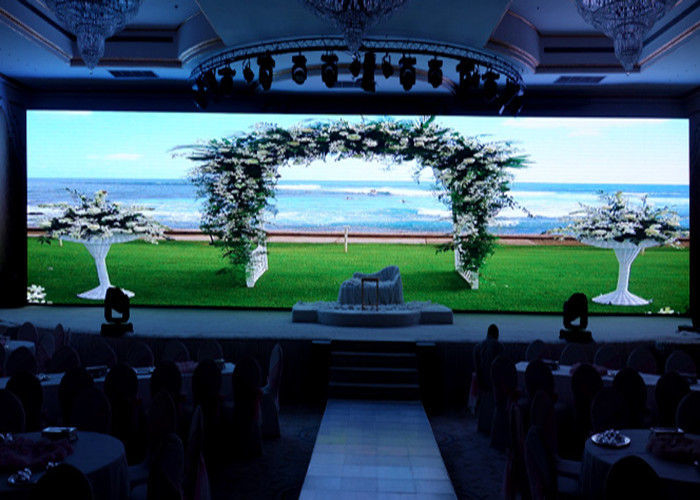

PASSION LED P1.92 indoor HD LED display is also called HD LED TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 400 x 300mm, Die-casting aluminum structure with high precision and cooling effect.

Specifications:

1) Application: Indoor Fixed

2) Optional of Front service and rear service

3) Silent operation

4) Lightweight and seamless

5) High gray and low brightness

6) High color Fidelity

7) Wide viewing angle

8) Excellent thermal management

9) Low consumption

10) Quick lock system allowing fast rigging

11) Long life span time

12) Shorter Mean time bettwen failure

Spec Details:

Model	PHD -1.9
Pixel Pitch	1.92mm
Pixel Density	271232 px/m²
LED Type	SMD1010
LED Configuration	1R1G1B
Cabinet Dimension	400*300mm
Cabinet Resolution	208*156px
Cabinet Weight	4.5kg
Cabinet Material	die-casting
Ingress Protection (front/rear)	IP40/IP21
Brightness	>800nits
Viewing Angle(H/V)	140°/140°
Driving Method	1/26 Scan
Power Consumption(avg.)	220w/m²
Frame Refresh	≥ 60Hz
Data Refresh Rate	≥ 1500Hz
Gray Scale	16bit
Power Supply	AC 110/220±10% 50~60Hz
Temperature (operating/storage)	-20~50°C -40~60°C
Humidity(operating/storage)	10%~90%RH 10%~85%RH
MTBF	≥1000 Hours
Life Span	≥50000 Hours
Pixel Failure	<0.0003
