Seamless LED Video Wall , Concert LED Screen Die Casting Aluminum Cabinet

Seamless LED Video Wall , Concert LED Screen Die Casting Aluminum Cabinet

    • Seamless  LED Video Wall , Concert LED Screen Die Casting Aluminum Cabinet
    • Seamless  LED Video Wall , Concert LED Screen Die Casting Aluminum Cabinet
    • Seamless  LED Video Wall , Concert LED Screen Die Casting Aluminum Cabinet
    • Seamless  LED Video Wall , Concert LED Screen Die Casting Aluminum Cabinet
  • Seamless  LED Video Wall , Concert LED Screen Die Casting Aluminum Cabinet

    Product Details:

    Place of Origin: SHENZHEN , CHINA
    Brand Name: PASSION
    Certification: CE ROHS
    Model Number: P4mm

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotioation
    Price: Negotiation
    Packaging Details: Flight Case & Wooden Case
    Delivery Time: 15 ~ 20 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 5000 square meter per month
    Contact Now
    Detailed Product Description
    Product Name: LED Video Wall Weight: 4.8Kg
    Display Function: Video Application: Stage
    Refresh Rate: 3840Hz IP Rate: 43
    Brightness: 1200CD/SQM Material: Aluminum

    Seamless LED Video Wall , Concert LED Screen Die Casting Aluminum Cabinet



    Details of  LED Video Wall :

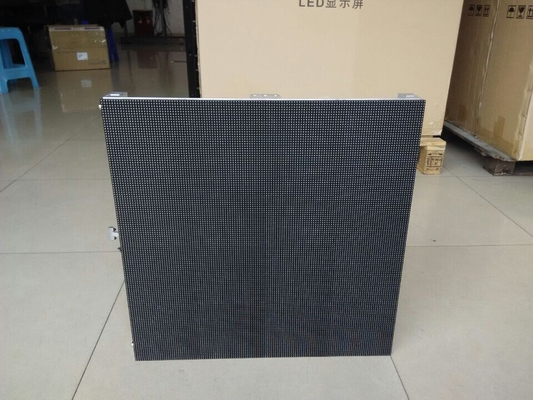

    1: Aluminum cabinet made by US has more accurate tolerance on structure than that made by metalplate processing, which ensures the flatness of the entire LED screen.



    2: light weight less than kg enable one-person installation easier and simpler, save installation time. But traditional LED screen is over 25 Kg with the same size.



    3: Adopting the CNC aluminum processing, it is high strength, high tenacity, high accuracy and not easy to distort. The thickness of our cabinet is 63mm, the traditonal cabinet is 160mm.

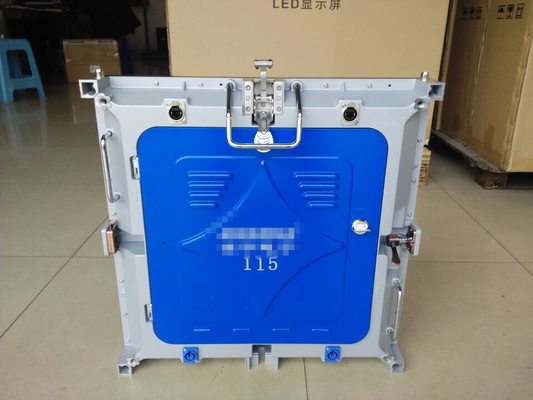

    4: Adopting quick locking mechanism on the Up, down, left and right connection. You can install one cabinet with high accuracy in 10 seconds. Cabinet splicing and wiring connection is fast and reliable. Not only beautiful appearance but also a real sense of the rapid disassembly.





    Specification of LED Video Wall :



    Indoor P4mm LED screen specification
    LED Module Pitch/mm PH4
    Module size/mm 128*128
    Density of pixel/(dots/m2) 62500
    Pixel composition 1R1G1B
    Led encapsulation SMD2121 3 IN 1
    Resolution of module 60*60
    LED Screen Optimum viewing distance 3~20M
    View angle H:±160°;V±120°
    Average power consumption 600W/sqm
    Max power consumption 1600W/sqm
    Module quantity 4*4pcs
    Size of cabinet/mm 512*512
    Resolution of cabinet 128*128
    Cabinet Material Iron Cabinet (Aluminum Cabinet optional)
    Weight of cabinet 12Kg
    Driving method 1/16 scan constant current
    Frame frequency / Hz/S ≥60
    Refresh frequency / Hz/S 800~2000
    Brightness 1200cd/m2
    Operating temperature –20C°~60C°
    Storage temperature –40C°~70C°
    Operation humidity 10%-90%
    Storage humidity 10%-90%
    IP Rrating (Front/Rear)  IP43
    Working vlotage AC220V / AC110V ±10%
    Grey scale/color depth displaying colors≥16.7M(synchronized); 14bits
    Brightness adjustment 256 levels of each color(manually)
    Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
    Control system linsn/Colorlight/Nova(sending card,receiving cards and Hubs)
    Average of non-failure life ≥50,00h
    Life span ≥100,000h
    Functionaless dot rate ≤0.0001
    Control distance CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km





    Supply Ability of LED Video Wall :



    5000 Square Meter/Square Meters per Month







    FAQ :

    Q1. What is refresh rate?

    A: The refresh rate is the number of times a display's image is repainted or refreshed per second. As it denotes a frequency of a process, the refresh rate is expressed in hertz. For instance, a refresh rate of 75 Hz means the image is refreshed 75 times in one second.

    Q2. What is viewing angle?

    A: The Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance.

    Q3. What are Pixel Pitch and Pixel Density?

    A: The Pixel Pitch is the distance between neighboring pixels. The Pixel Density is the quantity of pixels per square meter.

    Q8: What is LED display?

    A: The LED display is a new kind of information and communication media, which is composed of the array of LED devices, used to display text, images, videos, TV programs, live broadcast, etc.







    Product features of LED Video Wall :



    1. High quality LED chip and high anti-static electricity capacity.



    2. Large viewing angle and smooth displaying provide excellent visual effect from every angle. High brightness led, the brightness is more than 2000cd/m2, and the wavelength range is ±1.5NM, same batch the LED brightness rate is 1:1.2, 130 wide viewing angle.





    Seamless  LED Video Wall , Concert LED Screen Die Casting Aluminum Cabinet
