|Place of Origin:||Shenzhen, China|
|Certification:||CE , ROSH|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Wooden case or Flight case|
|Delivery Time:||15 days after deposit payment arrival|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Usage:||Outdoor||Materail:||Iron Or Aluminum|
|Cabinet Size:||960mm * 960mm||Working Voltage:||AC100-240V|
|Tube Color:||Full Color||Display Function:||Video|

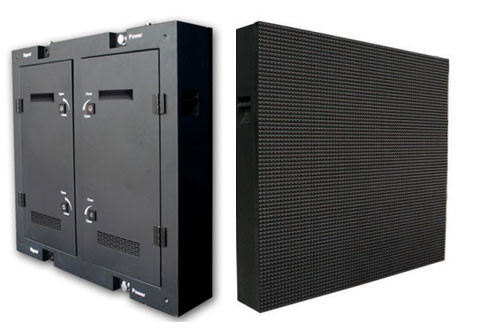

outdoor programmable led signs,
outdoor led advertising signs
1. Advanced SMT encapsulation technology ensure the led lamps in good uniformity,and wide view angle,lower power consumption,energy-saving more than 30%
2. Good waterproof, IP65 grade, Anti-corrosion,Antifogging,suit for outdoor different weather condition,keep long life time.
3. High pixel density,High brightness and Long view distance,can be seen from far away 100 meters
4.Good protection with soft mask and thick bongrace,avoid to be broken and to hurt sportsmen
5. Brightness can be adjusted automatically according to different surrondings,
can be set to open and close the screen on fixed automatically
6. Widely used for commercial advertising, match live broadcasting,sport rebroadcast, company logo, for fixed or for rental use,panel size can be customized according different requirements.
|Density of pixel/(dots/m2)||10000|
|Resolution of module||16*16|
|LED Screen||Optimum viewing distance||8~100M|
|Average power consumption||300W/sqm|
|Max power consumption||1000W/sqm|
|Module quantity||6 * 6pcs|
|Size of cabinet/mm||960*960|
|Resolution of cabinet||96*96|
|Cabinet Material||Iron Cabinet (Aluminum Cabinet optional)|
|Weight of cabinet||55Kg|
|Driving method||1/4scan constant current|
|Frame frequency / Hz/S||≥60|
|Refresh frequency / Hz/S||600~2000|
|IP Rrating (Front/Rear)||IP65/ IP54|
|Working vlotage||AC220V / AC110V ±10%|
|Grey scale/color depth||displaying colors≥16.7M(synchronized); 14bits|
|Brightness adjustment||256 levels of each color(manually)|
|Input signal||RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc|
|Control system||linsn/Colorlight/Nova(sending card,receiving cards and Hubs)|
|Average of non-failure life||≥50,00h|
|Functionaless dot rate||≤0.0001|
|Control distance||CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km|
All our module chip are from Taiwan Epistar. We guarantee our high quality from the first step !

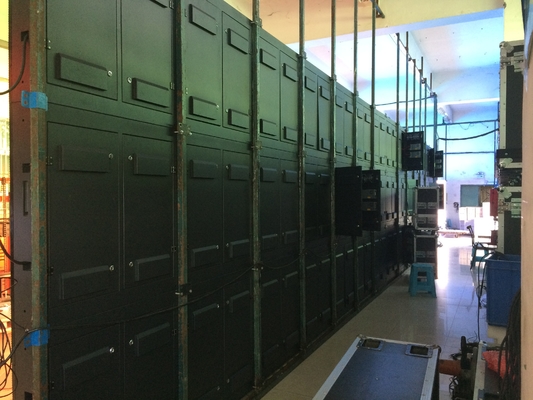

All our modules are strictly tested one by one !
We have special workers to make sure every module works well !
1. Your inquiry related to our products or price will be replied in 8hrs.
2. OEM & ODM,any your customized lightings we can help you to design and put into product.
3. Distributoership are offered for your unique design and some our current models.
4. Protection of your sales area,ideas of design and all your private information.
5. Best cost performance and perfect service before and after sales.
