|Place of Origin:||Shenzhen , China|
|Brand Name:||PASSION LED|
|Certification:||CE , RHos|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Carton or Wooden Case|
|Delivery Time:||5 days sine the deposit arrival|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Unit Size:||320mm * 160mm||Weight:||1Kg|
|LED Brand:||NATIONSTAR||LED Type:||Outdoor3535 SMD 3 In 1|
led matrix display module,
led sign modules

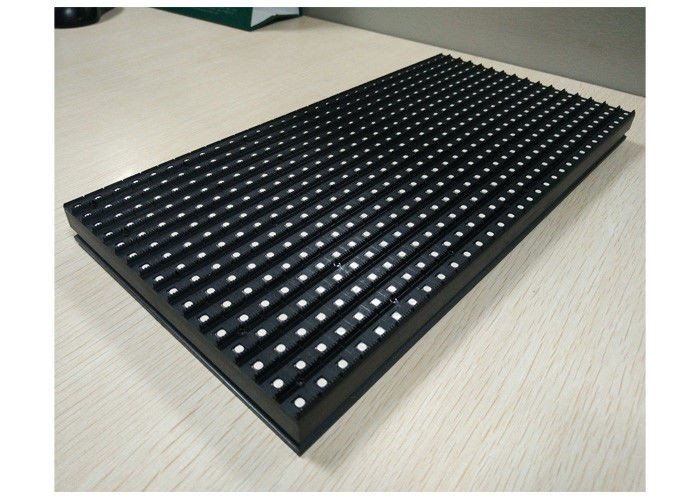

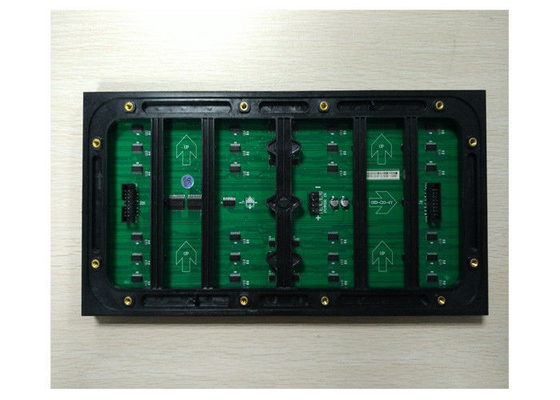

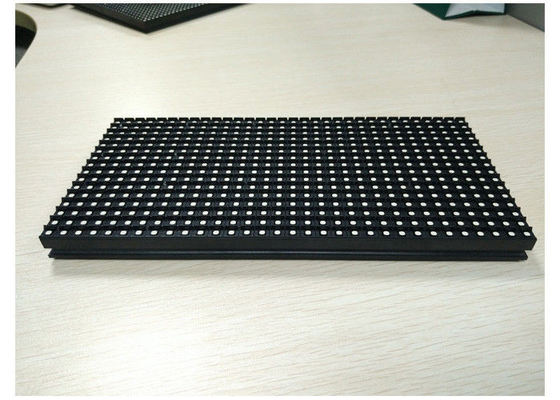

Gold Wire Full Color LED Display Module Nationstar With MBI5124 IC 1/2 Scan
Smd led module Quick Details:
1. Waterproof led module with Smd3535 technology.
2. 6500 cd/sqm High brightness & more than 1200Hz refresh rate.
3. Factory price with good quality .
4. 2 years warranty, lifetime maintance.
Stable & Good quality: The quality of all our raw materias is stable, and our strick production qualithy control. so the result is good and we also have a good reputation in this industry
Supporting many play files: videos, texts, pictures,graphics, PPT, Flashes and any sources
from TV,VCD,DVD and so on
HD & high refresh rate: the resolution for each led module is 32*16, so if the viewing
distance is 10 meters or more, the effect is good enough for this model.
Full color: adopt SMD3535 3 in 1 led lamps, excellent color performance and show the
content of the video best and reality
consumption; wide viewing angle, each module can be repaired, so it is easy and not will cost you much
1. We are led screen manufacturer for More than 10 years, we have rich experience in
outdoor and indoor led display, quality is guaranteed
2. Price advantage, Because we are factory, our price is 5%-10% lower than middleman and
trafficker at same level
3. Professional sales and technical team of 35 people to ensure perfect results
4. Our Tenet: put coustomers in mind, Customer requirements are fundamental to us, we make
different solutions accroding different requirements of customers
1. personalized and complete solution for your case
2. factory price and good quality
3. convenient and fast installation ,easy maintenance
4. 2 years wanrranty
|Color||Full-color real pixels|
|Recommended viewing distance||10-70m|
|Best viewing angle||H: 120°; V:120°|
|Maximum power consumption||850w|
|Average power consumption||420w|
|Standard cabinet resolution||96*96|
|Driving method||1/2Scan, Constant Current|
|Video frame rate||≥60 Hz|
|White balance brightness||≥6500cd|
|Ingress protection||Front:IP 67; Back:IP65|
|Input voltage||110-220V AC±10%|
|Gray scale /Color||Display Colors ≥16.7N(Synchronize)|
|Input signal||RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc|
|Control system||PCTV+DVI video card+control card+fiber|
|Life time||>100,000 Hours|
Installation servive, usually we don't take charge of installing overseas, but we can
provide technical support for you. if you need installation service, we can send our
technicians to your country, but the customers need take charge of the cost
Lifetime free maintenance and software upgrade service.
we will reponse you in 8 houres if you have any question about the led screen,
maintenance guidance and problem solution supplied in 48 hours.
Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again
Free technical training for how to use and handle the software.
Customer satisfaction tracking report.
1. Except this model, are there any other models?
yes, For indoor led screen we have p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10
For outdoor led screen we have p5 p6 p8 p10
2. Are you factory? and your warranty?
yes we are 10 years factory, 2 years warranty and lifetime maintenance
3. What's the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on
4. What's your delivery time?
Wthin 7-21 days after we receiving deposit
5. What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air or sea.
Contact Person: Mr. Peter
Tel: 86 18929461680
