Name: Indoor Full Color High Resolution Led Display P1.875 Die Casting Aluminum Cabinet
Brand: PASSION
SKU: P1.875mm

Home Products HD LED Display

Indoor Full Color High Resolution Led Display P1.875 Die Casting Aluminum Cabinet

Product Details:

Place of Origin:	Shenzhen , China
Brand Name:	PASSION
Certification:	CCC , CE , ROHS
Model Number:	P1.875mm

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Export Wooden Case & Flight Case
Delivery Time:	10 - 20 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	2000SQM/Month

Contact Now

Detailed Product Description

Grey Scale:	16 Bits	Material:	Die Casting Aluminum
Brightness:	800CD/sqm	Referesh Rate:	3840Hz
Usage:	Indoor	Tube Chip Color:	Full Color
Display Function:	Video	Warranty:	2 Years
High Light:	high definition led display , full hd led screen

High Definition Indoor Full Color LED Display P1.875 Die Casting Aluminum Cabinet

Ultra wide angle of view
Ultra wide angle of view,from any perspective images are clear natural,to experience the great subversive viewing experience
Top-lever brightness control
Expansion of brightness adjustment range increase the brightness and contrast ratio of picture. This function can fully perform delicate change of brightness,so it can present a vivid clear picture to audience.

Detail Specifications of the HD LED Display:

Indoor P1.875 led screen
Physical parameters:
Pixel pitch	P1.875
Physical density	284440 dots/m2
Led packing	SMD1515
LED composition	1R1G1B
Cabinet size	480x480mm
Caninet weight	5kg
Cabinet material	Die-casting aluminum
Optoelectronic parameters:
AC operation voltage	100~120V/220~240V
Scan	1/32S
Brightness	600cd~1000cd/m2
Gray level	16 bit
View distance	1.8~15m
View angel	140 degree horizon/vertical
Refresh rate	≥1920
Life span	100,000h
Frame frequency	≥60Hz
IP rate	IP30

Pixel Pitch: PH1.875mm
Cabinet Size: 480 x 480 x 85mm
1. Locating slot work with dowel pin to ensure good flatness
2. 16bit gray scale processing, color expression more naturally
3. Gapless installation, wider viewing angle, good color uniformity
4. Soft images,green and environmental protection
5. High refresh rate, remove ghost without trailing

Natural Color
16bits Gray processing techology,with 65536 grayscale,excessive nature,according to the video picture of extremely fine texture,looked more comfortable.
High definition display
It delivers a truly amazing pciture in every details with extrodinary pixels producing an image that is HD quality in an LED screen

16:9 Design and Good Uniformity

16:9 design. Cabinet's 16:9 resolution is specialized for command center. Perfect replacement for LCD display.

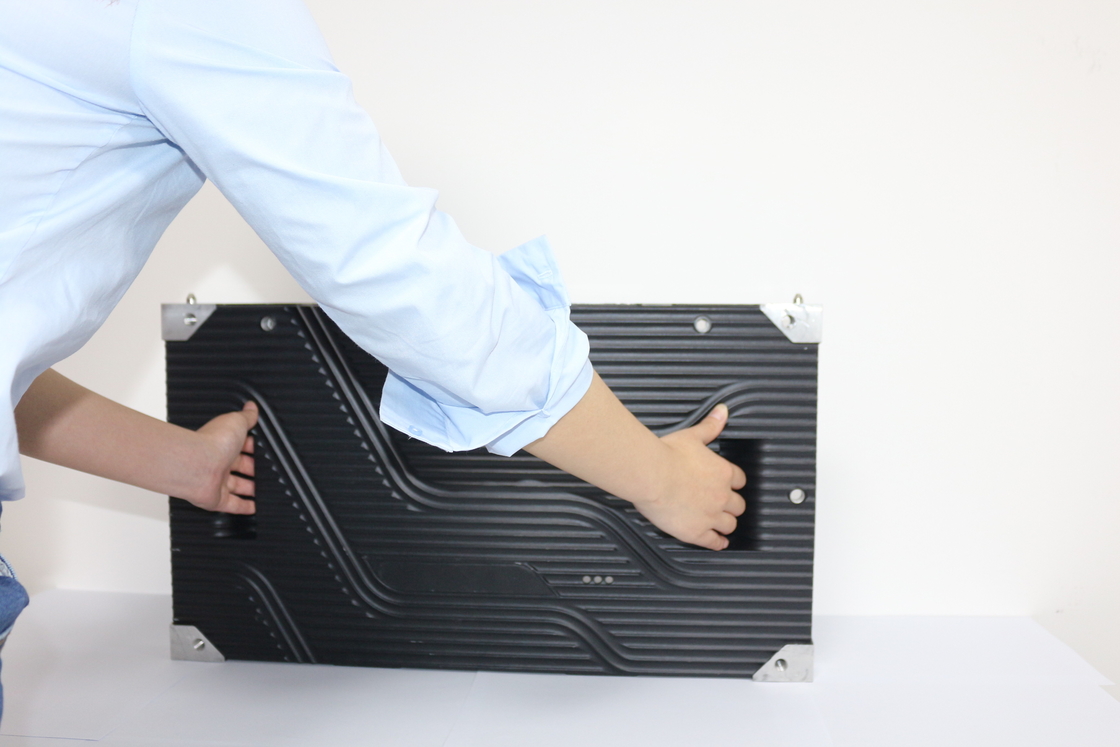

Die cast aluminum cabinet, guarantee you a flat and seamless screen.

Good uniformity. Dot-to-dot correction technology provide you pure image with great gradation.
