|Place of Origin:||Shenzhen, China|
|Certification:||CCC, CE, ROHS|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Flight case, export wooden case|
|Delivery Time:||10-20 working days|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Cabinet Size:||976mm * 976mm||Pixel Pitch (mm):||7.62|
|Working Voltage:||AC 100 ~ 240V||Pixel Matrix Per M2:||17222|
led curtain video wall,
rgb led video wall

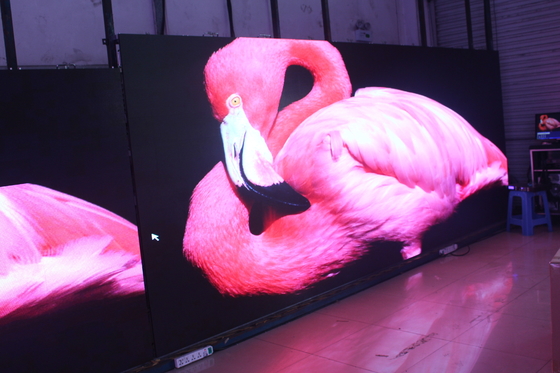

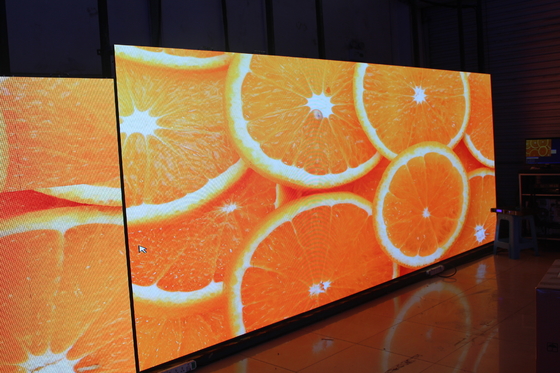

P7.62mm Indoor LED Video Wall , LED Curtain Wall Display Hang Up Installation
What is the advantages of our Indoor LED Video Wall?
1. High quality:
our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate less than 0.0001. MTBF more than 10000 hours.we assure high brightness and long lifespan.
2. Perfect Display Effect:
High brightness and clearly led display effect with easy use control system which allow you easy become enviable led display experts.
3. Attractive Factory Price:
We are a professional manufacturer, has its own factories and production lines. Without middlemen and trading companies, our price is more competitive, quality is more reliable. Our price is more competitive, quality is more reliable.
4. Auto equipment:
PASSION LED has several auto production lines equipment with Taiwan auto-encapsulate machine, Taiwan Chang-Yu handler, and the production of LED meets the demand of high quality standard LED display.
Why choose us?
1. High quality:100% tested before shipping, Best quality LED chip tube the CREE, SILAN, OPTO, EPISTAR assuring high brightness and long life span. industry-leading
2. Strong productivity:50000 pieces per month, Shorter delivery time
3. Good price:our price is 10% lower than the market because of the introduction of full
automatic production line with the characteristics of reducing the cost of labor and management.
4. Light weight:aluminum cabinet greatly saving fright cost and conveniently installing.
5. Stable performance:our most basic guarantee:the aging time exceeding 24 hours. Malfunction
dot rate less than 0.0001. MTBF more than 1000 hours.
6. Supporting different formats of images and videos:Flash, WAV/MIDI, Videos from TV and other equipments.
8. Any questions can be answerd quickly within 24 hrs.
9. ODM and OEM accept(best service)
10. Product variety
Application of HD LED screen:
Indoor HD led display is also called led TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 400 x 300mm, Die-casting aluminum structure with high precision and cooling effect.
|Physical Parameter||Pixel Configuration||1R1G1B|
|Pixel Pitch (mm)||7.62|
|Pixel Matrix per m2 (dots)||17222|
|Pixel Matrix per Module||32*32|
|Pixel Matrix per Panel||128*128|
|Module Dimensions (L*W) / (mm)||244*244|
|Module Quality per Cabinet||4*4|
|Panel Dimension (L*W) / (mm)||976*976|
|Panel Material||Iron / Aluminum|
|Panel Weight (Kg)||45|
|Electronic Parameter||Color Grayscale (Bit)||14|
|Gray Scale per Color (Level)||16384|
|Refresh Rate (Hz)||1280|
|Frame Frequency (Hz)||50/60|
|Signal Transmission Distance (m)||CAT5 cable:<100m；Single mode fiber:<10km|
|Optical Parameter||Brightness (cd/m2)||≥1500|
|Color Temperature (K)||6500-7500|
|Optimal Horizontal Viewing Angle (°)||160|
|Optimal Vertical Viewing Angle||160|
|Electrical Parameter||AC Input Voltage (V)||100~240|
|AC Input Frequency (Hz)||50/60|
|AC Input Power Maximum Value (W/m2)||500|
|AC Input Power Typical Value (W/m2)||150|
|Circumstance Parameter||Storage Temperature (℃)||-40~+60|
|Operating Temperature (℃)||-20~+50|
|Storage Humidity (RH)||10%~90%|
|Operating Humidity (RH)||10%~90%|
|IP Rating (Front / Rear)||IP63 / IP54|
|Lifrtime Typical Value (Hrs)||100,000|
|Installation type||Cabinet Installation Type||Fixed|
|Maximum Number of Panel for Lifting||6|
