Product Details:
Place of Origin: Shenzhen, China
Brand Name: PASSION
Certification: CCC, CE, ROHS
Model Number: P5mm
Payment & Shipping Terms:
Minimum Order Quantity: 5SQM
Price: Negotiation
Packaging Details: Flight case, export wooden case
Delivery Time: 10-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000sqm/month
Contact Now
Detailed Product Description
Usage: Indoor Meterial: Iron
Cabinet Size: 960mm * 960mm Refresh Rate: 3840
Working Voltage: AC 100 ~ 240V Brightness: 2000CD/sqm
High Light:

led curtain video wall


rgb led video wall

Commercial LED Wall Panel System , P5 LED Video Wall SMD Iron Billboard



Quick Detail:

1. ≤1mm surface level up, smooth video

2. Long lifespan up to 100,000 hours

3. Front or Rear Access Service

4. 2 years warranty

5. Perfect quality and stability, 24/7 running

6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION



SMD 3 in 1, 32*32dots, IP31 ,P5 Video Indoor Full Color LED Display With High Contrast ≥2000:1





1. With good lightening accordance and no mosaic.

2. Can play different formats of image files, flash, video signal from TV, video and other equipments.

3. Different video frequency can be changed freely at the same time, and the image can be enlarged and


4. High brightness, and can be adjustable, meets the needs of customer's requirements.

Uses real pixels rather than virtual pixels, better viewing effect .





1. Indoor LED Display Technical Parameter

Model No. PI-P5
Pixel Pitch 5mm
Module Size 160mm×160mm
Module Resolution(Pixel) 32dots×32dots
Pixel Density 40000dots/m2
LED Type SMD 3 in 1
Pixel Configuration 1R1G1B
Wavelength (R.G.B) R:625±2nm G:525±2nm B:470±2nm
Drive Mode Dynamic 1/8 Duty Constant Current
Cabinet Size 800×640×135mm
Cabinet Resolution 160dots×128dots
Brightness ≥2000cd/m2
Contrast ≥2000:1
Viewing Angle 140°(Horiztal )/45°(Vertical )
Best Viewing Distance ≥5 m
Grey Scale 10bits/1024levels
Color Capability 16777216
Color Temperature 5000-9300K
Maximum Power Consumption 2000 W/m2
Average Power Consumption 650 W/m2
Working Voltage AC 220V/110V s±15% 50-60 HZ
Frame Frequency 60-85HZ
Refresh Frenquency 240-1000HZ
Brightness Correction Pixel, Module, Cabinet Correction
Operating Temperature Static:-40°C~+85°C Working:-20°C~+60°C
Operating Humidity 10-90% RH
LED Lifespan 100,000 hours
MTBF ≥50,000 hours
Computer Operation System Win 98/ Win XP/ Win 2000
Video Signal Input RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output RF, S-VideoR, GB, RGBHV, YUV, YC etc.
Graphics Card DVI Graphics Card
Control Distance UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km
Control System LINSN OR DB-STAR
Software LED studio 10.0
Waterproof Level IP31

Wall mount,hung and stand structure



2. Indoor LED Display Module

Dimensions (w x h) 160mmx160mm Resolution (w x h) 32 x 32
Pixel pitch 5mm Pixel Density 40000/㎡
Pixel Configration 1R,1G,1B LED Type SMD3528

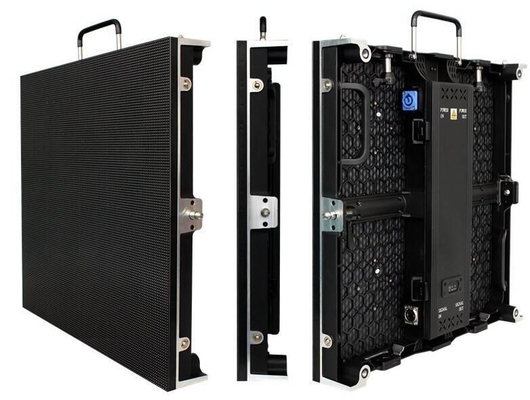

3. Indoor LED Display Cabinet

Dimensions(w x h x d)(mm) 960x960x135 Module Quantity 36
Physical Resolution (w x h) 192 x 192 Physical Pixels (total) 36864
Weight/Panel (kgs) 55 Material Cold rolled steel
Average Power/sqm (watts) 350 Max Power/sqm(watts) 1000



4. Methods for Quality Assurance


a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level


b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range



5. Factory Equipment


Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.


6. Package

Flight case and Fumigation-Free wooden case



7. Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online Remote Support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection





Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;
