Event Stage Front Service LED Display Rental With Aluminum 500mm Cabinet

Event Stage Front Service LED Display Rental With Aluminum 500mm Cabinet

  • Event Stage Front Service LED Display Rental With Aluminum 500mm Cabinet
  • Event Stage Front Service LED Display Rental With Aluminum 500mm Cabinet
Event Stage Front Service LED Display Rental With Aluminum 500mm Cabinet
Product Details:
Place of Origin: Shenzhen, China
Brand Name: PASSION
Certification: CCC, CE, ROHS
Model Number: PR - P3.91
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: flight case; export wooden case
Delivery Time: 15~25 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000Sqm/month
Contact Now
Detailed Product Description
Usage: Indoor Grey Scale: 16Bits
Module Size: 250mm * 250mm Working Voltage: AC100V - 240V
Cabinet Size: 500mm * 500mm , 500mm * 1000mm Refresh Rate: 3840Hz
High Light:

front maintenace led display

,

front access led display

Event Stage Front Service LED Display Rental With Aluminum 500mm Cabinet





Rental & Stage --- Indoor:



PASSION LED Slim Rental Series provide an excellent solution to rental client due to its lightweight and slim shape.Fast and simple setup not only saves installation time but also labor cost saving,Its perfect performance on vivid quality absolutely brings an amazing visual feelings to audiences.





Special Features:



1. High quality table lamp, the product quality is stable, reliable, and guaranteed;
2. Viewing angle of 140 degrees or more, multi direction viewing display effect is consistent;
3. Integrated blanking circuit, effectively eliminate the ghost line;

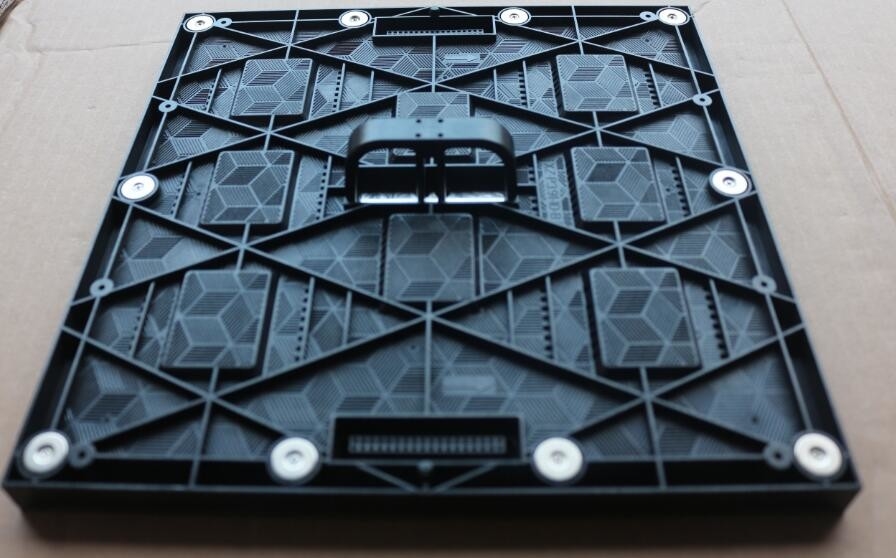

4. Multi rib structure design, to ensure that the product is not easy to tensile deformation, to ensure the integrity of the screen and the consistency of the overall.

5. Support All Media Format and Display Mode:

DVI/HDMI/3G/HD/SD/SDI display mode, applicable for TV program,VCD/DVD and live show.

Smart mode available (optional) to monitor the overall working hours and temperature of each cabinet.





Detail Specifications of Indoor P3.91mm Slim Rental LED Display:



Parameter Value
Physical Parameter Pixel Configuration 1R1G1B
Pixel Pitch (mm) 3.91
Pixel Matrix per m2 (dots) 65536
Pixel Matrix per Module 64*64
Pixel Matrix per Panel 128*128 / 128*256
Module Dimensions (L*W) / (mm) 250*250
Module Quality per Cabinet 2*2 / 2*4
Panel Dimension (L*W*H) / (mm) 500*500*78 / 500*1000*78
Panel Material Die-Casting Aluminum
Panel Weight (Kg) 7
Electronic Parameter Color Grayscale (Bit) 16
Gray Scale per Color (Level) 65536
Refresh Rate (Hz) 1920
Driving Type 1/16
Frame Frequency (Hz) 50/60
Signal Transmission Distance (m) CAT5 cable:<100m;Single mode fiber:<10km
Optical Parameter Brightness (cd/m2) ≥600
Color Temperature (K) 6500-7500
Color Contrast 4000:1
Optimal Horizontal Viewing Angle (°) 160
Optimal Vertical Viewing Angle 160
Electrical Parameter AC Input Voltage (V) 100~240
AC Input Frequency (Hz) 50/60
AC Input Power Maximum Value (W/m2) 800
AC Input Power Typical Value (W/m2) 300
Circumstance Parameter Storage Temperature (℃) -40~+60
Operating Temperature (℃) -20~+50
Storage Humidity (RH) 10%~90%
Operating Humidity (RH) 10%~90%
IP Rating (Front / Rear) IP63 / IP54
Lifrtime Typical Value (Hrs) 100,000
Installation type Cabinet Installation Type Rental
Maximum Number of Panel for Lifting 12 / 6





Our services:



1. Your inquiry about our products or the price will be replied within 8 hours.

2. We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.

3. We will delivery goods as you demand , you can choose the cheaper and more convenient way.

4. Apart from the Indoor Slim Rental LED Display, PASSION LED also offer you All kinds of outdoor LED Display, LED Flexible Display, Indoor LED Display, Indoor/outdoor LED Signs.



Application

Advertising LED display , shopping mall LED display for logo showing , bank &stock exchange LED display for rates showing ,train & bus station , airport ,school message board, telecommunication LED Screen system for information showing and instruction , Stage performance and so on .
