|Place of Origin:||Shenzhen, China|
|Certification:||CCC, CE, ROHS|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Flight case, export wooden case|
|Delivery Time:||10-20 working days|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Name:||Front Maintenance LED Video Wall||Panel Material:||Die-casting Aluminum|
|Cabinet Size:||768mm * 768mm||Refresh Rate:||≥1920|
|Working Voltage:||AC 100 ~ 240V||Brightness:||2000CD/sqm|
front maintenace led display,
front access led display

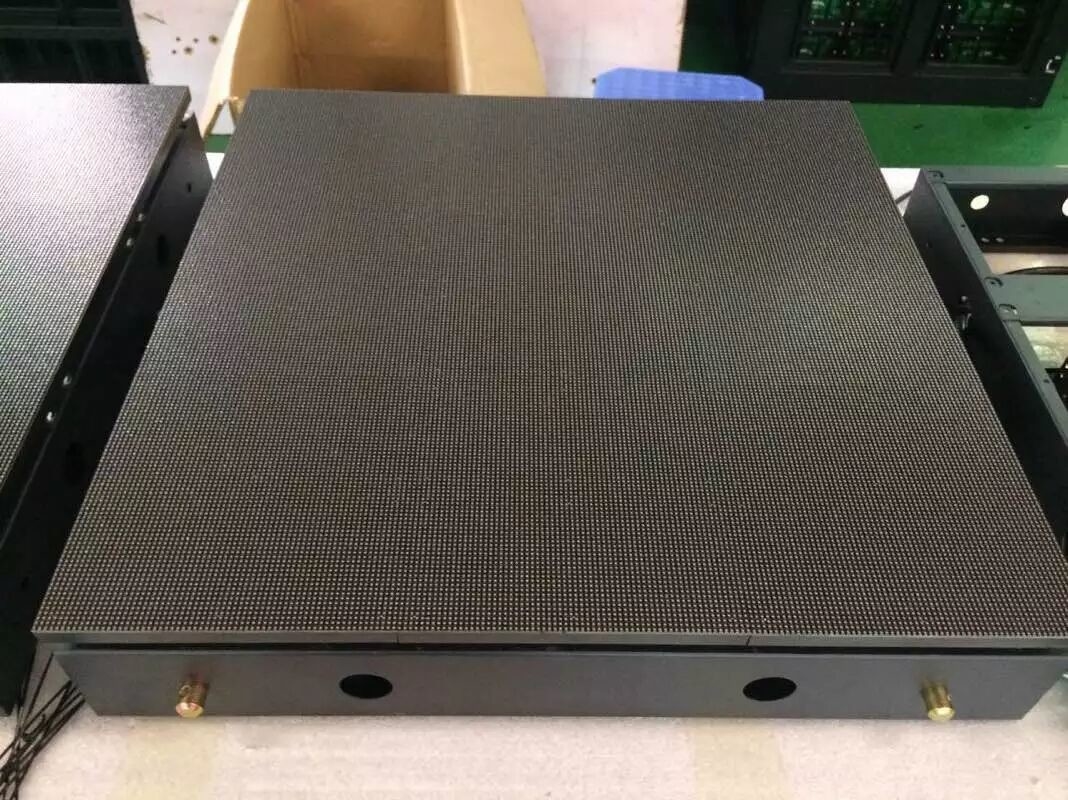

HD Nova Control Front Service LED Display With Breakdown Indicator Lights
Application of HD front service LED screen:
Indoor HD led display is also called led TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 400 x 300mm, Die-casting aluminum structure with high precision and cooling effect.
LED display is a flat panel display, which uses an array of light-emitting diodes as pixels for a video display. Their brightness allows them to be used outdoors where they are visible in the sun for store signs and billboards, and in recent years they have also become commonly used in destination signs on public transport vehicles, as well as variable-message signs on highways. LED displays are capable of providing general illumination in addition to visual display, as when used for stage lighting or other decorative (as opposed to informational) purposes.
Front Maintenance LED Video Wall Features:
1. Ultra-high resolution and wide viewing angel.
2. Fixing and rental use creates more applications.
3. High refresh rate, best scan method for energy saving, perfect gray level.
4. Wireless: seamless installation simplifies the complex inner structure, improving its safety and stability.
5. Thin: it is featured by high strength, toughness, precision and it is hard to be deformed.
6. Easy: the die-casting aluminum cabinet is modular designed, each cabinet of the screen can be easily dismantled and assembled(replaced).
Main features of PASSION HD Front service LED screen:
1. SMD3 in 1 technology widens the viewing angle greatly and makes the screen's surface even flatter.
2. Flatness tolerance of the whole screen is < 0.15 mm, which thoroughly eliminates the mosaic effect.
3. The screen displays delicate and vivid pictures through synchronous adjustment of color and brightness.
4. High contrast and high refresh rate help the LED display's image be rendered without any delay, and without leaving any kind of streaks or trails.
5. Compatible with a variety of signal source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
6. Professional aviation packaging protects the control equipment extremely well
7. Light, ultra-thin display cabinet's total weight is only 15kg.
8. Standard cabinet size is 768mm*768mm.
9. Dustproof design, the screen is rated IP43.
|Physical Parameter||Pixel Configuration||1R1G1B|
|Pixel Pitch (mm)||4|
|Pixel Matrix per m2 (dots)||62500|
|Pixel Matrix per Module||64*32|
|Pixel Matrix per Panel||192*192|
|Module Dimensions (L*W) / (mm)||256*128|
|Module Quality per Cabinet||3*6|
|Panel Dimension (L*W) / (mm)||768*768|
|Panel Material||Iron / Aluminum|
|Panel Weight (Kg)||15Kg|
|Electronic Parameter||Color Grayscale (Bit)||14|
|Gray Scale per Color (Level)||16384|
|Refresh Rate (Hz)||1280|
|Frame Frequency (Hz)||50/60|
|Signal Transmission Distance (m)||CAT5 cable:<100m；Single mode fiber:<10km|
|Optical Parameter||Brightness (cd/m2)||≥2000|
|Color Temperature (K)||6500-7500|
|Optimal Horizontal Viewing Angle (°)||160|
|Optimal Vertical Viewing Angle||160|
|Electrical Parameter||AC Input Voltage (V)||100~240|
|AC Input Frequency (Hz)||50/60|
|AC Input Power Maximum Value (W/m2)||900|
|AC Input Power Typical Value (W/m2)||300|
|Circumstance Parameter||Storage Temperature (℃)||-40~+60|
|Operating Temperature (℃)||-20~+50|
|Storage Humidity (RH)||10%~90%|
|Operating Humidity (RH)||10%~90%|
|IP Rating (Front / Rear)||IP43 / IP31|
|Lifrtime Typical Value (Hrs)||100,000|
|Installation type||Cabinet Installation Type||Fixed|
|Maximum Number of Panel for Lifting||8|
1. Aluminum structure: Light weight, excellent cooling effect
2. High definition, and good stability
3. Good color uniformity andhigh contrast ratio with black led lamp
4. Wide viewing angle: 140° on both vertical and Horizontal directions
5. Portable with handle and side locks design on each panel
(1) Front service structure design help to save a lot of time to do maintenance
(2) Four heat dissipation places help to acheive a good cooling effect

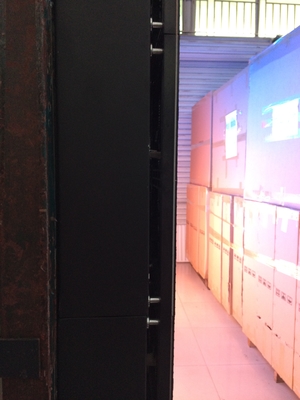

(3) With slim body design hich can save a lot of assemble room
(4) Customized cabinet size enable your choice freely.
