RGB Stage LED Display High Brightness 5000CD/SQM 3840Hz Refresh Rate AC110V

RGB Stage LED Display High Brightness 5000CD/SQM 3840Hz Refresh Rate AC110V

RGB Stage LED Display High Brightness 5000CD/SQM 3840Hz Refresh Rate AC110V

Product Details:

Place of Origin: SHENZHEN , CHINA
Brand Name: PASSION
Certification: CE ROHS
Model Number: P3.91mm

Payment & Shipping Terms:

Minimum Order Quantity: Negotioation
Price: Negotiation
Packaging Details: Flight Case & Wooden Case
Delivery Time: 15 ~ 20 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000 square meter per month
Contact Now
Detailed Product Description
Other Name: RGB Stage Background LED Display Panel Weight: 13Kg
Display Function: Video Application: Stage
Refresh Rate: 3840Hz IP Rate: 43
Brightness: 5000CD/SQM Material: Aluminum
High Light:

stadium led display

,

stage background led screen

high brightness RGB stage large outdoor led display screens with 500mm * 1000mm panel





Specification of RGB Stage LED Display:

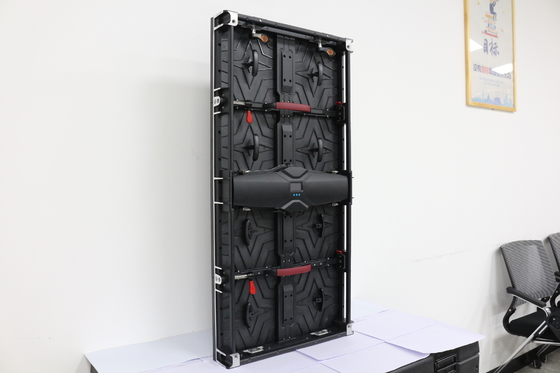

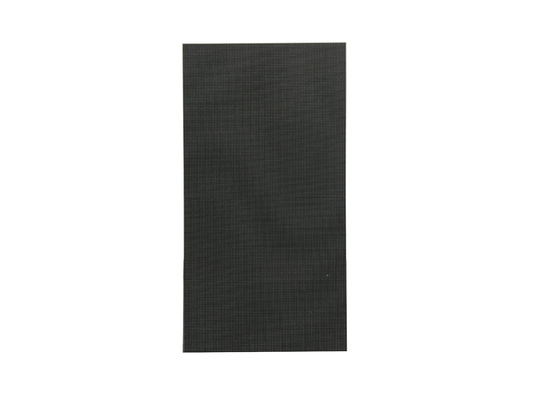

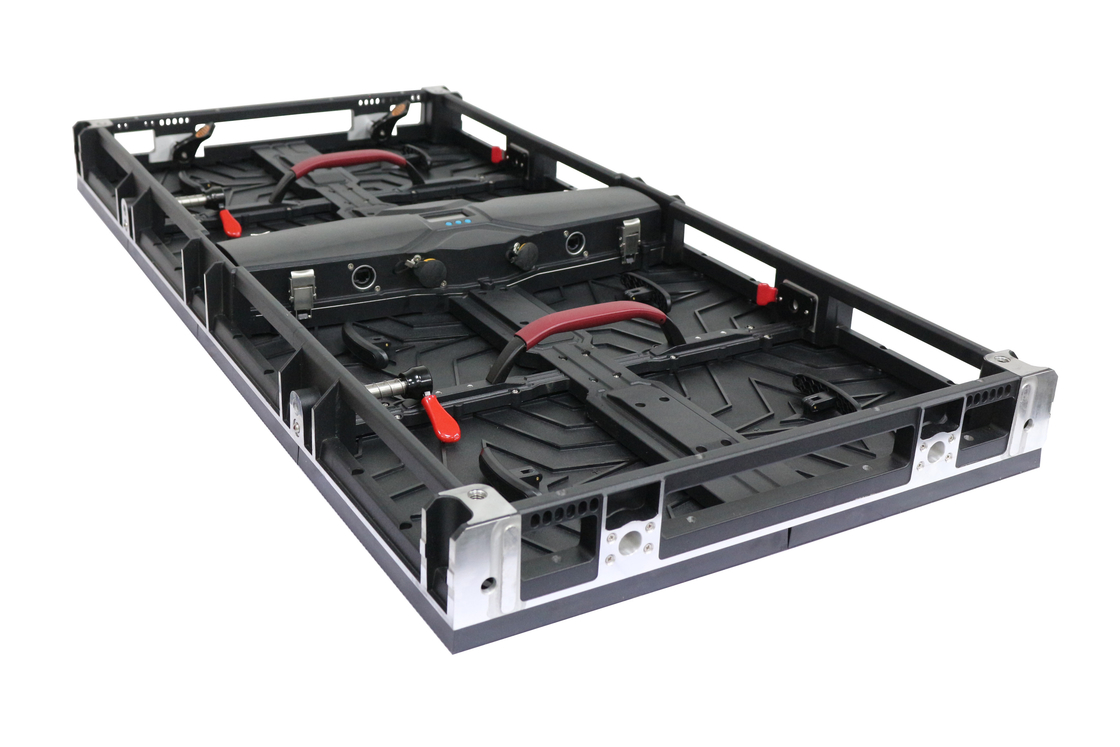

outdoor slim rental P3.91mm LED screen (unit module size: 250mm * 250mm and unit cabinet size: 500mm * 1000mm)
LED Module Pitch/mm PH3.91
Module size/mm 250*250
Density of pixel/(dots/m2) 65536
Pixel composition 1R1G1B
Led encapsulation SMD1921 3 IN 1
Resolution of module 64*64
LED Screen Optimum viewing distance 3~38M
View angle H:±160°;V±120°
Average power consumption 300W/sqm
Max power consumption 800W/sqm
Module quantity 2* 4pcs
Size of cabinet/mm 500*1000
Resolution of cabinet 128*256
Cabinet Material die-casting aluminum cabinet
Weight of cabinet 13Kg
Driving method 1/16 scan constant current
Frame frequency / Hz/S ≥60
Refresh frequency/ Hz/S 1920
Brightness 5000cd/m2
Operating temperature –20C°~60C°
Storage temperature –40C°~70C°
Operation humidity 10%-90%
Storage humidity 10%-90%
IP Rrating (Front/Rear) IP65
Working vlotage AC110V ±10%
Grey scale/color depth displaying colors≥16.7M(synchronized); 14bits
Brightness adjustment 256 levels of each color(manually)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system Novastar
Average of non-failure life ≥50,00h
Life span ≥100,000h
Functionaless dot rate ≤0.0001
Control distance CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km





Supply Ability of RGB Stage LED Display :



5000 Square Meter/Square Meters per Month







FAQ :

Q1. What is refresh rate?

A: The refresh rate is the number of times a display's image is repainted or refreshed per second. As it denotes a frequency of a process, the refresh rate is expressed in hertz. For instance, a refresh rate of 75 Hz means the image is refreshed 75 times in one second.

Q2. What is viewing angle?

A: The Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance.

Q3. What are Pixel Pitch and Pixel Density?

A: The Pixel Pitch is the distance between neighboring pixels. The Pixel Density is the quantity of pixels per square meter.

Q8: What is LED display?

A: The LED display is a new kind of information and communication media, which is composed of the array of LED devices, used to display text, images, videos, TV programs, live broadcast, etc.







Product features of RGB Stage LED Display:



1. High quality LED chip and high anti-static electricity capacity.



2. Large viewing angle and smooth displaying provide excellent visual effect from every angle. High brightness led, the brightness is more than 5000cd/m2, and the wavelength range is ±1.5NM, same batch the LED brightness rate is 1:1.2, 130 wide viewing angle.

RGB Stage LED Display High Brightness 5000CD/SQM 3840Hz Refresh Rate AC110V
