PASSION LED LIGHTING INTERNATIONAL LIMITED
 |
| Place of Origin: | Shenzhen , China |
| Brand Name: | PASSION LED |
| Certification: | CE , RHos |
| Model Number: | P1.28mm, P1.875mm |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton or Wooden Case |
| Delivery Time: | 5 days sine the deposit arrival |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000PCS/month |
| Pixels: | 1.25mm | Display Function: | Video,Graphics,Text,app,static |
|---|---|---|---|
| Screen Dimension: | Customized | Tube Chip Color: | Full Color |
| Application: | Adervertising,Live Show,Competition/Advertising,Super Mall,rental Led Display | Brightness: | 800nit |
| Color: | Full Color | Refresh Rate: | 3840 |
| High Light: | led video wall module,led sign modules |
||

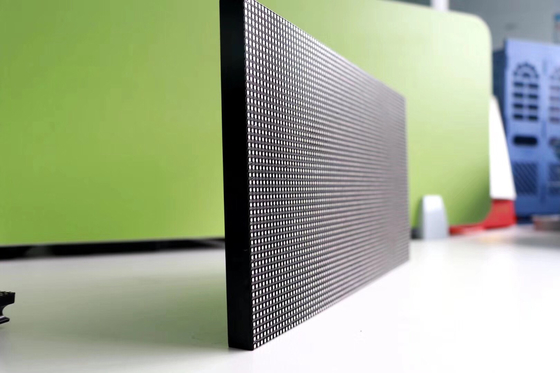

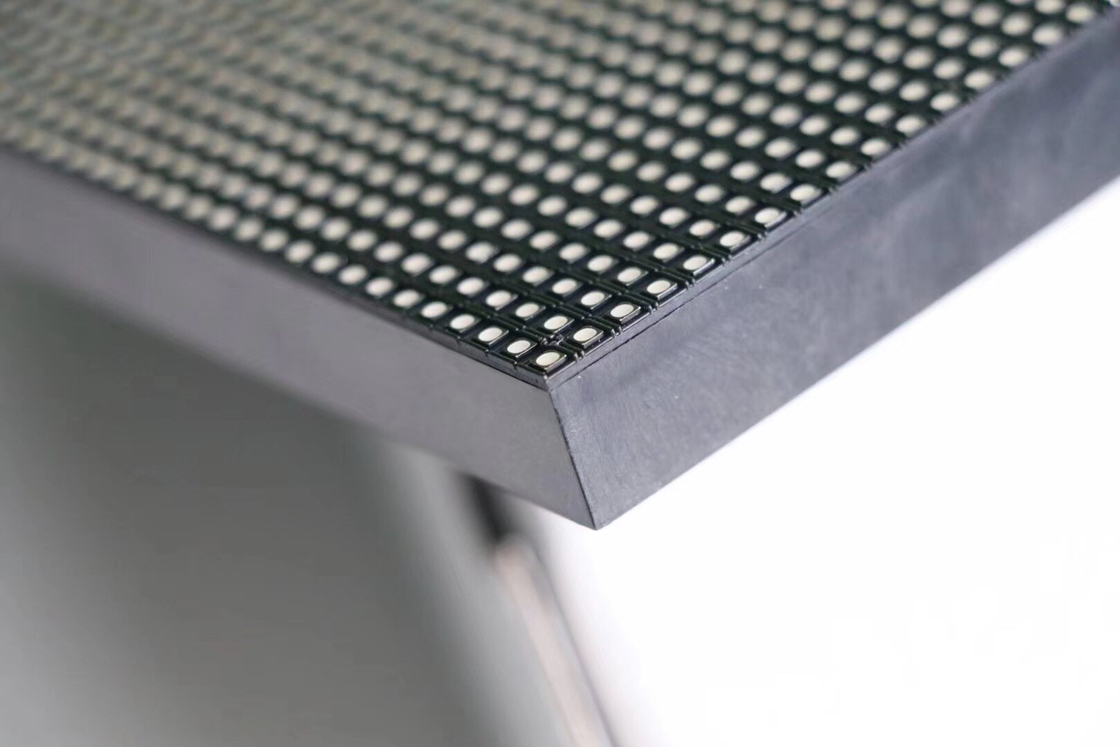

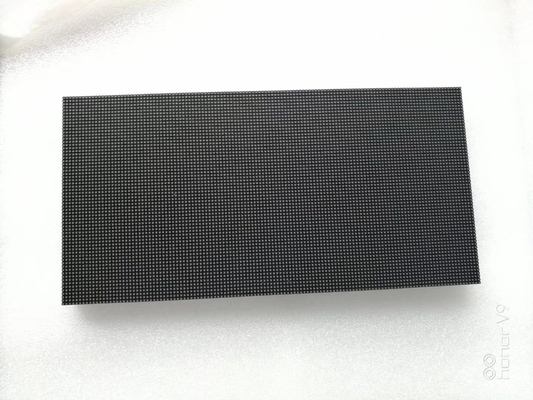

High Refresh Rate LED Module RGB Full Color Led Customized Dimension Display Module
Application of HD LED Display:
PASSION LED P1.92 indoor HD LED display is also called HD LED TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 400 x 300mm, Die-casting aluminum structure with high precision and cooling effect.
High definition display
It delivers a truly amazing pciture in every details with extrodinary pixels producing an image that is HD quality in an LED screen
Natural Color
16bits Gray processing techology,with 65536 grayscale,excessive nature,according to the video picture of extremely fine texture,looked more comfortable.
| Pixel Configuration | SMD1010 |
| Pixel pitch(mm) | 1.25mm |
| Pixel density(dots/m2) | 640000 |
| Module resolution(W×H) | 160×135 |
| Module size (mm) | 200(W)×168.75(H) |
| Module weight (kg) | 0.8 |
| Maximum power consumption of the module(W) | 40 |
| Module of cabinet (W×H) | 3×2 |
| Cabinet resolution(W×H) | 480×270 |
| Cabinet size (mm) | 600(W)×337.5(H)×86(D) |
| Cabinet area(m2) | 0.2 |
| Cabinet weight (kg) | 7.8 |
| Cabinet level up degree(mm) | ≤0.2 |
| Maintenance mode | Front/Rear |
| Cabinet raw material | Die-casting aluminum |
| Single-point brightness correction | YES |
| Single - point color correction | YES |
| White Balance Brightness (nits) | ≥800(6500K) |
| Color Temperature (K) | 3200—9300 (adjustable) |
| Viewing Angle (Horizontal / Vertical) | 160/160 |
| Deviation of center distance of light - emitting | <3% |
| Brightness / chromaticity uniformity | ≥97% |
| Contrast | 4000:1 |
| Peak power consumption (W / m2) | 800 |
| Average power consumption (W / m2) | 250 |
| Power supply requirements | AC90~264V,frequency 47-63(Hz) |
| Frame rate (Hz) | 50&60 |
| Drive mode | Constant drive,1/27 |
| Grayscale level | 65536 |
| Refresh rate (Hz) | ≥3840 |
| Number of color processing bits | 16bit |
| Video playback capabilities | 2KHD,4KHD |
| Operating temperature / humidity range (℃ / RH) | -20 – 60 / 10%-85%RH |
| Storage temperature / humidity range (℃ / RH) | -20 – 60 / 10%-85%RH |
| Applicable standards | CCC,CE,RHos |
Top-lever brightness control
Expansion of brightness adjustment range increase the brightness and contrast ratio of picture. This function can fully perform delicate change of brightness,so it can present a vivid clear picture to audience.
1. Gapless installation, wider viewing angle, good color uniformity
2. Soft images,green and environmental protection
3. High refresh rate, remove ghost without trailing
4. Locating slot work with dowel pin to ensure good flatness
After-sale Service:
Installation servive, usually we don't take charge of installing overseas, but we can
provide technical support for you. if you need installation service, we can send our
technicians to your country, but the customers need take charge of the cost
Lifetime free maintenance and software upgrade service.
we will reponse you in 8 houres if you have any question about the led screen,
maintenance guidance and problem solution supplied in 48 hours.
Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again
Free technical training for how to use and handle the software.
Customer satisfaction tracking report.
