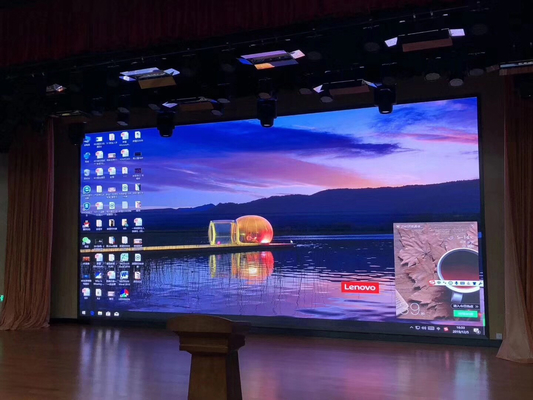

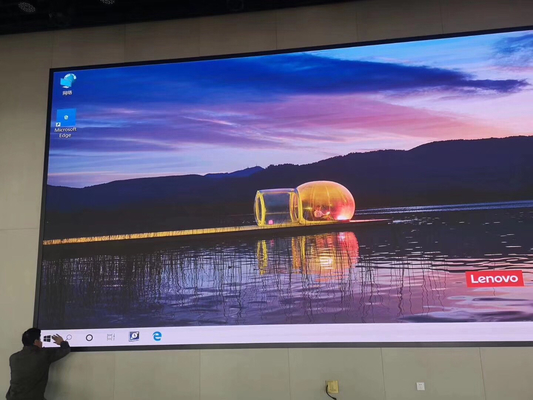

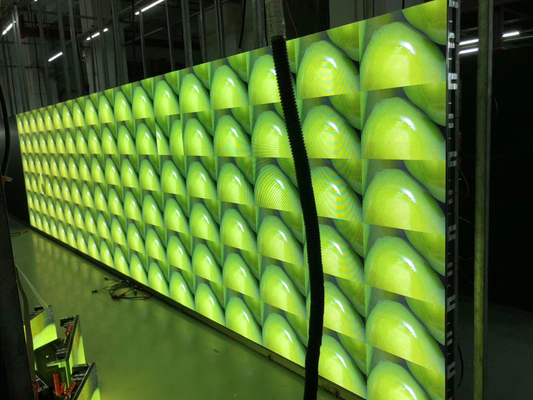

Seamless Stage LED Display , Church LED Video Wall With Slim Aluminum Cabinet

Seamless Stage LED Display , Church LED Video Wall With Slim Aluminum Cabinet

Seamless Stage LED Display , Church LED Video Wall With Slim Aluminum Cabinet
Seamless Stage LED Display , Church LED Video Wall With Slim Aluminum Cabinet
Seamless Stage LED Display , Church LED Video Wall With Slim Aluminum Cabinet
Product Details:
Place of Origin: SHENZHEN , CHINA
Brand Name: PASSION
Certification: CE ROHS
Model Number: P4mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotioation
Price: Negotiation
Packaging Details: Flight Case & Wooden Case
Delivery Time: 15 ~ 20 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000 square meter per month
Contact Now
Detailed Product Description
Product Name: LED Video Wall Display Function: Video
Application: Stage Refresh Rate: 3840Hz
Brightness: 1200CD/SQM Material: Aluminum
High Light:

stadium led display


stage background led screen

Seamless Church LED Video Wall , Event Stage LED Screen With Slim Aluminum Cabinet



Supply Ability of LED Video Wall :


5000 Square Meter/Square Meters per Month



Details of  LED Video Wall :


1: Aluminum cabinet made by US has more accurate tolerance on structure than that made by metalplate processing, which ensures the flatness of the entire LED screen.


2: light weight less than kg enable one-person installation easier and simpler, save installation time. But traditional LED screen is over 25 Kg with the same size.


3: Adopting the CNC aluminum processing, it is high strength, high tenacity, high accuracy and not easy to distort. The thickness of our cabinet is 63mm, the traditonal cabinet is 160mm.


4: Adopting quick locking mechanism on the Up, down, left and right connection. You can install one cabinet with high accuracy in 10 seconds. Cabinet splicing and wiring connection is fast and reliable. Not only beautiful appearance but also a real sense of the rapid disassembly.



Specification of LED Video Wall :


Indoor P4mm LED screen specification
LED Module Pitch/mm PH4
Module size/mm 128*128
Density of pixel/(dots/m2) 62500
Pixel composition 1R1G1B
Led encapsulation SMD2121 3 IN 1
Resolution of module 60*60
LED Screen Optimum viewing distance 3~20M
View angle H:±160°;V±120°
Average power consumption 600W/sqm
Max power consumption 1600W/sqm
Module quantity 4*4pcs
Size of cabinet/mm 512*512
Resolution of cabinet 128*128
Cabinet Material Iron Cabinet (Aluminum Cabinet optional)
Weight of cabinet 12Kg
Driving method 1/16 scan constant current
Frame frequency / Hz/S ≥60
Refresh frequency / Hz/S 800~2000
Brightness 1200cd/m2
Operating temperature –20C°~60C°
Storage temperature –40C°~70C°
Operation humidity 10%-90%
Storage humidity 10%-90%
IP Rrating (Front/Rear)  IP43
Working vlotage AC220V / AC110V ±10%
Grey scale/color depth displaying colors≥16.7M(synchronized); 14bits
Brightness adjustment 256 levels of each color(manually)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system linsn/Colorlight/Nova(sending card,receiving cards and Hubs)
Average of non-failure life ≥50,00h
Life span ≥100,000h
Functionaless dot rate ≤0.0001
Control distance CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km





Q1. What is refresh rate?

A: The refresh rate is the number of times a display's image is repainted or refreshed per second. As it denotes a frequency of a process, the refresh rate is expressed in hertz. For instance, a refresh rate of 75 Hz means the image is refreshed 75 times in one second.

Q2. What is viewing angle?

A: The Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance.

Q3. What are Pixel Pitch and Pixel Density?

A: The Pixel Pitch is the distance between neighboring pixels. The Pixel Density is the quantity of pixels per square meter.

Q8: What is LED display?

A: The LED display is a new kind of information and communication media, which is composed of the array of LED devices, used to display text, images, videos, TV programs, live broadcast, etc.




Product features of LED Video Wall :


1. High quality LED chip and high anti-static electricity capacity.


2. Large viewing angle and smooth displaying provide excellent visual effect from every angle. High brightness led, the brightness is more than 2000cd/m2, and the wavelength range is ±1.5NM, same batch the LED brightness rate is 1:1.2, 130 wide viewing angle.


Seamless Stage LED Display , Church LED Video Wall With Slim Aluminum Cabinet 0
