|Place of Origin:||Shenzhen, China|
|Certification:||CCC, CE, ROHS|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Flight case, export wooden case|
|Delivery Time:||10-20 working days|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Cabinet Size:||768mm * 768mm||Product Name:||Full Color LED Display|
|Display Function:||Video||Working Voltage:||AC 100 ~ 240V|
indoor advertising boards,
indoor full color led screen
HD Indoor Full Color LED Display SMD Nova Control System Lightweight Cabinet
1. We guaratee all our display, modules, spare parts for TWO years.
2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3. After warranty, we also can offer you the parts for replacement at our bottom price.
4. After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5. We also could solve problems for you antil it recovers well by remote control!
Main features of Full Color LED Display:
1. SMD3 in 1 technology widens the viewing angle greatly and makes the screen's surface even flatter.
2. Flatness tolerance of the whole screen is < 0.15 mm, which thoroughly eliminates the mosaic effect.
3. The screen displays delicate and vivid pictures through synchronous adjustment of color and brightness.
4. High contrast and high refresh rate help the LED display's image be rendered without any delay, and without leaving any kind of streaks or trails.
5. Compatible with a variety of signal source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
6. Professional aviation packaging protects the control equipment extremely well
7. Light, ultra-thin display cabinet's total weight is only 15kg.
8. Standard cabinet size is 768mm*768mm.
9. Dustproof design, the screen is rated IP43.
Product Specifications of Full Color LED Display::
|Full Color LED Display: Parameter||Value|
|Physical Parameter||Pixel Configuration||1R1G1B|
|Pixel Pitch (mm)||4|
|Pixel Matrix per m2 (dots)||62500|
|Pixel Matrix per Module||64*32|
|Pixel Matrix per Panel||192*192|
|Module Dimensions (L*W) / (mm)||256*128|
|Module Quality per Cabinet||3*6|
|Panel Dimension (L*W) / (mm)||768*768|
|Panel Material||Iron / Aluminum|
|Panel Weight (Kg)||15Kg|
|Electronic Parameter||Color Grayscale (Bit)||14|
|Gray Scale per Color (Level)||16384|
|Refresh Rate (Hz)||1280|
|Frame Frequency (Hz)||50/60|
|Signal Transmission Distance (m)||CAT5 cable:<100m；Single mode fiber:<10km|
|Optical Parameter||Brightness (cd/m2)||≥2000|
|Color Temperature (K)||6500-7500|
|Optimal Horizontal Viewing Angle (°)||160|
|Optimal Vertical Viewing Angle||160|
|Electrical Parameter||AC Input Voltage (V)||100~240|
|AC Input Frequency (Hz)||50/60|
|AC Input Power Maximum Value (W/m2)||900|
|AC Input Power Typical Value (W/m2)||300|
|Circumstance Parameter||Storage Temperature (℃)||-40~+60|
|Operating Temperature (℃)||-20~+50|
|Storage Humidity (RH)||10%~90%|
|Operating Humidity (RH)||10%~90%|
|IP Rating (Front / Rear)||IP43 / IP31|
|Lifrtime Typical Value (Hrs)||100,000|
|Installation type||Cabinet Installation Type||Fixed|
|Maximum Number of Panel for Lifting||8|
Features of Full Color LED Display:
1. Aluminum structure: Light weight, excellent cooling effect
2. High definition, and good stability
3. Good color uniformity andhigh contrast ratio with black led lamp
4. Wide viewing angle: 140° on both vertical and Horizontal directions
5. Portable with handle and side locks design on each panel
Adantages of Full Color LED Display:
(1) Front service structure design help to save a lot of time to do maintenance
(2) Four heat dissipation places help to acheive a good cooling effect
(3) With slim body design hich can save a lot of assemble room
(4) Customized cabinet size enable your choice freely.

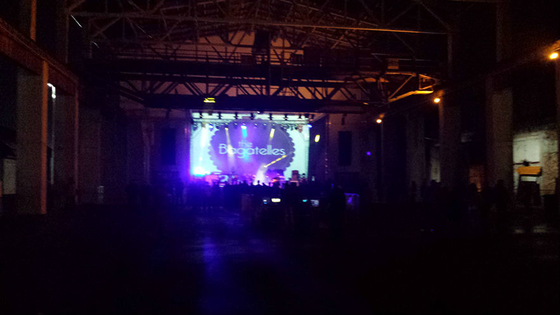

Application of Full Color LED Display:
Indoor HD led display is also called led TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 400 x 300mm, Die-casting aluminum structure with high precision and cooling effect.
