|Place of Origin:||Shenzhen, China|
|Certification:||CCC, CE, ROHS|
|Model Number:||P1.2 P1.56 P1.66 P1.92|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Flight case, export wooden case|
|Delivery Time:||10-20 working days|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Product Name:||Flat Screen Advertising Display||Meterial:||Aluminum|
|Cabinet Size:||480mm * 480mm||Refresh Rate:||3840|
|Display Function:||Video||Working Voltage:||AC 100 ~ 240V|
indoor advertising boards,
indoor full color led screen

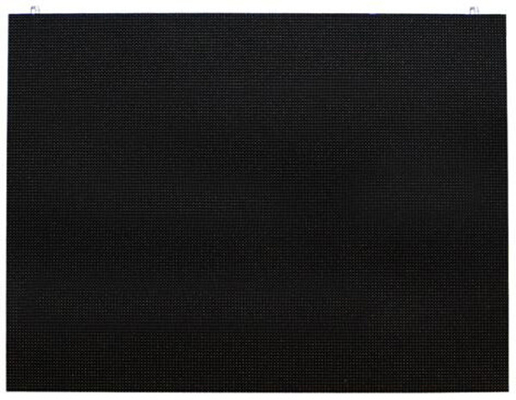

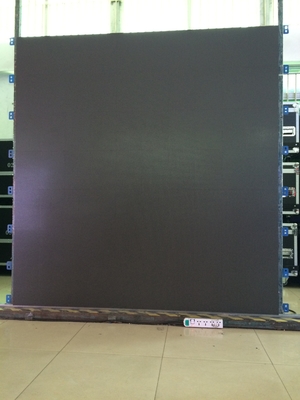

P2.5mm Flat Screen Advertising Display Large Imaging Angle High Definition
1) Reliable quality, advanced and mature technology, compliant with industrial standards and technology developing trend.
2) Good heat emission, water proof and stable performance
3) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting signal

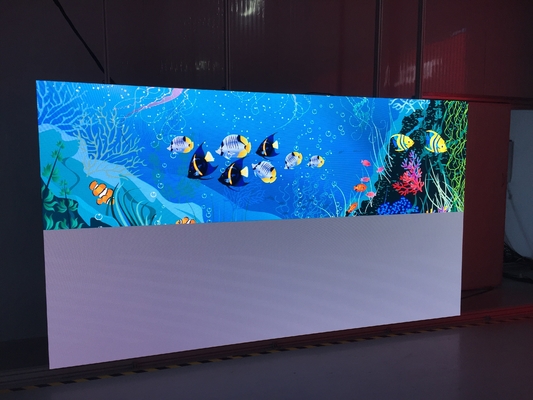

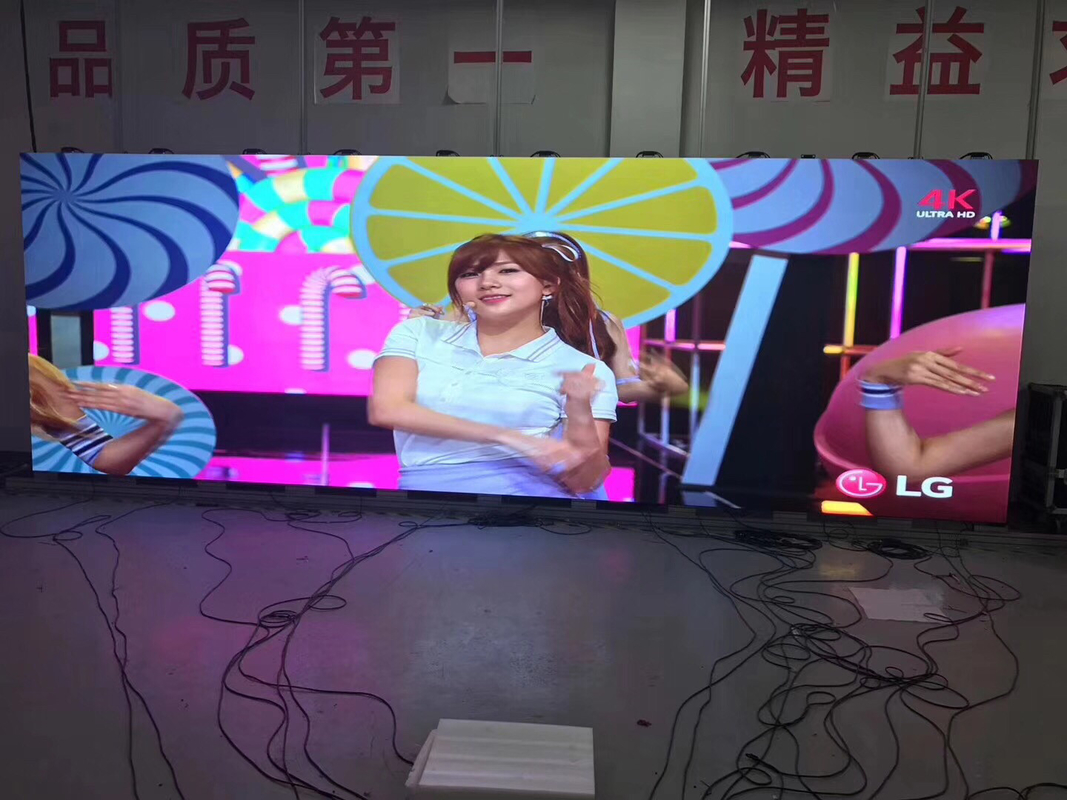

Application of Flat Screen Advertising Display:
Indoor HD led display is also called led TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 480 x 480mm, Die-casting aluminum structure with high precision and cooling effect.
Main features of Flat Screen Advertising Display:
1. SMD3 in 1 technology widens the viewing angle greatly and makes the screen's surface even flatter.
2. Flatness tolerance of the whole screen is < 0.15 mm, which thoroughly eliminates the mosaic effect.
3. The screen displays delicate and vivid pictures through synchronous adjustment of color and brightness.
4. High contrast and high refresh rate help the LED display's image be rendered without any delay, and without leaving any kind of streaks or trails.
5. Compatible with a variety of signal source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
6. Professional aviation packaging protects the control equipment extremely well
7. Light, ultra-thin display cabinet's total weight is only 6kg.
8. Standard cabinet size is 480mm*480mm.
9. Dustproof design, the screen is rated IP43.
Product Specifications of Flat Screen Advertising Display :
|Physical Parameter||Pixel Configuration||1R1G1B|
|Pixel Pitch (mm)||2.5|
|Pixel Matrix per m2 (dots)||160000|
|Pixel Matrix per Module||64*64|
|Pixel Matrix per Panel||192*192|
|Module Dimensions (L*W) / (mm)||160*160|
|Module Quality per Cabinet||3*3|
|Panel Dimension (L*W*H) / (mm)||480*480|
|Panel Material||Iron / Aluminum|
|Panel Weight (Kg)||6|
|Electronic Parameter||Color Grayscale (Bit)||14|
|Gray Scale per Color (Level)||16384|
|Refresh Rate (Hz)||1280|
|Frame Frequency (Hz)||50/60|
|Signal Transmission Distance (m)||CAT5 cable:<100m；Single mode fiber:<10km|
|Optical Parameter||Brightness (cd/m2)||≥1000|
|Color Temperature (K)||6500-7500|
|Optimal Horizontal Viewing Angle (°)||160|
|Optimal Vertical Viewing Angle||160|
|Electrical Parameter||AC Input Voltage (V)||100~240|
|AC Input Frequency (Hz)||50/60|
|AC Input Power Maximum Value (W/m2)||1100|
|AC Input Power Typical Value (W/m2)||400|
|Circumstance Parameter||Storage Temperature (℃)||-40~+60|
|Operating Temperature (℃)||-20~+50|
|Storage Humidity (RH)||10%~90%|
|Operating Humidity (RH)||10%~90%|
|IP Rating (Front / Rear)||IP63 / IP54|
|Lifrtime Typical Value (Hrs)||100,000|
|Installation type||Cabinet Installation Type||Fixed|
|Maximum Number of Panel for Lifting||12|
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8: How can I get technology support?
A: We will train in our factory and send video for showing. The training include system use, system maintenance and equipment protection.
