|Place of Origin:||China|
|Brand Name:||PASSION LED|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||flght case and wooden case|
|Delivery Time:||20~25 working days|
|Payment Terms:||Western Union, MoneyGram, T/T, L/C|
|Supply Ability:||5000 Square meter + per month|
|LED Chip:||Nationstar||Tube Chip Cplor:||Full Color|
led perimeter advertising boards,
stadium perimeter led display

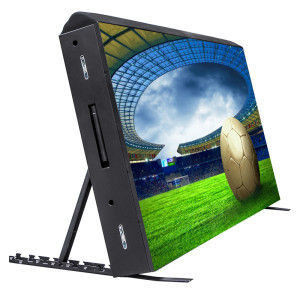

SMD 3 In 1 Perimeter LED Display 281 Billions Color Energy Saving Precise
Stadium perimeter LED display's Advantages:
1. Double data backup: if one data cable doesn’t work, perimeter led display still can work well;
2. Rubber mask: The rubber mask can protect football player and also protect led display itself;

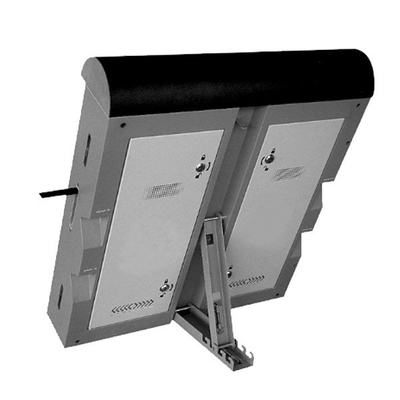

3.Adjustable bracket at the back of cabinet;
4. Good color uniformity, because we use top rate of Led;
5. Energy saving, due to we use high efficiency power supply, top rate of led, etc;
6. Good waterproof protection: Front is IP65 and back is IP54;
7.Foam protector on the top of cabinet can also protect players ;
1. Durable fresh color and High brightness
65536 grey scale and the 281 billions color and more than 1920 HZ refresh rate ensure wonderful video
2. Energy Saving
Adopt high-brightness LED with low consumption and 90% efficiency power supply saving 20% power
3. Stability and reliability
Precise manufacturing process keeps the modules rugged and durable.
1. Outdoor LED Display Technical Parameter
|Module Size||320mm ×320mm|
|Panel Size||960mm × 960mm|
|Panel Resolution(dots)||96 × 96|
|Best Viewing Distance(m)||10-120|
|Avg. Power Consumption(W/m2)||1,000|
|Wavelength||R 620-625 G 520-525 B 470-475|
|Video Frame Rate(Hz)||≥ 60HZ|
|Display Refresh Rate(Hz)||≥ 300HZ|
|Working Voltage||220V±15% OR 110V±15%|
|Video Signal Input||RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION|
|Control System||LINSN or NOVA|
2. Outdoor LED Display Module
|Module Size (W*H)||320mm*320mm||Pixel Configuration||1R1G1B|
|Pixel Pitch||10mm||Resolution (W*H)||32 dots *32dots|
|Pixel Density||10,000 dots/㎡||LED Type||3mm Oval Lamp|
3. Outdoor LED Display Cabinet
|Cabinet Size (W*H)||960mm* 960mm||Module Qty||9pcs|
|Cabinet Resolution (W*H)||96dots *96 dots||Cabinet Pixel||9,216|
|Average Power Consumption||1000w/㎡||Cabinet Material||Iron|
Stadium inside and outside such as football, baseball, basketball match etc.
Q1. What about the delivery lead time?
A: About 22 days after receiving payment.
Q2. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-8 days to arrive. Airline and sea shipping also optional. And you can also designate shipping companies.
Q3. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the solution and places deposits for formal order.
Fourthly We arrange the production.
Q4. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Contact Person: Mr. Peter
Tel: 86 18929461680
