Place of Origin: | China |
Brand Name: | PASSION LED |
Certification: | CE, ROSH |
Model Number: | P7.62 |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | flght case and wooden case |
Delivery Time: | 20~25 working days |
Payment Terms: | Western Union, MoneyGram, T/T, L/C |
Supply Ability: | 5000 Square meter + per month |
Product: | Football Pitch Advertising Boards | Pixel Pitch: | 7.62mm |
---|---|---|---|
LED Chip: | Nationstar | Tube Chip Cplor: | Full Color |
Brightness: | 2000cd/sqm | Display Function: | Video |
High Light: | stadium perimeter led display,led perimeter board |

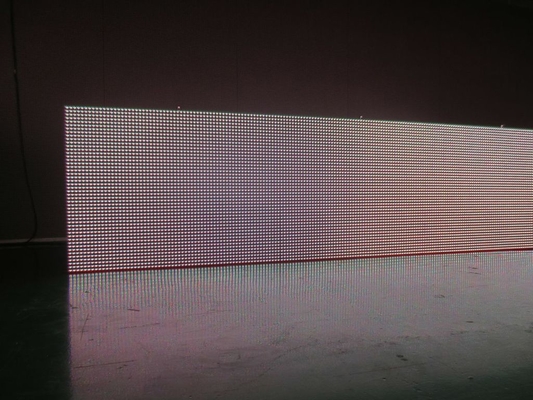

P7.62 Football Pitch Advertising Boards Clear Vivid Image Easy Installation
1. Rubber mask: The rubber mask can protect football player and also protect led display itself;
2. Foam protector on the top of cabinet can also protect players ;
3. Adjustable bracket at the back of cabinet;
4. Good waterproof protection: Front is IP65 and back is IP54;
5. Good color uniformity, because we use top rate of Led;
7. Energy saving, due to we use high efficiency power supply, top rate of led, etc;
8. Double data backup: if one data cable doesn’t work, perimeter led display still can work well;
9. Easy transportation: we will make flight cases with wheels for clients. So it is convenient for transportation. We also can tailor special cart for moving perimeter led display;
9. 7,500nits brightness always available;
Quick Detail:
1. Save maintenance space
2. Clear vivid image quality
3. Easy Installation & Using
4. Convenient servicing
5. Waterproof Level: IP31
FAQ:
Q1. What about the delivery lead time?
A: About 22 days after receiving payment.
Q2. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-8 days to arrive. Airline and sea shipping also optional. And you can also designate shipping companies.
Q3. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the solution and places deposits for formal order.
Fourthly We arrange the production.
Q4. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Specifications
1. Indoor LED Display Technical Parameter
Model No. | PIP-P7.62 |
Pixel Pitch | 7.62mm |
Module Size | 244*122mm |
Module Resolution(pixels) | 32 *16 |
Panel Size | 976mm×732mm |
Panel Resolution(pixels) | 128 ×96 |
Pixel Configuration(RGB) | 1R1G1B |
Pixel Density(pixels/㎡) | 17,222 |
Brightness(cd/㎡) | 1,500 |
Best Viewing Distance(m) | 6-100 |
Avg.Power Consumption(W/㎡) | 600 |
Waterproof Level | IP31 |
Wavelength | R 620-625 G 520-525 B 470-475 |
LED SPEC | 3528 |
Viewing Angle | 140°(H)/140°(V) |
Operating Temperature | –20~60°C |
Video Frame Rate(Hz) | ≥ 60HZ |
Display Refresh Rate(Hz) | ≥ 300HZ |
Grey Level(colors) | 16.7million |
MTBF | ≥50,000 hours |
Lifespan | ≥100,000Hours |
Working Voltage | 220V±15% OR 110V±15% |
Drive Mode | Constant 1/8 |
Graphics Card | DVI Graphics card |
Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
Control System | LINSN |
Software | LED studio 10.0 |
Installation |
Wall mount, hung and stand structure |
2. Indoor LED Display Module
Dimensions (w x h) | 244mmx122mm | Resolution (w x h) | 32 x 16 |
Pixel pitch | 7.62mm | Pixel Density | 17,222/㎡ |
Pixel Configration | 1R1G1B 3 IN 1 | LED Type | SMD 3528 |
3. Indoor LED Display Cabinet
Dimensions(w x h x d)(mm) | 976 x732 x135 | Module Quantity | 24 |
Physical Resolution (w x h) | 128 x 96 | Physical Pixels (total) | 12,288 |
Average Power/sqm (watts) | 600 | Cabinet material | Aluminum |
Applications

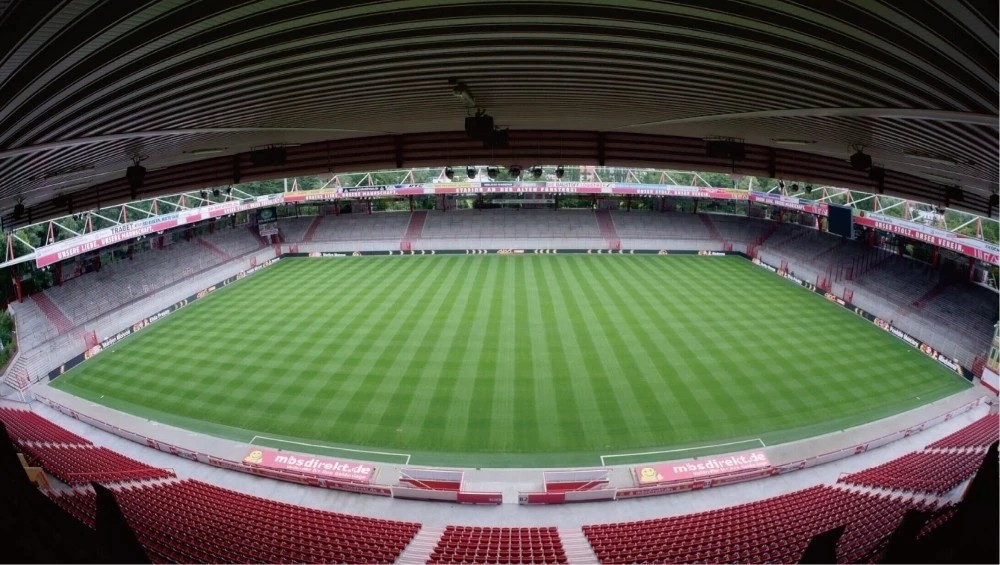

Stadium inside and outside such as football, baseball, basketball match etc.
