PASSION LED LIGHTING INTERNATIONAL LIMITED
 |
| Place of Origin: | Shenzhen, China |
| Brand Name: | PASSION LED |
| Certification: | CE, ROSH |
| Model Number: | P10 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | flight case and wooden case |
| Delivery Time: | 20~25 working days |
| Payment Terms: | Western Union, MoneyGram, T/T, L/C |
| Supply Ability: | 5000 Square meter + per month |
| Usage: | Outdoor | Pixel Pitch: | 10mm |
|---|---|---|---|
| Product Name: | Perimeter Advertising Boards | Tube Chip Cplor: | Full Color |
| Brightness: | 6000cd/sqm | Display Function: | Video |
| High Light: | stadium perimeter led display,led perimeter board |
||

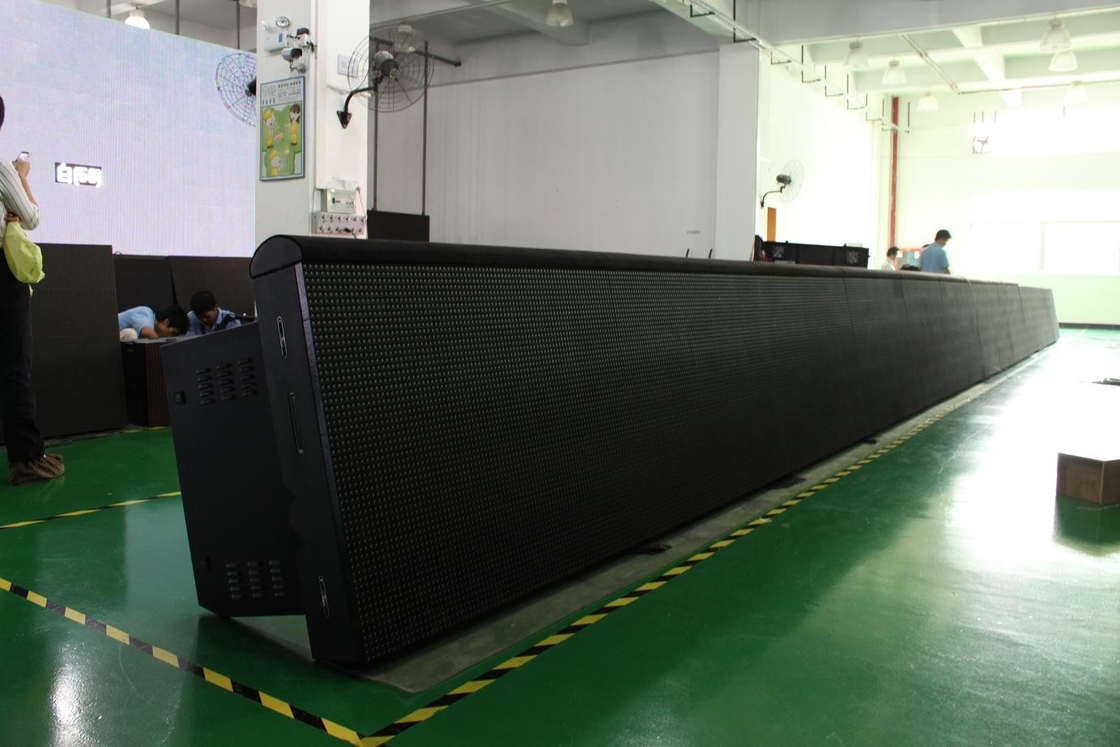

960mm Perimeter Advertising Boards Soft Mask Design Anti Rust Unique Angle Adjustable
Stadium Perimeter Series P10 Outdoor Football LED Display Screen Features:
1. New soft mask design.high refresh and high definition.
2. IP65 waterproof,Which is high performance waterproof,dustproof and anti-rust.
3. It can work well for all kinds of outdoor heavy weather,and also suitable for indoor gymnasiums.

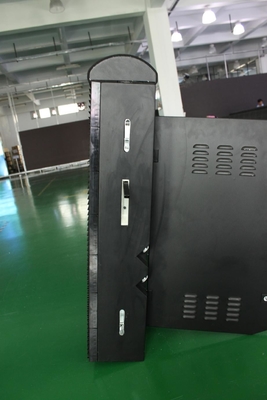

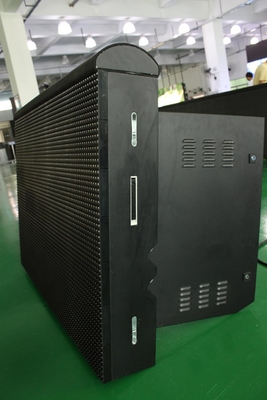

4. The panels adopt unique Angle adjustable design,which can be adjusted different panel's Angle (75°~ 90°)according to the use angel of requirements,let all the audience can see the content of the live broadcast.or installation.
FAQ:
Q1. What about the delivery lead time
A: About 22 days after receiving payment.
Q2. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-8 days to arrive. Airline and sea shipping also optional. And you can also designate shipping companies.
Q3. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the solution and places deposits for formal order.
Fourthly We arrange the production.
Q4. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Specifications:
1. Outdoor LED Display Technical Parameter
| Model No. | POP-P10 |
| Pixel Pitch | 10mm |
| Module Size | 320mm ×320mm |
| Module Resolution(dots) | 32*32 |
| Panel Size | 960mm × 960mm |
| Panel Resolution(dots) | 96 × 96 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(dots/m2) | 10,000 |
| Brightness(cd/m2) | ≥ 6,000 |
| Best Viewing Distance(m) | 10-120 |
| Avg. Power Consumption(W/m2) | 1,000 |
| Drive Mode | 1/4 |
| Wavelength | R 620-625 G 520-525 B 470-475 |
| Viewing Angle | 110°(H)/45°(V) |
| Operating Temperature | –20~60°C |
| Video Frame Rate(Hz) | ≥ 60HZ |
| Display Refresh Rate(Hz) | ≥ 300HZ |
| Grey Level(colors) | 16.7million |
| Lifespan | ≥100,000 hours |
| Working Voltage | 220V±15% OR 110V±15% |
| Video Signal Input | RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION |
| Control System | LINSN or NOVA |
2. Outdoor LED Display Module
| Module Size (W*H) | 320mm*320mm | Pixel Configuration | 1R1G1B |
| Pixel Pitch | 10mm | Resolution (W*H) | 32 dots *32dots |
| Pixel Density | 10,000 dots/㎡ | LED Type | 3mm Oval Lamp |
3. Outdoor LED Display Cabinet
| Cabinet Size (W*H) | 960mm* 960mm | Module Qty | 9pcs |
| Cabinet Resolution (W*H) | 96dots *96 dots | Cabinet Pixel | 9,216 |
| Average Power Consumption | 1000w/㎡ | Cabinet Material | Iron |
Applications
Stadium inside and outside such as football, baseball, basketball match etc.
