Small Pixel Pitch Led Curtain Video Wall , Seamless HD Video Display Aluminum

Small Pixel Pitch Led Curtain Video Wall , Seamless HD Video Display Aluminum

    • Small Pixel Pitch Led Curtain Video Wall , Seamless HD Video Display Aluminum
    • Small Pixel Pitch Led Curtain Video Wall , Seamless HD Video Display Aluminum
    • Small Pixel Pitch Led Curtain Video Wall , Seamless HD Video Display Aluminum
  • Small Pixel Pitch Led Curtain Video Wall , Seamless HD Video Display Aluminum

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: PASSION
    Certification: CCC, CE, ROHS
    Model Number: P2mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 5SQM
    Price: Negotiation
    Packaging Details: Flight case, export wooden case
    Delivery Time: 10-20 working days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1000sqm/month
    Contact Now
    Detailed Product Description

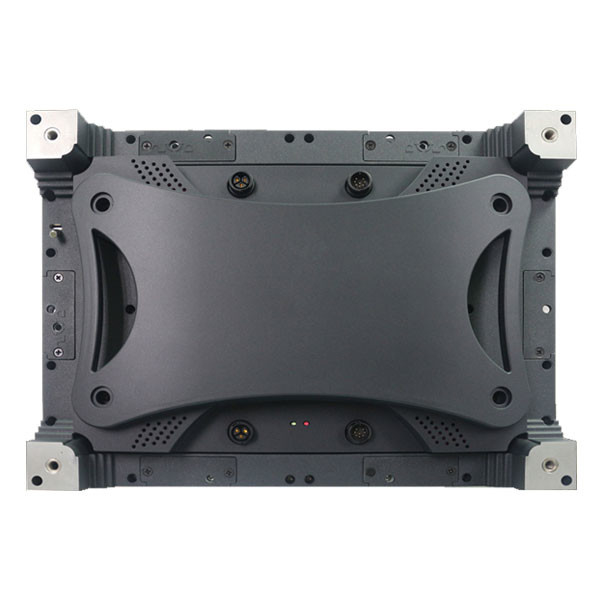

    Cabinet Size: 400mm* 300mm Meterial: Aluminum
    Display Function: Video Working Voltage: AC 100~240V
    Brightness: 800CD/sqm Refresh Rate: 3840Hz

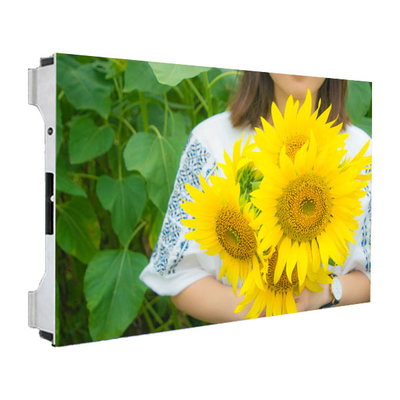

    indoor led video walls with small pixel pitch for HD video display, seamless led video wall




    Application of HD LED screen:
    Indoor HD led display is also called led TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 400 x 300mm, Die-casting aluminum structure with high precision and cooling effect.




    1. Reply enquiries in 24 hours.


    2. Market research and forecast for customer.


    3. Provide professional solutions based on customer's requirement.


    4. Offer sample and all document as customers required.


    5. Other services, such as factory visiting and so on.

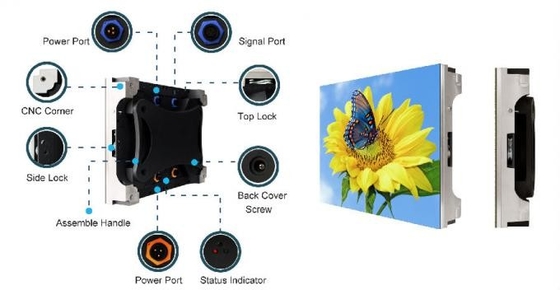

    Main features of PASSION HD LED screen:

    1. SMD3 in 1 technology widens the viewing angle greatly and makes the screen's surface even flatter.
    2. Flatness tolerance of the whole screen is < 0.15 mm, which thoroughly eliminates the mosaic effect.
    3. The screen displays delicate and vivid pictures through synchronous adjustment of color and brightness.
    4. High contrast and high refresh rate help the LED display's image be rendered without any delay, and without leaving any kind of streaks or trails.
    5. Compatible with a variety of signal source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
    6. Professional aviation packaging protects the control equipment extremely well
    7. Light, ultra-thin display cabinet's total weight is only 5kg.
    8. Standard cabinet size is 400mm*300mm.
    9. Dustproof design, the screen is rated IP43.




    Product Specifications:



    Indoor P2mm fixed LED screen specification
    LED Module Pitch/mm PH2.0
    Module size/mm 200*300
    Density of pixel/(dots/m2) 270400
    Pixel composition 1R1G1B
    Led encapsulation SMD1010 3 IN 1
    Resolution of module 100*150
    LED Screen Optimum viewing distance 2~20M
    View angle H:±160°;V±160°
    Average power consumption 220W/sqm
    Max power consumption 790W/sqm
    Module quantity 2*1pcs
    Size of cabinet/mm 400*300
    Resolution of cabinet 200*150
    Cabinet Material Die casting aluminum cabinet
    Weight of cabinet 5Kg
    Driving method 1/30 scan constant current
    Frame frequency / Hz/S ≥60
    Refresh frequency / Hz/S 2000
    Brightness 1200cd/m2
    Operating temperature –10C°~40C°
    Storage temperature –20C°~60C°
    Operation humidity 10%-80%
    Storage humidity 10%-85%
    IP Rrating (Front/Rear) IP43
    Working vlotage AC220V / AC110V ±10%
    Grey scale/color depth displaying colors≥16.7M(synchronized); 14bits
    Brightness adjustment 256 levels of each color(manually)
    Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
    Control system linsn/Colorlight/Nova(sending card,receiving cards and Hubs)
    Average of non-failure life ≥50,00h
    Life span ≥100,000h
    Functionaless dot rate ≤0.0001
    Control distance

    CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km



    Small Pixel Pitch Led Curtain Video Wall , Seamless HD Video Display Aluminum
