PASSION LED LIGHTING INTERNATIONAL LIMITED
 |
| Place of Origin: | Shenzhen, China |
| Brand Name: | PASSION |
| Certification: | CCC, CE, ROHS |
| Model Number: | P2mm |
| Minimum Order Quantity: | 5SQM |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight case, export wooden case |
| Delivery Time: | 10-20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000sqm/month |
| Usage: | Indoor | Meterial: | Aluminum |
|---|---|---|---|
| Cabinet Size: | 400mm * 300mm | IP Rate: | 43 |
| Display Function: | Video | Working Voltage: | AC 100 ~ 240V |
| Brightness: | 800CD/sqm | Refresh Rate: | 3840Hz |
| High Light: | indoor advertising boards,indoor advertising display |
||

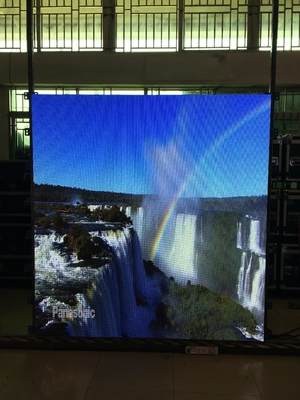

Ultra Thin Flat Screen Advertising Display Dustproof IP43 High Cooling Effect
Features of Flat Screen Advertising Display:
1. Clear picture without flicker and distortion
2. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive
3. Low consumption, stable performance, highly durable
4. High brightness & broad viewing angle, brightness can be adjusted automatically or manually
5. 2 years warranty, easy to install & maintenance
Advantages of Flat Screen Advertising Display
1. High brightness and be adjustable.Built-in functional card support brightness automatically adjustment.
2. A turn-key solution including professional sports software and hardware.
3. Rich advertising LED screen engineering experience both in domestic and oversea market.
4. Megagem product stability through strict quality control system.
5. Price advantage:Best competitive price for Megagem indoor smd led display.
6. Performance advantage:Best quality,high consistency,high refresh rate,best brightness,large viewing angle.
7. Quality advantage:From material to finished product,from design to produce,we control all steps,include the guarantee of the quality and reliability.
8. Service advantage:with professional service team for 24 hours service,better service at same situation.
Main features of of Flat Screen Advertising Display
1. SMD3 in 1 technology widens the viewing angle greatly and makes the screen's surface even flatter.
2. Flatness tolerance of the whole screen is < 0.15 mm, which thoroughly eliminates the mosaic effect.
3. The screen displays delicate and vivid pictures through synchronous adjustment of color and brightness.
4. High contrast and high refresh rate help the LED display's image be rendered without any delay, and without leaving any kind of streaks or trails.
5. Compatible with a variety of signal source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
6. Professional aviation packaging protects the control equipment extremely well
7. Light, ultra-thin display cabinet's total weight is only 5kg.
8. Standard cabinet size is 400mm*300mm.
9. Dustproof design, the screen is rated IP43.

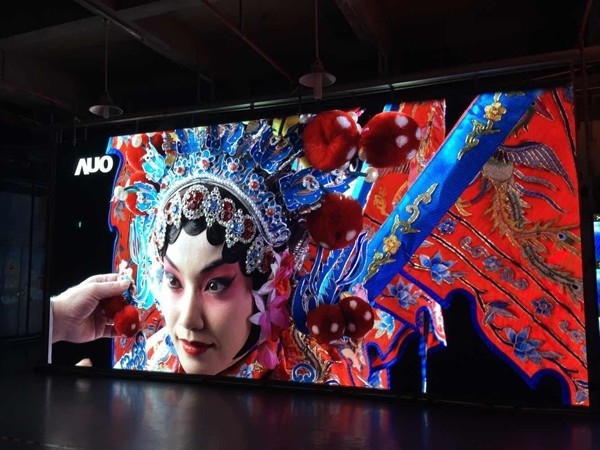

Application of HD LED screen:
Indoor HD led display is also called led TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 400 x 300mm, Die-casting aluminum structure with high precision and cooling effect.
Product Specifications of of Flat Screen Advertising Display:
| Flat Screen Advertising Display | ||
| LED Module | Pitch/mm | PH2.0 |
| Module size/mm | 200*300 | |
| Density of pixel/(dots/m2) | 270400 | |
| Pixel composition | 1R1G1B | |
| Led encapsulation | SMD1010 3 IN 1 | |
| Resolution of module | 100*150 | |
| LED Screen | Optimum viewing distance | 2~20M |
| View angle | H:±160°;V±160° | |
| Average power consumption | 220W/sqm | |
| Max power consumption | 790W/sqm | |
| Module quantity | 2*1pcs | |
| Size of cabinet/mm | 400*300 | |
| Resolution of cabinet | 200*150 | |
| Cabinet Material | Die casting aluminum cabinet | |
| Weight of cabinet | 5Kg | |
| Driving method | 1/30 scan constant current | |
| Frame frequency / Hz/S | ≥60 | |
| Refresh frequency / Hz/S | 2000 | |
| Brightness | 1200cd/m2 | |
| Operating temperature | –10C°～40C° | |
| Storage temperature | –20C°～60C° | |
| Operation humidity | 10%-80% | |
| Storage humidity | 10%-85% | |
| IP Rrating (Front/Rear) | IP43 | |
| Working vlotage | AC220V / AC110V ±10% | |
| Grey scale/color depth | displaying colors≥16.7M(synchronized); 14bits | |
| Brightness adjustment | 256 levels of each color(manually) | |
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | |
| Control system | linsn/Colorlight/Nova(sending card,receiving cards and Hubs) | |
| Average of non-failure life | ≥50,00h | |
| Life span | ≥100,000h | |
| Functionaless dot rate | ≤0.0001 | |
| Control distance | CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km | |
