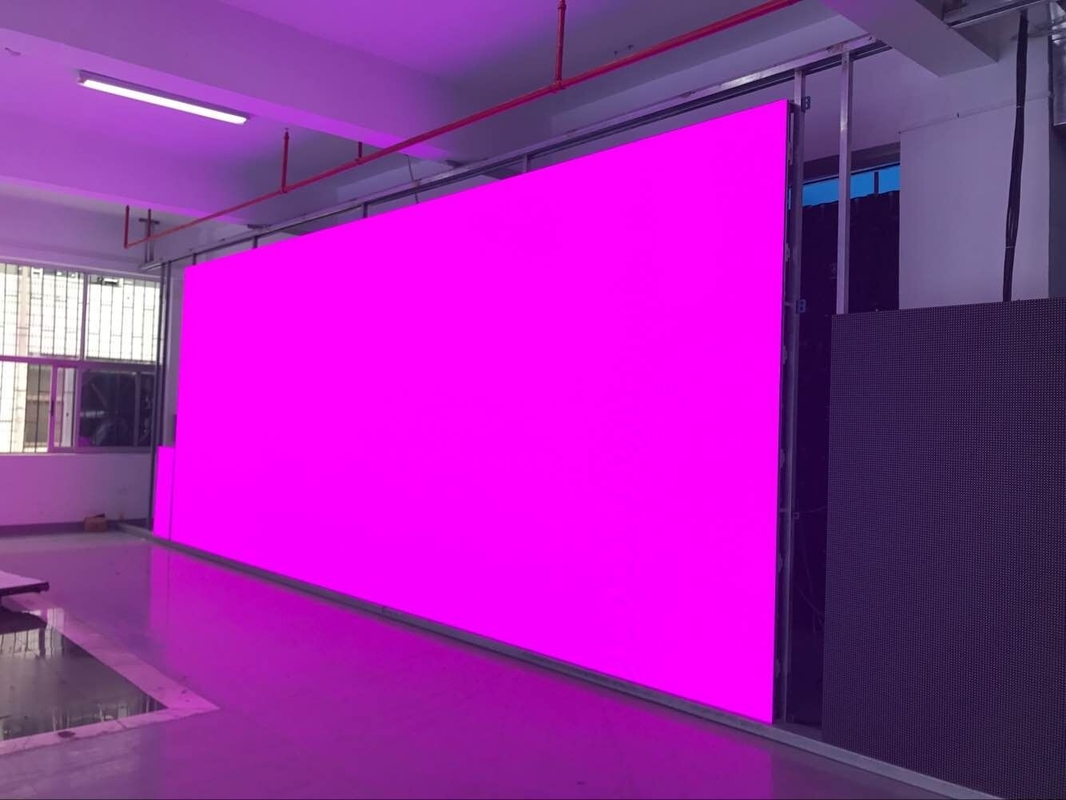

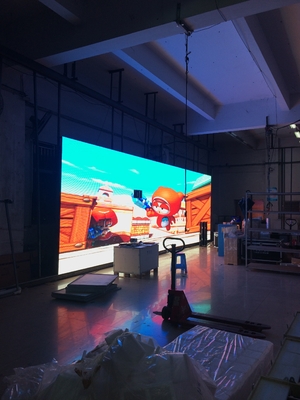

3840Hz Rental LED Display Screen MBI5153 Driving IC Integrated Blanking Circuit

3840Hz Rental LED Display Screen MBI5153 Driving IC Integrated Blanking Circuit

    • 3840Hz Rental LED Display Screen MBI5153 Driving IC Integrated Blanking Circuit
    • 3840Hz Rental LED Display Screen MBI5153 Driving IC Integrated Blanking Circuit
    • 3840Hz Rental LED Display Screen MBI5153 Driving IC Integrated Blanking Circuit
    • 3840Hz Rental LED Display Screen MBI5153 Driving IC Integrated Blanking Circuit
  • 3840Hz Rental LED Display Screen MBI5153 Driving IC Integrated Blanking Circuit

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: PASSION
    Certification: CCC, CE, ROHS
    Model Number: PRO - P4.81

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: flight case; export wooden case
    Delivery Time: 15~25 working days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1000Sqm/month
    Contact Now
    Detailed Product Description
    Pixel Sensity: 43264 Grey Scale: 16Bits
    Module Size: 250mm * 250mm Driving IC: MBI5153
    Cabinet Size: 500mm * 500mm Weight: 28Kg/SQM
    Brightness: 5000CD/sqm Refresh Rate: 3840Hz

    3840Hz Rental LED Display Screen MBI5153 Driving IC Integrated Blanking Circuit





    Special Features of Rental LED Display :



    1. High quality table lamp, the product quality is stable, reliable, and guaranteed;
    2.Viewing angle of 140 degrees or more, multi direction viewing display effect is consistent;
    3. Integrated blanking circuit, effectively eliminate the ghost line;

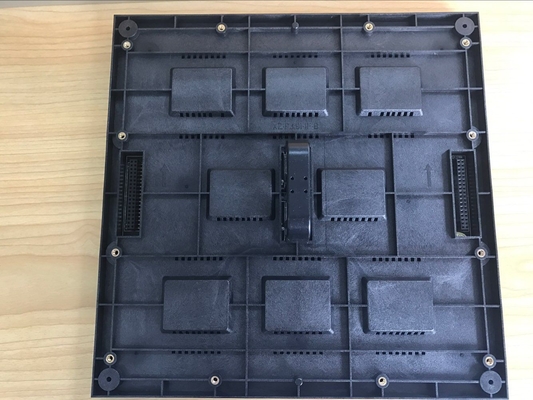

    4. Multi rib structure design, to ensure that the product is not easy to tensile deformation, to ensure the integrity of the screen and the consistency of the overall.

    5. Support All Media Format and Display Mode:

    DVI/HDMI/3G/HD/SD/SDI display mode, applicable for TV program,VCD/DVD and live show.

    Smart mode available (optional) to monitor the overall working hours and temperature of each cabinet.





    Detail Specifications of Rental LED Display:



    Parameter Value
    Physical Parameter Pixel Configuration 1R1G1B
    Pixel Pitch (mm) 4.81
    Pixel Matrix per m2 (dots) 43264
    Pixel Matrix per Module 52*52
    Pixel Matrix per Panel 104*104
    Module Dimensions (L*W) / (mm) 250*250
    Module Quality per Cabinet 2*2
    Panel Dimension (L*W*H) / (mm) 500*500*78

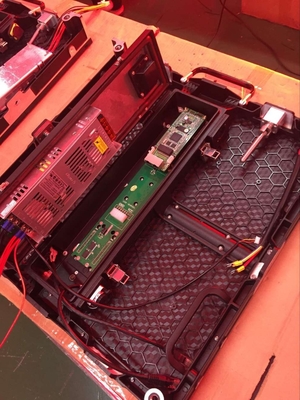

    Panel Material Die-Casting Aluminum
    Panel Weight (Kg) 6.5
    Electronic Parameter Color Grayscale (Bit) 16
    Gray Scale per Color (Level) 65536
    Refresh Rate (Hz) 3840
    Driving Type 1/13
    Frame Frequency (Hz) 50/60
    Signal Transmission Distance (m) CAT5 cable:<100m;Single mode fiber:<10km
    Optical Parameter Brightness (cd/m2) ≥5000
    Color Temperature (K) 6500-7500
    Color Contrast 4000:1
    Optimal Horizontal Viewing Angle (°) 160
    Optimal Vertical Viewing Angle 160
    Electrical Parameter AC Input Voltage (V) 100~240
    AC Input Frequency (Hz) 50/60
    AC Input Power Maximum Value (W/m2) 800
    AC Input Power Typical Value (W/m2) 300
    Circumstance Parameter Storage Temperature (℃) -40~+60
    Operating Temperature (℃) -20~+50
    Storage Humidity (RH) 10%~90%
    Operating Humidity (RH) 10%~90%
    IP Rating (Front / Rear) IP65 / IP63
    Lifrtime Typical Value (Hrs) 100,000
    Installation type Cabinet Installation Type Rental
    Maximum Number of Panel for Lifting 12





    Advantages of Rental LED Display :



    Use of Special heat dissipation structure make excellent heat dissipation, Quiet operation without fans.High refresh/High contrast/High grayscale/ Gorgeous picture showing Ultra-wide viewing angle give you the largest screen viewing area.Die-cast aluminum cabinet design light and easy to transport, good flatness and seamless





    Our services:



    1. Your inquiry about our products or the price will be replied within 8 hours.

    2. We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.

    3. We will delivery goods as you demand , you can choose the cheaper and more convenient way.

    4. Apart from the Indoor Slim Rental LED Display, PASSION LED also offer you All kinds of outdoor LED Display, LED Flexible Display, Indoor LED Display, Indoor/outdoor LED Signs.



    Application

    Advertising LED display , shopping mall LED display for logo showing , bank &stock exchange LED display for rates showing ,train & bus station , airport ,school message board, telecommunication LED Screen system for information showing and instruction , Stage performance and so on .



    3840Hz Rental LED Display Screen MBI5153 Driving IC Integrated Blanking Circuit
