High Definition Advertising Display Screens Lightweight 4.81 Pixel Pitch SMD 3 IN 1

High Definition Advertising Display Screens Lightweight 4.81 Pixel Pitch SMD 3 IN 1

    • High Definition Advertising Display Screens Lightweight 4.81 Pixel Pitch SMD 3 IN 1
    • High Definition Advertising Display Screens Lightweight 4.81 Pixel Pitch SMD 3 IN 1
    • High Definition Advertising Display Screens Lightweight 4.81 Pixel Pitch SMD 3 IN 1
    • High Definition Advertising Display Screens Lightweight 4.81 Pixel Pitch SMD 3 IN 1
  • High Definition Advertising Display Screens Lightweight 4.81 Pixel Pitch SMD 3 IN 1

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: PASSION
    Certification: CCC, CE, ROHS
    Model Number: PR - P3.9 4.8 5.9 6.2

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation

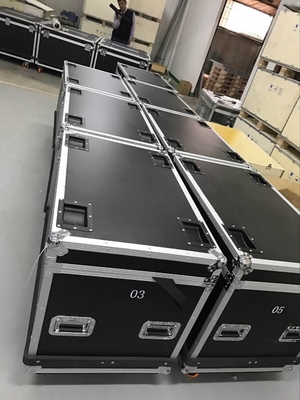

    Packaging Details: flight case; export wooden case
    Delivery Time: 15~25 working days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1000Sqm/month
    Contact Now
    Detailed Product Description
    Other Name: Advertising Display Screens Models: PR - P3.9 4.8 5.9 6.2
    Weight: 26Kg/SQM Working Voltage: AC100V - 240V
    Cabinet Size: 500mm * 500mm 500mm * 1000mm Display Function: Video
    Brightness: 1000CD/sqm Refresh Rate: 3840Hz

    High Definition Advertising Display Screens Lightweight 4.81 Pixel Pitch SMD 3 IN 1




    Main Features of Advertising Display Screens:

    1. Quick Set up & Dismantle.
    2. Lightweight 28kg/sqm and slim 78mm.
    3. High definition impress your events.
    4. High cost-effective compared with 500 * 500mm , 500 * 1000mm cabinet.
    5. Angle adjustment optional max 15degree (positive or negative)


    Detail Specifications of Advertising Display Screens:

    outdoor slim rental P4.81, P5.95, P6.25, P8.928mm models (unit module size: 250mm * 250mm and unit cabinet size: 500mm * 1000mm)
    LED Module Pitch/mm PH4.81 PH5.95 PH6.25 PH8.928
    Module size/mm 250*250 250*250 250*250 250*250
    Density of pixel/(dots/m2) 43264 28224 25600 12544
    Pixel composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B
    Led encapsulation SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1
    Resolution of module 52*52 42*42 40*40 28*28
    LED Screen Optimum viewing distance 3~38M 4~40M 5~45M 7~50M
    View angle H:±160°;V±120° H:±160°;V±120° H:±160°;V±120° H:±160°;V±120°
    Average power consumption 300W/sqm 300W/sqm 300W/sqm 300W/sqm
    Max power consumption 800W/sqm 800W/sqm 800W/sqm 800W/sqm
    Module quantity 2*4pcs
    Size of cabinet/mm 500*1000
    Resolution of cabinet 104*204 84*168 80*160 56*112
    Cabinet Material die-casting aluminum cabinet
    Weight of cabinet 14Kg
    Driving method 1/13 scan constant current 1/7 scan constant current 1/10 scan constant current 1/7 scan constant current
    Frame frequency / Hz/S ≥60
    Refresh frequency/ Hz/S 3840
    Brightness 5000cd/m2 5000cd/m2 5000cd/m2 5000cd/m2
    Operating temperature –25C°~65C°
    Storage temperature –40C°~70C°
    Operation humidity 10%-90%
    Storage humidity 10%-90%
    IP Rrating (Front/Rear) IP65/ IP54
    Working vlotage AC220V / AC110V ±10%
    Grey scale/color depth displaying colors≥16.7M(synchronized); 14bits
    Brightness adjustment 256 levels of each color(manually)
    Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
    Control system linsn/Colorlight/Nova(sending card,receiving cards and Hubs)
    Average of non-failure life ≥50,00h
    Life span ≥100,000h
    Functionaless dot rate ≤0.0001
    Control distance CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km



    FAQ of Advertising Display Screens: :

    How to Select a Led Display

    • Location-indoor,outdoor or semi-outdoor

    Location is the most important factors for selecting the correct LED display.Different type of location such as rooftop,large billboards and stage backdrops or requires front access for servicing will require different led cabinets and modules.


    • Size,Shape and Pitch

    Size:Once you have measured the height, width and depth of the space and availability, then you want to make sure the selected LED size (and number of cabinets, height, width & depth) can be accommodated.
    Shape:determines if curve or column or flat screens are required.
    Pitch:determines the contents of the display and the range of viewing.



    • LED Facing Direction

    Outdoor LEDs facing east or direct west sunlight will require higher lamination than those facing north or south. The larger outdoor billboards and configurations must be equipped with automatic light sensors to automatically adjust brightness in reaction to sunlight and cloud covers.

    • Selecting Your LED Supplier

    A reliable and high quality LED display can introduce your business to your market and clients, changes your message in time to deliver timely information and helps inspire and build your customers trust in your organisation, products and services. Following is a list of key factors to consider;
    Manufacturer and Manufacturer’s qualification and expertise
    Manufacturer’s investment in technology,design and development
    Manufacturer’s commitment to design,manufacturing and support
    Manufacturer’s technology partners
    Qualified and Certified local re-sellers network



    This series products are widely applied to stage show, concert, TV station, Brand presentation, stadium display screen and so on

    High Definition Advertising Display Screens Lightweight 4.81 Pixel Pitch SMD 3 IN 1
