|Place of Origin:||Shenzhen, China|
|Certification:||CCC, CE, ROHS|
|Model Number:||PR - P3.9 4.8 5.9 6.2|
|Minimum Order Quantity:||Negotiation|

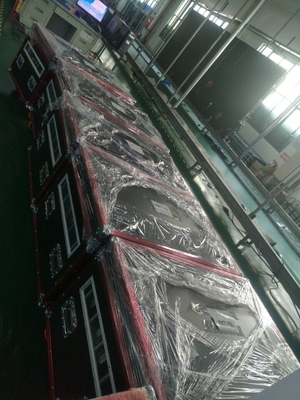

|Packaging Details:||flight case; export wooden case|
|Delivery Time:||15~25 working days|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Name:||Rental LED Display||Cerfication:||CCC, CE, ROHS|
|Weight:||26Kg/SQM||Working Voltage:||AC100V - 240V|
|Cabinet Size:||500mm * 500mm 500mm * 1000mm||Display Function:||Video|
Indoor Outdoor Rental LED Display With 500mm * 500mm Aluminum Die Casting Cabinet
This series products are widely applied to stage show, concert, TV station, Brand presentation, stadium display screen and so on
Features of Rental LED Display
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Detail Specifications of Rental LED Display:
|outdoor slim rental P4.81, P5.95, P6.25, P8.928mm models (unit module size: 250mm * 250mm and unit cabinet size: 500mm * 1000mm)|
|Density of pixel/(dots/m2)||43264||28224||25600||12544|
|Led encapsulation||SMD 3 IN 1||SMD 3 IN 1||SMD 3 IN 1||SMD 3 IN 1|
|Resolution of module||52*52||42*42||40*40||28*28|
|LED Screen||Optimum viewing distance||3~38M||4~40M||5~45M||7~50M|
|Average power consumption||300W/sqm||300W/sqm||300W/sqm||300W/sqm|
|Max power consumption||800W/sqm||800W/sqm||800W/sqm||800W/sqm|
|Size of cabinet/mm||500*1000|
|Resolution of cabinet||104*204||84*168||80*160||56*112|
|Cabinet Material||die-casting aluminum cabinet|
|Weight of cabinet||14Kg|
|Driving method||1/13 scan constant current||1/7 scan constant current||1/10 scan constant current||1/7 scan constant current|
|Frame frequency / Hz/S||≥60|
|Refresh frequency/ Hz/S||3840|
|IP Rrating (Front/Rear)||IP65/ IP54|
|Working vlotage||AC220V / AC110V ±10%|
|Grey scale/color depth||displaying colors≥16.7M(synchronized); 14bits|
|Brightness adjustment||256 levels of each color(manually)|
|Input signal||RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc|
|Control system||linsn/Colorlight/Nova(sending card,receiving cards and Hubs)|
|Average of non-failure life||≥50,00h|
|Functionaless dot rate||≤0.0001|
|Control distance||CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km|
Main Features Rental LED Display :
1. Quick Set up & Dismantle.
2. Lightweight 28kg/sqm and slim 78mm.
3. High definition impress your events.
4. High cost-effective compared with 500 * 500mm , 500 * 1000mm cabinet.
5. Angle adjustment optional max 15degree (positive or negative)
Location is the most important factors for selecting the correct LED display.Different type of location such as rooftop,large billboards and stage backdrops or requires front access for servicing will require different led cabinets and modules.
Size:Once you have measured the height, width and depth of the space and availability, then you want to make sure the selected LED size (and number of cabinets, height, width & depth) can be accommodated.
Shape:determines if curve or column or flat screens are required.
Pitch:determines the contents of the display and the range of viewing.
Outdoor LEDs facing east or direct west sunlight will require higher lamination than those facing north or south. The larger outdoor billboards and configurations must be equipped with automatic light sensors to automatically adjust brightness in reaction to sunlight and cloud covers.
A reliable and high quality LED display can introduce your business to your market and clients, changes your message in time to deliver timely information and helps inspire and build your customers trust in your organisation, products and services. Following is a list of key factors to consider;
Manufacturer and Manufacturer’s qualification and expertise
Manufacturer’s investment in technology,design and development
Manufacturer’s commitment to design,manufacturing and support
Manufacturer’s technology partners
Qualified and Certified local re-sellers network
