Aluminum Perimeter LED Display Full Color Avoid Scratching Epoxy Paint Coated

Aluminum Perimeter LED Display Full Color Avoid Scratching Epoxy Paint Coated

    • Aluminum Perimeter LED Display Full Color Avoid Scratching Epoxy Paint Coated
    • Aluminum Perimeter LED Display Full Color Avoid Scratching Epoxy Paint Coated
    • Aluminum Perimeter LED Display Full Color Avoid Scratching Epoxy Paint Coated
  • Aluminum Perimeter LED Display Full Color Avoid Scratching Epoxy Paint Coated

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: PASSION LED
    Certification: CE, ROSH
    Model Number: P10

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: flght case and wooden case
    Delivery Time: 20~25 working days
    Payment Terms: Western Union, MoneyGram, T/T, L/C
    Supply Ability: 5000 Square meter + per month
    Contact Now
    Detailed Product Description
    Usage: Outdoor Pixel Pitch: 10mm
    LED Brand: Nationstar Tube Chip Cplor: Full Color
    Brightness: 6000cd/sqm Display Function: Video

    Aluminum Perimeter LED Display Full Color Avoid Scratching Epoxy Paint Coated​

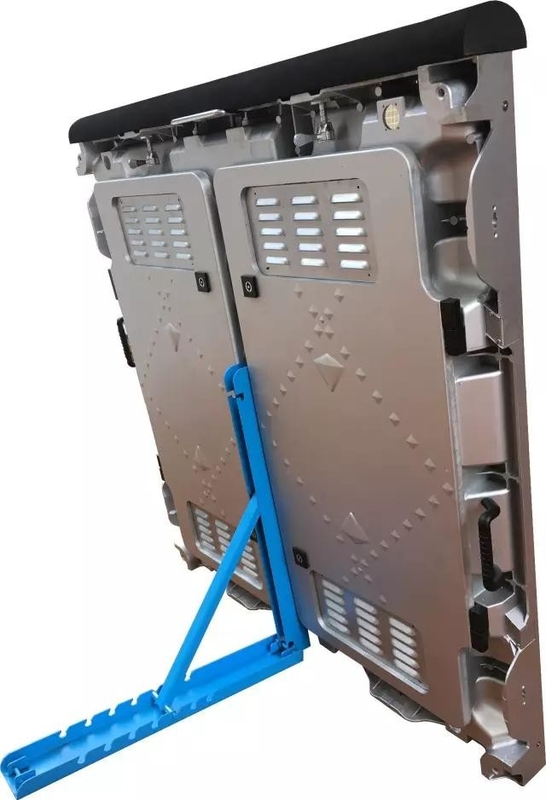

    1. Solid & light;

    The cabinet is made of aluminum die-casting, very strong and light, only 35kg/sqm, while normal iron cabinet is 55kg/sqm;

    2. Unique aluminum module frame, good for heat sink;

    3. Multi-function display;

    The back bracket is removable, means that you can easily take off bracket in 3 seconds, then it turns normal display for fixed installation or rental business;

    4.Easy maintenance;

    Front access module is available, so you can take off module easily;

    5. Pure white color display always available, due to we use top rate Leds;

    6. Different pitch display share one same cabinet frame;

    pitch 2.6mm, 3.2mm, 5.33mm, 6.4mm, 8mm, 10.66mm, 12.8mm, 16mm share one cabinet frame of 1024*768mm, in case in future of update, you only need to change modules, so it helps you save money;

    Product features:



    1. Quick installation & maintenance

    2. Stronger & more accurate cabinet frame

    3. High definition & resolution

    4. Better consistency

    5. High waterproor performance

    6. Soft mask and cover to protect the screen and avoid scratching

    7.Metal power box for better heat dissipation

    8. High cost-effective





    Detail Specifications of the Perimeter LED Display:



    Parameter Unit Value
    Pitch mm 10
    Brightness nits 6000
    Color temperature deg. K 6,500
    Viewing angle deg. 140
    Viewing angle deg. 140
    Panel weight kg 48
    Panel width mm 800
    Panel height mm 800
    Panel depth mm 170
    Panel area sq. m. 0.64
    Panel material   Epoxy paint coated Aluminum
    Panel Mode   Quick Assembly Cabinet with Bracket
    Special Design   Soft Plastic Mask
    Ingress protection (front/rear) IP IP65/IP43
    Operating temperature range deg. C -30 to +60
    Humidity operating RH 10% ~ 90%
    Pixel type and configuration R/G/B 3in1 SMD
    Resolution per panel   80x80





    FAQ:



    Q1. What about the delivery lead time?


    A: About 22 days after receiving payment.





    Q2. How do you ship the goods and how long does it take to arrive?



    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-8 days to arrive. Airline and sea shipping also optional. And you can also designate shipping companies.





    Q3. How to proceed an order?



    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the solution and places deposits for formal order.
    Fourthly We arrange the production.





    Q4. Is it OK to print my logo on the product?



    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.





    Q5. Do you offer guarantee for the products?



    A: Yes, we offer 2 years warranty to our products.





    Our service

    1. Your inquiry related to our products or price will be replied in 8hrs

    2. OEM&ODM, any your customized requirement we can help you to design and put into product

    3. Distributorship are offered for your unique design and some our current models

    4. Protection of your sales area, ideas of design and all your private information

    5. Top quality+Reasonable price+Responsible After Service=Successful & Win

    6. Bakovision can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
