|Place of Origin:||Shenzhen, China|
|Certification:||CCC, CE, ROHS|
|Minimum Order Quantity:||5SQM|
|Packaging Details:||Flight case, export wooden case|
|Delivery Time:||10-20 working days|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Cabinet Size:||400mm * 300mm||Refresh Rate:||3840|
|Display Function:||Video||Working Voltage:||AC 100 ~ 240V|
indoor advertising boards,
indoor full color led screen

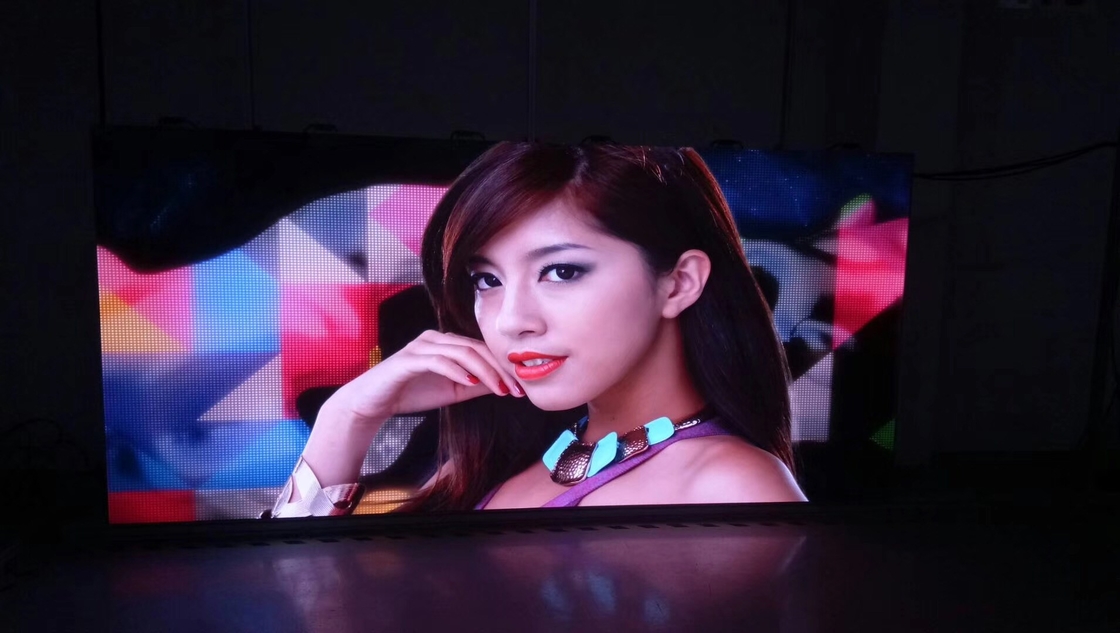

4K Indoor Full Color LED Display , Wall Mounted LED Display Die Casting Aluminum
Application of HD LED screen:
Indoor HD led display is also called led TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 400 x 300mm, Die-casting aluminum structure with high precision and cooling effect.
PASSION LED LIGHTING INTERNATIONAL LIMITED founded in 2009, is a globle leading creative LED display manufacturer and solution provider. The company is committed in developing the lightest and thinnest high-end LED displays such as the latest and best sold products: super slim rental cabinet, die casting slim rental cabinet, soft/flexible curtain screen and the HD (4K) LED screen, all of them are designed for concerts and events and advertisingapplications from all levels of customers. As the undisputed industry pioneer in China, PASSION LED is able to offer a full range of services— from research and development to the manufacturing of custom-made designs in accordance with the customer's vision and specifications. As a result PASSION LED has been propelled into the leading edge of the creative LED industry, providing spectacular displays in the fields of art, culture, sports, show business and live performances.
Main features of PASSION HD LED screen:
1. SMD3 in 1 technology widens the viewing angle greatly and makes the screen's surface even flatter.
2. Flatness tolerance of the whole screen is < 0.15 mm, which thoroughly eliminates the mosaic effect.
3. The screen displays delicate and vivid pictures through synchronous adjustment of color and brightness.
4. High contrast and high refresh rate help the LED display's image be rendered without any delay, and without leaving any kind of streaks or trails.
5. Compatible with a variety of signal source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
6. Professional aviation packaging protects the control equipment extremely well
7. Light, ultra-thin display cabinet's total weight is only 5kg.
8. Standard cabinet size is 400mm*300mm.
9. Dustproof design, the screen is rated IP43.
|Indoor P2mm fixed LED screen specification|
|Density of pixel/(dots/m2)||270400|
|Led encapsulation||SMD1010 3 IN 1|
|Resolution of module||100*150|
|LED Screen||Optimum viewing distance||2~20M|
|Average power consumption||220W/sqm|
|Max power consumption||790W/sqm|

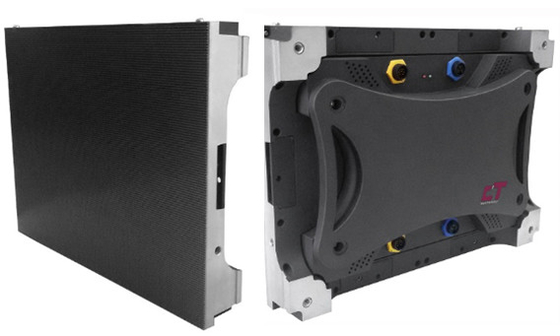

|Size of cabinet/mm||400*300|
|Resolution of cabinet||200*150|
|Cabinet Material||Die casting aluminum cabinet|
|Weight of cabinet||5Kg|
|Driving method||1/30 scan constant current|
|Frame frequency / Hz/S||≥60|
|Refresh frequency / Hz/S||2000|
|IP Rrating (Front/Rear)||IP43|
|Working vlotage||AC220V / AC110V ±10%|
|Grey scale/color depth||displaying colors≥16.7M(synchronized); 14bits|
|Brightness adjustment||256 levels of each color(manually)|
|Input signal||RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc|
|Control system||linsn/Colorlight/Nova(sending card,receiving cards and Hubs)|
|Average of non-failure life||≥50,00h|
|Functionaless dot rate||≤0.0001|
|Control distance||CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km|
