PASSION LED LIGHTING INTERNATIONAL LIMITED

|
| Place of Origin: | Shenzhen, China |
| Brand Name: | PASSION |
| Certification: | CCC, CE, ROHS |
| Model Number: | P4.81, P6.25 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | flight case; export wooden case |
| Delivery Time: | 15~25 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000Sqm/month |
| Product Name: | Rental LED Display | Working Voltage: | AC100V - 240V |
|---|---|---|---|
| Cabinet Size: | 500mm * 500mm , 500mm * 1000mm | Refresh Rate: | 3840Hz |
| Usage: | Outdoor | Application: | Stage,conference,concert,Live Events Led Display,TV Station And So On |
| High Light: | IP63 Stage Background Led Display,1R1G1B Stage Background Led Display,Seamless SDI Led Graphic Display |
||
P4.81mm Rental LED Display , Stage background LED Wall, Slim Rental LED Video Wall
Advantages of Rental LED Display:

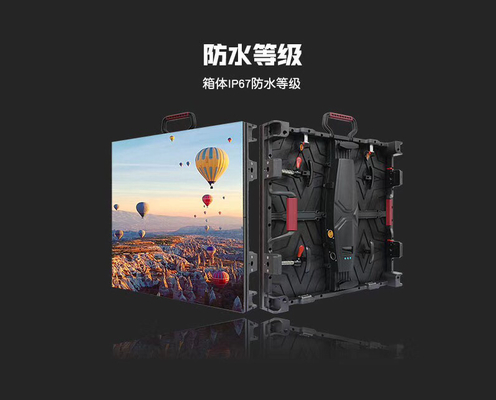

Use of Special heat dissipation structure make excellent heat dissipation, Quiet operation without fans.High refresh/High contrast/High grayscale/ Gorgeous picture showing Ultra-wide viewing angle give you the largest screen viewing area.Die-cast aluminum cabinet design light and easy to transport, good flatness and seamless
Features of Rental LED Display:
1. Seamless Connection and Easy Installation
Cabinet Size: 500mm*500mm.
Seamless connection, 0.1mm gapline between 2 cabinets.
Fast lock for quick and easy installation.
Maximum support 50 pcs hanging in a collum.
2. Support All Media Format and Display Mode
Support all media format, also support DVI/HDMI/3G/HD/SD/SDI display mode, applicable for TV program, VCD/DVD and live show. Smart mode available (optional) to monitor the overall working hours and temperature of each cabinet. Hotplug in power supply.
3. Cost Saving for Installation and Maintenance
Fast locks design, cabinets can be easily assemblied in 7 seconds.
Dual-maintenance, no need fan, noiseless, low power comsumption.
Vertical / Horizontal viewing angle 160 degree.
Calibration for high quality picture.
Special Features of Rental LED Display:
1. High quality table lamp, the product quality is stable, reliable, and guaranteed;
2. Viewing angle of 140 degrees or more, multi direction viewing display effect is consistent;
3. Integrated blanking circuit, effectively eliminate the ghost line;
4. Multi rib structure design, to ensure that the product is not easy to tensile deformation, to ensure the integrity of the screen and the consistency of the overall.
5. Support All Media Format and Display Mode:
DVI/HDMI/3G/HD/SD/SDI display mode, applicable for TV program,VCD/DVD and live show.
Smart mode available (optional) to monitor the overall working hours and temperature of each cabinet.
Detail Specifications of outdoor P4.81mm Slim Rental LED Display:
| Parameter | Value | |
| Physical Parameter | Pixel Configuration | 1R1G1B |
| Pixel Pitch (mm) | 4.81 | |
| Pixel Matrix per m2 (dots) | 43264 | |
| Pixel Matrix per Module | 52*52 | |
| Pixel Matrix per Panel | 104*104 / 104*208 | |
| Module Dimensions (L*W) / (mm) | 250*250 | |
| Module Quality per Cabinet | 2*2 / 2*4 | |
| Panel Dimension (L*W*H) / (mm) | 500*500*78 / 500*1000*78 | |
| Panel Material | Die-Casting Aluminum | |
| Panel Weight (Kg) | 6.5 / 13 | |
| Electronic Parameter | Color Grayscale (Bit) | 16 |
| Gray Scale per Color (Level) | 65536 | |
| Refresh Rate (Hz) | 3840 | |
| Driving Type | 1/13 | |
| Frame Frequency (Hz) | 50/60 | |
| Signal Transmission Distance (m) | CAT5 cable:<100m；Single mode fiber:<10km | |
| Optical Parameter | Brightness (cd/m2) | ≥5000 |
| Color Temperature (K) | 6500-7500 | |
| Color Contrast | 4000:1 | |
| Optimal Horizontal Viewing Angle (°) | 160 | |
| Optimal Vertical Viewing Angle | 160 | |
| Electrical Parameter | AC Input Voltage (V) | 100~240 |
| AC Input Frequency (Hz) | 50/60 | |
| AC Input Power Maximum Value (W/m2) | 800 | |
| AC Input Power Typical Value (W/m2) | 300 | |
| Circumstance Parameter | Storage Temperature (℃) | -40~+60 |
| Operating Temperature (℃) | -20~+50 | |
| Storage Humidity (RH) | 10%~90% | |
| Operating Humidity (RH) | 10%~90% | |
| IP Rating (Front / Rear) | IP65 / IP63 | |
| Lifrtime Typical Value (Hrs) | 100,000 | |
| Installation type | Cabinet Installation Type | Rental |
| Maximum Number of Panel for Lifting | 12 / 6 | |
Our services:
1. Your inquiry about our products or the price will be replied within 8 hours.
2. We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3. We will delivery goods as you demand , you can choose the cheaper and more convenient way.
4. Apart from the Indoor Slim Rental LED Display, PASSION LED also offer you All kinds of outdoor LED Display, LED Flexible Display, Indoor LED Display, Indoor/outdoor LED Signs.
Application
Advertising LED display , shopping mall LED display for logo showing , bank &stock exchange LED display for rates showing ,train & bus station , airport ,school message board, telecommunication LED Screen system for information showing and instruction , Stage performance and so on.
Contact Person: Mr. Peter
Tel: 86 18929461680
Fax: 86-755-82858355
