IP Rate 65 LED Video Panel Rental Noiseless Ghost Canceling High Gray Scale Full Color

IP Rate 65 LED Video Panel Rental Noiseless Ghost Canceling High Gray Scale Full Color

    • IP Rate 65 LED Video Panel Rental Noiseless Ghost Canceling High Gray Scale Full Color
    • IP Rate 65 LED Video Panel Rental Noiseless Ghost Canceling High Gray Scale Full Color
    • IP Rate 65 LED Video Panel Rental Noiseless Ghost Canceling High Gray Scale Full Color
    • IP Rate 65 LED Video Panel Rental Noiseless Ghost Canceling High Gray Scale Full Color
  • IP Rate 65 LED Video Panel Rental Noiseless Ghost Canceling High Gray Scale Full Color

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: PASSION
    Certification: CCC, CE, ROHS
    Model Number: PR - P2.604

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation

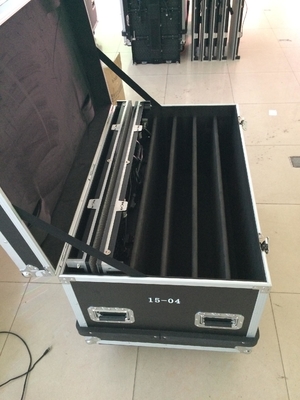

    Packaging Details: flight case; export wooden case
    Delivery Time: 15~25 working days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1000Sqm/month
    Contact Now
    Detailed Product Description
    Usage: Indoor Grey Scale: 16Bits
    IP Rate: 43 Working Voltage: AC100V - 240V
    Cabinet Size: 500mm * 500mm Name: LED Video Panel Rental
    Brightness: 1500CD/sqm Refresh Rate: 3840Hz

    IP Rate 65 LED Video Panel Rental Noiseless Ghost Canceling High Gray Scale Full Color



    This series products are widely applied to stage show, concert, TV station, Brand presentation, stadium display screen and so on



    LED Video Panel Rental Details:



    1. Special PCB design to ensure the video effect and power saving
    2. High Refresh to ensure video playing smootly
    3. Same cabinet size, can be P3.91, P4.81, P6.25

    4. High quality housing, Mask and PCB materials with Anti-UV to enlarge liftetime

    5. Nationstar LED Lamp, ensure the brightness and lifetime



    Main Features:



    1. Quick Set up & Dismantle.

    2. Lightweight 6kg and slim 78mm.

    3. High definition impress your events.

    4. High cost-effective compared with 500X500mm cabinet.

    5. Angle adjustment optional max 15degree (positive or negative)





    Detail Specifications of Indoor P2.604mm Slim Rental LED Display:



    Parameter Value
    Physical Parameter Pixel Configuration 1R1G1B
    Pixel Pitch (mm) 2.604
    Pixel Matrix per m2 (dots) 147456
    Pixel Matrix per Module 96*96
    Pixel Matrix per Panel 192*192
    Module Dimensions (L*W) / (mm) 250*250
    Module Quality per Cabinet 2*2
    Panel Dimension (L*W*H) / (mm) 500*500*78
    Panel Material Die-Casting Aluminum
    Panel Weight (Kg) 7.6
    Electronic Parameter Color Grayscale (Bit) 16
    Gray Scale per Color (Level) 65536
    Refresh Rate (Hz) 1920
    Driving Type 1/32
    Frame Frequency (Hz) 50/60
    Signal Transmission Distance (m) CAT5 cable:<100m;Single mode fiber:<10km
    Optical Parameter Brightness (cd/m2) ≥600
    Color Temperature (K) 6500-7500
    Color Contrast 4000:1
    Optimal Horizontal Viewing Angle (°) 160
    Optimal Vertical Viewing Angle 160
    Electrical Parameter AC Input Voltage (V) 100~240
    AC Input Frequency (Hz) 50/60
    AC Input Power Maximum Value (W/m2) 800
    AC Input Power Typical Value (W/m2) 300
    Circumstance Parameter Storage Temperature (℃) -40~+60
    Operating Temperature (℃) -20~+50
    Storage Humidity (RH) 10%~90%
    Operating Humidity (RH) 10%~90%
    IP Rating (Front / Rear) IP63 / IP54
    Lifrtime Typical Value (Hrs) 100,000
    Installation type Cabinet Installation Type Rental
    Maximum Number of Panel for Lifting 12





    Rental & Stage --- Indoor:



    PASSION LED Slim Rental Series provide an excellent solution to rental client due to its lightweight and slim shape.Fast and simple setup not only saves installation time but also labor cost saving,Its perfect performance on vivid quality absolutely brings an amazing visual feelings to audiences.





    Our services:



    1. Your inquiry about our products or the price will be replied within 8 hours.

    2. We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.

    3. We will delivery goods as you demand , you can choose the cheaper and more convenient way.

    4. Apart from the Indoor Slim Rental LED Display, PASSION LED also offer you All kinds of outdoor LED Display, LED Flexible Display, Indoor LED Display, Indoor/outdoor LED Signs.



    IP Rate 65 LED Video Panel Rental Noiseless Ghost Canceling High Gray Scale Full Color
